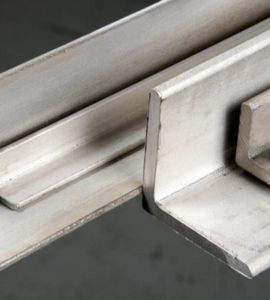

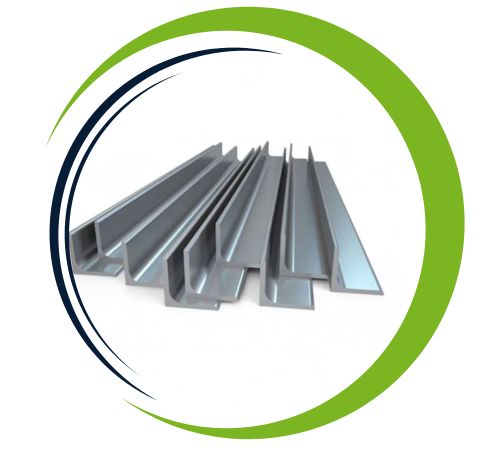

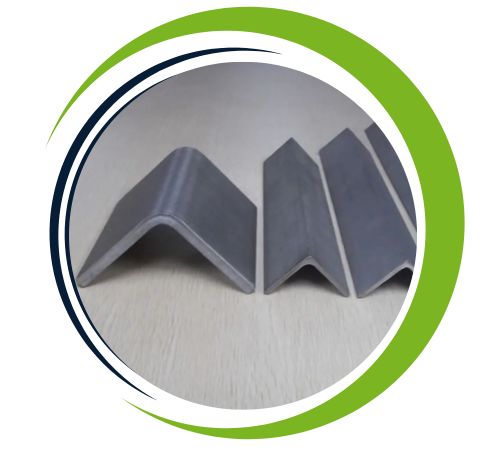

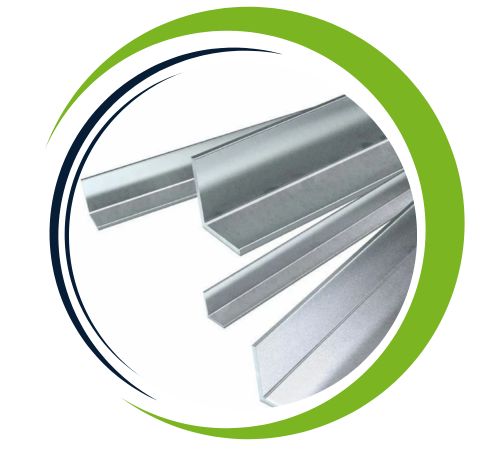

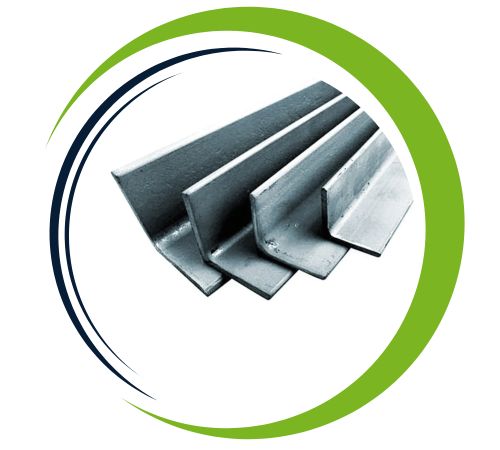

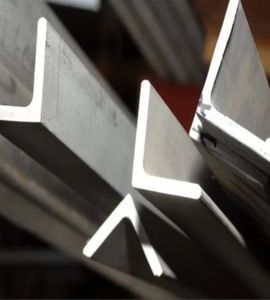

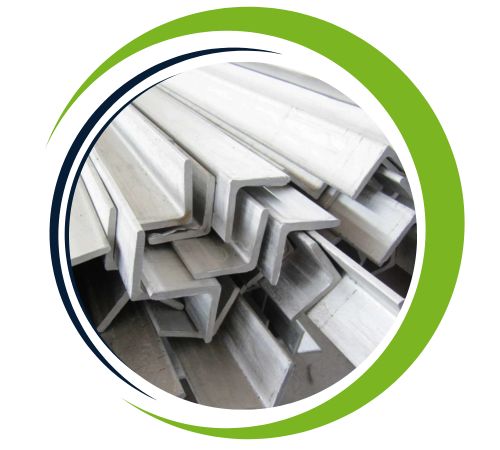

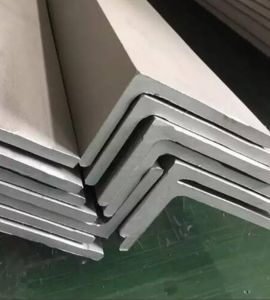

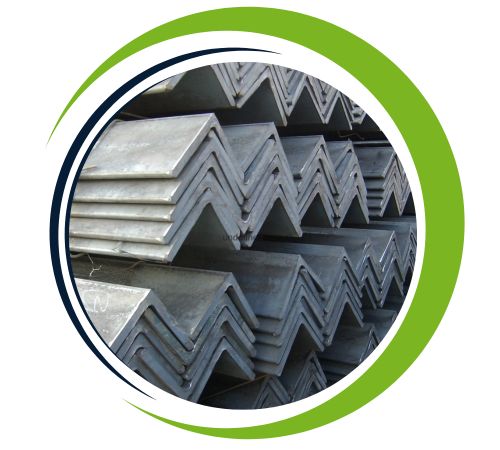

Varun Sheets and Plates is a reliable manufacturer and supplier of Stainless Steel 347H Angles in Dubai, UAE, providing high-quality structural components designed to perform well in high-temperature and corrosion conditions. SS 347H is the high-carbon variant of stainless steel 347, offering improved creep resistance and strength at high temperatures. Varun provides SS 347H angles in different sizes and specifications according to ASTM A276 and A240 standards. These angles are extensively used in petrochemical, thermal processing, power generation, and refinery applications where structural stability, heat resistance, and protection against corrosion are important.
Stainless Steel 347H Angles have 17–20% chromium, 9–13% nickel, and columbium (niobium) and additional carbon content (0.04–0.10%) for enhanced strength at high temperatures. This alloy has a tensile strength of about 515 MPa and a yield strength of about 205 MPa. SS 347H is resistant to intergranular corrosion, oxidation, and scaling in continuous service up to 870°C. It possesses good mechanical properties in thermal stress and can be used in welded and fabricated parts under long-time heat exposure.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 347 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 8xC – 1.10 | 9.0 -13.0 | 63.72 min |
| Grade | Density (kg/m3) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 347 | 8000 | 500 | 720 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 |
| 347H | 8000 | 500 | 720 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | 08Ch18N12B | X6CrNiNb18-10 |
| SS 347H | 1.4961 | S34709 | SUS 347H | – | X6CrNiNb18-12 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 347H angle provides exceptional resistance to high temperature oxidation and corrosion, making it ideal for use in harsh environments, such as chemical processing and electrical equipment Even on its own It maintains and sustains mechanical properties share. Stainless steel 347H is also resistant to intergranular corrosion, ensures durability in high-pressure applications, and is commonly used in applications requiring high-temperature operation and system integrity.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 347H Angles are widely utilized in boiler casings, heat exchangers, high-temperature piping systems, pressure vessels, and refinery furnace components. They play important roles in superheaters, re-heaters, and catalytic crackers in power and petrochemical plants. SS 347H finds application in aerospace and marine exhaust equipment, as well as thermal processing equipment, where mechanical strength and thermal degradation resistance are of prime importance. Such angles are best suited for supporting structures that experience thermal cycling and extended exposure to elevated temperatures, providing durability and structural integrity under the most severe conditions.
