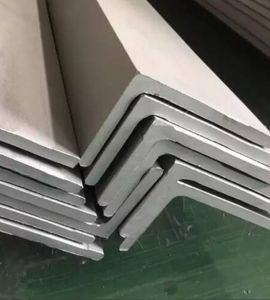

Varun Sheets and Plates is a prominent producer and supplier of high-quality Stainless Steel 309H Angle in Dubai, UAE. Acclaimed for their quality consciousness and customer satisfaction, Varun Sheets and Plates provides long-lasting and high-performance stainless steel products customized for rigorous industrial applications. Their 309H stainless steel angles are made available through cutting-edge manufacturing processes, affording precise size and outstanding structural strength. With widespread distribution channels and specialized technical backup, the company serves various industries, such as construction, power generation, and petrochemicals, and thus has become a name of reliability in the stainless steel sector throughout the UAE and overseas.
Stainless Steel 309H Angle contains a majority of iron, 22–24% chromium, 12–15% nickel, and higher carbon content up to 0.08% to strengthen at high temperatures. It provides minimum tensile strength of 515 MPa, yield strength of 205 MPa, and elongation of 40%, and superior oxidation resistance along with thermal stability. This material is very corrosion- and scaling-resistant at high temperature. The 309H angle has extensive applications in heat treatment equipment and high-temperature structural service owing to its superior mechanical properties along with its strong chemical composition.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 309 | min. | – | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 20.0 | 10.5 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 309 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % | 92 | 201 |
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 309 | S30900 | – | – | 1.4828 | – | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 309H angle provides excellent high heat resistance, making it ideal for hot environments. The high chromium and nickel content provides outstanding oxidation and corrosion resistance, as well as durability under extreme conditions. High carbon content increases its creep strength, making it suitable for long-term exposure to high temperatures. It exhibits excellent weldability and formability, making it easy to manufacture for structural applications. Furthermore, its strong mechanical properties and resistance to heater fatigue make it reliable for industries such as power generation, chemical processing and manufacturing, ensuring longevity and it works well.
Stainless Steel 309H Angles find extensive application in heat exchangers, furnaces, kilns, and incinerators because of their superior resistance to heat and thermal cycling. They are best suited for structural frameworks of refineries, petrochemical plants, and power generation plants. They also find application in marine and offshore engineering, where strength and corrosion resistance are of prime importance. Their high nickel and chromium content provide resistance to oxidation under conditions, and with the carbon addition for creep strength, SS 309H angles find application in boiler and pressure vessel construction as well as other elevated temperature processes.
