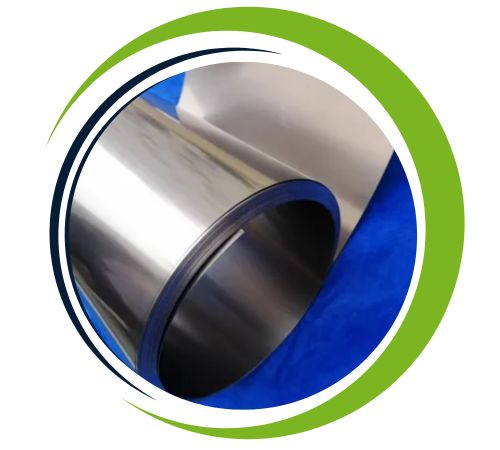

Varun Sheets and Plates is a reputable manufacturer and supplier of high-quality Titanium Grade 5 Foils in Dubai, UAE. We serve diverse industrial requirements with dependable and high-performance titanium products through premium precision engineering and international standards. Our Titanium Grade 5 Foils or Ti-6Al-4V are produced with the latest technology, providing durability, corrosion resistance, and strength. We supply various industry sectors such as aerospace, marine, medical, and chemical processing industries. Customers in the UAE are dependent on Varun for prompt delivery, competitive pricing, and top-class customer services.
Standards : ASTM B265 / ASME SB265
Width : 3.2mm – 1500mm
Form : Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Thickness : 0.1mm to 12 mm Thk
Length : 500mm to 12000mm
Width : 100mm to 3000mm
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7164 / 3.7165 | R56400 |
| Grade | C | Ti | O | Fe | Ai | V |
| Titanium Gr. 5 | 0.25 max | 90 min | 0.2 max | 0.25 max | 6 min | 4 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Titanium Grade 5 Foils (Ti-6Al-4V) consist of around 90% titanium, 6% aluminium, and 4% vanadium. This alpha-beta alloy combines strength, corrosion resistance, and workability in a balanced manner. Major mechanical characteristics encompass a tensile strength of approximately 950 MPa, yield strength of 880 MPa, and 10–15% elongation. The material resists fatigue excellently and tolerates high temperatures well. Its density is approximately 4.43 g/cm³ and has a melting point of roughly 1,660°C, making it suitable for rigorous engineering applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium Grade 5 Foils offer numerous advantages, including exceptional strength-to-weight ratio, making them ideal for lightweight yet durable applications. They exhibit outstanding corrosion resistance, even in harsh environments like seawater and chemicals, ensuring longevity and reliability. Additionally, Grade 5 titanium is highly biocompatible, making it perfect for medical implants and devices. The alloy also maintains high strength at elevated temperatures, offering excellent performance in aerospace and automotive sectors. Its fatigue resistance, low thermal expansion, and resistance to wear and stress make it a versatile and high-performing material for diverse industries.
| Size (mm) | Weight per (Kg) | Size (mm) | Weight per (Kg) |
|---|---|---|---|
| 2000 x 1000 x 2.0 | 32.7 | 2000 x1000 x 0.9 | 14.7 |
| 3000 x 1500 x 1.5 | 55.3 | 2500 x1250 x 0.7 | 17.9 |
| 3000 x 1500 x 2.0 | 73.7 | 2000 x1000 x 1.0 | 16.4 |
| 2500 x 1250 x 1.5 | 38.4 | 2000 x1000 x 0.7 | 11.5 |
| 3000 x 1500 x 3.0 | 112.0 | 2000 x1000 x 1.5 | 24.6 |
| 2500 x 1250 x 2.0 | 51.2 | 2500 x1250 x 0.9 | 23.0 |
| 2000 x 1000 x 2.5 | 40.9 | 2500 x1250 x 1.0 | 25.6 |
| 2500 x 1250 x 2.5 | 63.9 | 3000 x1500 x 1.0 | 36.8 |
| 2500 x 1250 x 3.0 | 77.5 | 3000 x1500 x 1.2 | 44.2 |
| 3000 x 1500 x 2.5 | 92.1 | 2000 x1000 x 1.2 | 19.6 |
| 2000 x 1000 x 3.0 | 49.6 | 2500 x1250 x 1.2 | 30.7 |
Yes, we offer custom sizes for Titanium Grade 5 Foils to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@varunplates.ae
Titanium Grade 5 Foils find extensive application in high-stress and high-performance use because of their superior strength-to-weight ratio and corrosion resistance. In the aerospace sector, they are applied to aircraft skins, engine parts, and structural elements. They are utilized in surgical tools and implants in the medical field because of their biocompatibility. Their seawater corrosion resistance makes them useful for ship construction and offshore components. Moreover, chemical process plants employ these foils in reactors and heat exchangers. Their durability and light weight also recommend them for use in motorsports, defense, and energy industries.
