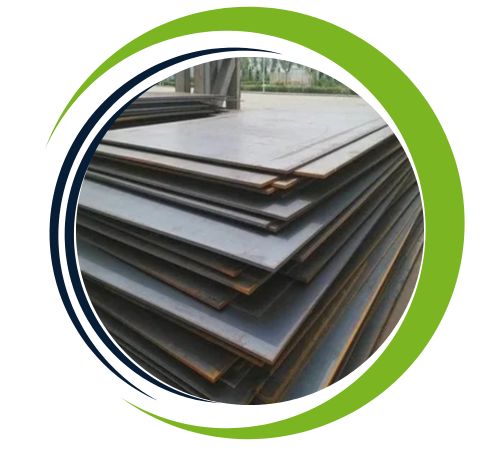

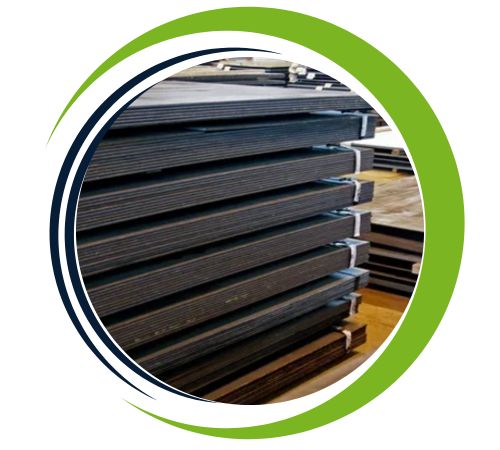

Varun Sheets and Plates stands out as a top-notch manufacturer and supplier of Boiler Quality (BQ) Sheets and Plates in Dubai, UAE. We specialize in high-strength steel products tailored for pressure vessels and high-temperature applications. Our BQ sheets and plates are crafted to meet international standards like ASTM A516 / ASME SA516, DIN 17155, and IS 2002, guaranteeing exceptional reliability, weldability, and mechanical performance even under intense pressure and heat. With options like A516 Gr 60/70, we serve a variety of industries across the UAE and the GCC, including power plants, petrochemicals, refineries, and thermal energy projects, all with precision and consistency.
Boiler Quality Sheets and Plates are crafted from carbon steel alloys, mainly in grades such as ASTM A516 Grade 60/70. Their typical composition includes carbon (≤0.30%), manganese (0.79–1.30%), phosphorus (≤0.035%), and sulfur (≤0.035%). These plates boast impressive mechanical properties, featuring a tensile strength of 485–620 MPa, yield strength of 260–300 MPa, and an elongation of 20% or more, depending on thickness. Engineered for notch toughness and resistance to brittle fracture, BQ plates can endure high pressure and temperature cycles, making them perfect for welding and forming in pressure vessel fabrication.
| Thickness | 3 mm to 200 mm |
| Width | 1250mm to 4000mm |
| Length | Up to 20,000 mm |
| Certification | DUAL CERTIFICATION [SA 516 GR. 60 / 70] TRIPLE CERTIFICATION. [SA 516 GR. 60 / 65 / 70] IBR AND NON IBR |
| Carbon | Manganese | Sulpher maximum | Phosphorus max | Silicon maximum | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 100 MM < t ≤ 200 MM | t < 200 MM | 12.5 MM < t =50 MM | t < 12.5 MM | 50 MM < t ≤ 100 MM | t 12s.5 MM | t < 12.5 MM | ||||
| A516 Gr 55 | 0.24 | 0.26 | 0.2 | 0.18 | 0.22 | 0.55-0.98 | 06-09 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Gr 60 | 0.27 | 0.27 | 0.23 | 0.21 | 0.25 | 0.85-1.2 | 06-09 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Gr 65 | 0.29 | 0.29 | 0.26 | 0.24 | 0.28 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Gr 70 | 0.31 | 0.31 | 0.28 | 0.27 | 0.3 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| Tensile strength (MPa) | Yield strength (MPa) | Tensile strength (ksi) | Elongation in 200 MM(%) | Yield strength (ksi) | Elongation in 50 MM(%) | |
|---|---|---|---|---|---|---|
| A516 Gr 55 | 55-75 | 380-515 | 30 | 205 | 23 | 27 |
| A516 Gr 60 | 60-80 | 415-550 | 32 | 220 | 21 | 25 |
| A516 Gr 65 | 65-85 | 450-585 | 35 | 240 | 19 | 23 |
| A516 Gr 70 | 70-90 | 485-620 | 38 | 260 | 17 | 21 |
| Material # | DIN 17155 | EN 10028-2 | ASTM | BS 1501 | JIS G3115 |
| 1.0425 | HII | P265GH | A 414 Gr. E / A 516 Gr. 60 | 161 Gr. 400 / 164 Gr. 400 / 224 Gr. 400 | |
| 1.0345 | HI | P235GH | A 285 Gr. C-A 414 Gr. C / A 516 Gr. 55 | 161 Gr. 360 / 164 Gr. 360 | SPV 24 |
| 1.0473 | 19 Mn 6 | P355GH | A 414 Gr. G | SPV 36 | |
| 1.7383 | 11CrMo9-10 | ||||
| 1.0481 | 17 Mn 4 | P295GH | A 414 Gr. F / A 516 Gr. 65 | 224 Gr. 490 | SPV 32 |
| 1.7335 | 13CrMo 4 4 | 13CrMo4-5 | A 387 Gr. 12 | 620 Gr. 27 | |
| 1.5415 | 15 Mo 3 | 16Mo3 | A 204 Gr. B | 1503 – 243 B | |
| 1.738 | 10CrMo 9 10 | 10CrMo9-10 | A 387 Gr. 22 | 622 Gr. 31 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Boiler Quality Sheets and Plates offer several advantages, including exceptional strength and durability, making them ideal for high-pressure and high-temperature applications. They are highly resistant to thermal fatigue, corrosion, and oxidation, ensuring a longer service life. These materials are specifically designed for use in boilers, pressure vessels, and heat exchangers, where safety and reliability are paramount. They also provide excellent weldability, formability, and ease of fabrication, making them versatile and dependable for critical applications.
| Size (Length x width) | Thickness mm | Size (Length x width) | Thickness mm | Size (Length x width) | Thickness mm |
|---|---|---|---|---|---|
| 2055 x 12100 | 8 | ||||
| 2500 x 12000 | 3000 x 12000 | ||||
| 2055 x 12000 | 20 | 2500 x 12000 | 3000 x 6000 | 60 | |
| 3000 x 12000 | 3460 x 14000 | 3000 x 6000 | 65 | ||
| 3460 x 14000 | |||||
| 2055 x 12100 | 18 | 2055 x 12100 | 6 | 2055 x 8000 | 50 |
| 3000 x 12000 | 3000 x 12000 | ||||
| 2500 x 12000 | 2500 x 12000 | 3000 x 9000 | |||
| 3460 x 14000 | 3000 x 6000 | 55 | |||
| 4000 x 12000 | 2055 x 12100 | 12.5 | 3000 x 4000 | 90 | |
| 2500 x 12000 | 3460 x 14000 | ||||
| 2055 x 12000 | 25 | 3000 x 12000 | 3000 x 4000 | 100 | |
| 2500 x 12000 | |||||
| 3460 x 14000 | 4000 x 12000 | ||||
| 4000 x 12000 | |||||
| 4000 x 12000 | 2055 x 12100 | 10 | 3000 x 6000 | 70 | |
| 3000 x 12000 | 4000 x 12000 | 3000 x 6000 | 80 | ||
| 2055 x 12100 | 22 | 3000 x 12000 | 3000 x 6000 | 75 | |
| 2500 x 12000 | |||||
| 2500 x 12000 | 3460 x 14000 | ||||
| 3460 x 14000 | |||||
| 2500 x 12000 | 2055 x 12100 | 15 | |||
| 2500 x 10000 | 4000 x 12000 | ||||
| 3000 x 12000 | |||||
| 3000 x 10000 | 2500 x 12000 | ||||
| 2055 x 12000 | 40 | 3460 x 14000 | |||
| 3000 x 10000 | |||||
| 2055 x 12100 | 13 | ||||
| 4000 x 12000 | 3460 x 14000 | ||||
| 2500 x 12000 | 3000 x 12000 | ||||
| 2055 x 12000 | 30 | 2500 x 12000 | |||
| 4000 x 12000 | |||||
| 2055 x 12000 | 35 | ||||
| 2055 x 12100 | 16 | ||||
| 4000 x 12000 | |||||
| 2500 x 10000 | 3000 x 12000 | ||||
| 2055 x 8000 | 45 | 2500 x 12000 | |||
| 3000 x 9000 | 3460 x 14000 |
Boiler Quality Sheets and Plates find extensive use in creating pressure vessels, boilers, heat exchangers, and storage tanks, thanks to their ability to handle high pressure and temperature without warping or failing. They’re commonly found in power plants, thermal and nuclear energy facilities, oil and gas refineries, and chemical processing units, ensuring structural integrity in extreme conditions. Additionally, these plates are utilized in industrial autoclaves, reactors, and marine equipment where pressure and heat resistance are crucial. Varun’s BQ plates are designed to meet the demanding needs of these applications.
