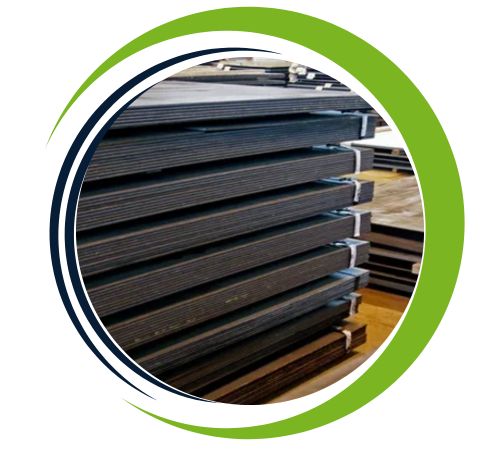

Varun Sheets and Plates stands out as a top-notch manufacturer and supplier of SA516 Gr 60–70 Dual TC Boiler Sheets and Plates, proudly based in Dubai, UAE. We focus on delivering high-quality boiler-grade carbon steel plates complete with Dual TC (Test Certificate), which guarantees traceability and compliance with both Gr 60 and Gr 70 standards. These plates are specifically designed for pressure vessel and boiler applications, offering exceptional notch toughness, durability, and weldability. Our reputation is built on trust within the petrochemical, oil & gas, and power generation sectors, as Varun consistently provides plates that adhere to international standards, featuring precise cutting, finishing, and customizable dimensions to ensure reliable performance in high-pressure and high-temperature settings.
SA516 Gr 60–70 Dual TC Plates are a type of carbon steel pressure vessel plate that cleverly combines the chemical and mechanical properties of both Gr 60 and Gr 70. Typically, these plates contain carbon (0.21–0.28%), manganese (0.85–1.20%), phosphorus (≤0.035%), and sulfur (≤0.035%). Gr 60 plates provide a tensile strength ranging from 415 to 550 MPa, while Gr 70 plates offer a stronger range of 485 to 620 MPa. The yield strength varies from 260 MPa for Gr 60 to 275 MPa for Gr 70. Additionally, these plates are known for their excellent weldability, notch toughness, and impact resistance, making them perfect for high-pressure applications in tough environments.
Grade : ASME SA 516 GR.60 Boiler and Pressure Vessel Steel Plates
Width : 1500mm-3000mm
Thickness : 3mm-600mm
Length : 3000mm-11000mm
Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT
| Grades | C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 60 | 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| 70N | 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Grades | Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 60 | 485-620 (70-90) | 260 (38) | 17 | 21 |
| 70N | 485-620 (70-90) | 260 (38) | 17 | 21 |
| Grades | British Standard | European Norm | ASTM/ASME | DIN |
| 60 | BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
| 70N | BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA516 Gr 60-70 Dual TC Boiler Sheets and Plates offer exceptional strength, durability, and reliability, making them ideal for high-pressure and high-temperature applications. These plates provide excellent weldability and toughness, even in low-temperature conditions, ensuring structural integrity in critical environments. They exhibit superior resistance to corrosion and cracking, enhancing longevity and safety in boiler and pressure vessel operations. Dual test certifications ensure compliance with stringent industry standards, offering versatility across various industries such as oil and gas, power generation, and chemical processing. Their cost-effectiveness further adds to their appeal.
SA516 Gr 60–70 Dual TC Boiler Sheets and Plates are commonly utilized in the fabrication of pressure vessels, particularly because their dual certification offers the flexibility to be used for various grades. These plates are perfect for applications in boilers, heat exchangers, pressure vessels, storage tanks, gas separators, and reactors that operate under high pressure and temperature. Industries such as oil and gas, chemical processing, power generation, and petrochemicals depend on these plates for essential applications that demand reliability and a long service life. Their outstanding toughness at low temperatures and excellent weldability make them ideal for dynamic, high-stress environments where safety and performance are crucial.
