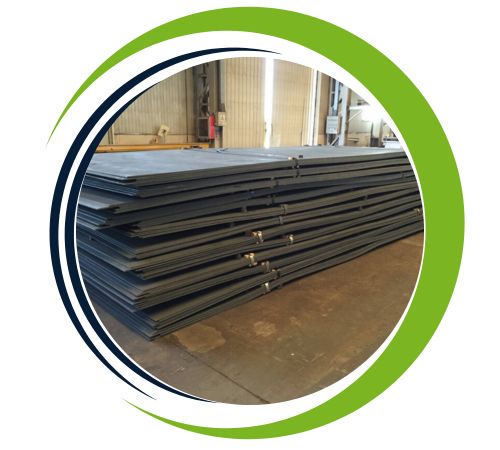

Shipbuilding Steel Sheet and Plate

Varun Sheets and Plates is a top manufacturer and supplier of shipbuilding steel sheets and plates in Dubai, UAE. They provide high-quality steel solutions designed for marine and offshore structures. These plates are recognized for their strength, weldability, and durability in tough marine conditions. They meet international shipbuilding standards, ensuring structural integrity and safety. As a result, many shipyards and marine fabricators prefer Varun as their supplier. With consistent quality, timely deliveries, and technical know-how, Varun Sheets and Plates serves clients across the UAE and global maritime markets effectively.

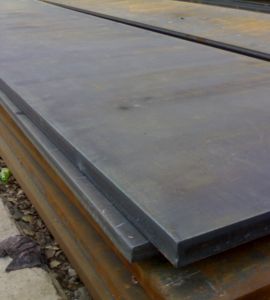

LR Shipbuilding Steel Plate

Grade A Shipbuilding Steel Plate

Ship Steel Sheet

Hot Rolled Shipbuilding 12mm Carbon Plate Manufacturer in Dubai, Shipbuilding Sheet Ah40 Marine Grade Steel Plate Ras Al Khaimah, Hot Rolled EH36 Shipbuilding Steel Sheet Supplier in Dubai, 12mm Black Surface Iron Ship Steel Sheet Exporter in Al Ain, Shipbuilding Steel Plate EH36 Price List in Jebel Ali, ASTM A131 Shipbuilding Steel Plate Distributor in Ras Al Khaimah, LR Shipbuilding Steel Plate and Sheet Supplier in Dubai, HR Shipbuilding Carbon Plate Distributor in UAE, DH36 High Strength Shipbuilding Steel Plates Sizes in mm

Shipbuilding steel sheets and plates are usually made of carbon steel, with controlled levels of manganese, phosphorus, sulfur, and silicon. Common grades include A, B, AH36, DH36, and EH36. They offer tensile strengths between 400 and 620 MPa and yield strengths from 235 to 355 MPa, depending on the grade. These plates provide excellent weldability, impact resistance, and toughness at low temperatures, ensuring safety and durability in harsh marine environments. Their mechanical properties meet strict standards set by classification societies, making them suitable for structural shipbuilding parts.

Shipbuilding Steel Sheet and Plate Specification

Weight	Up to 40 ton
Width	1500-4000
Thickness	4-200 mm
grades	EH36, DH36, AH36, DH32, E32, A40, B, EH32, E36, A36, F40, D40, E, AH40, E40, A, A32, DH40, D36, D, AH32, EH40, D32, and their equivalents
Length	Up to 20000
Delivery condition	quenched and tempered, Hot-rolled, normalised rolled or normalised, thermomechanically rolled

Chemical Composition of Ship Steel Plate

Grade	C%≤	Al %	Mn %	p % ≤	S % ≤	Si %	Nb %	V %
D32 A32 E32	0.18	≥0.015	0.70~1.60 0.90~1.60 0.90~1.60	0.04	0.04	0.10~0.50	—	—
A	0.22	—	≥ 2.5C	0.04	0.40	0.10~0.35	—	—
B	0.21	—	0.60~1.00	0.04	0.40	0.10~0.35	—	—
E	0.18	≥0.015	0.70~1.20	0.04	0.04	0.10~0.35	—
D36 A36 E36	0.18	≥0.015	0.70~1.60 0.90~1.60 0.90~1.60	0.04	0.04	0.10~0.50	0.015~0.050	0.030~0.10
D	0.21	≥0.015	0.60~1.00	0.04	0.04	0.10~0.35	—	—

Shipbuilding Steel Plate Mechanical Properties

Grade	Yieldpoint (Mpa) ≥	Tensile Strength (Mpa)	Elongation （%）≥	cold bend test		Thickness (mm)	V-impact test
				b=5a 120°	b=2a 180°		Temperature （℃）	Average AKV A kv /J
								lengthways	crosswise
								≥
A	235	400~490	22	—	d=2a	≤50 mm	—	—	—
B				d=3a	—		0	27	20
D							-10
E							-40
A32	315	440~590	22	d=3a	—	≤50 mm	0	31	22
D32							-20
E32							-40
A36	355	490~620	21	d=3a	—	≤50 mm	0	34	24
D36							-20
E36							-40

Ship Steel Plate Price in Ajman, LR Shipbuilding Steel Plate Weight Chart, Shipyard Steel Plate Supplier in Jebel Ali, Stockist of Hot Rolled Steel Plate A36 in Al Ain, Ship Steel Sheet Supplier in UAE, Cut Length AH36 Ship Steel Plate Price List in Dubai, Grade A Shipbuilding Steel Plate Supplier in Al Ain, ASTM AH36 High Strength Shipbuilding Steel Plate Exporter in Dubai, ASTM A131 Grade AH36 Shipbuilding Steel Sheets and Plates Exporter in UAE, AH36 Hot Rolled Marine Grade Shipbuilding Steel Plates in Ajman

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Shipbuilding Steel Sheet and Plate Manufacturer and Exporter in Dubai, UAE

Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Ship Steel Plate Size Range

size(mm)						CSA (cm2)	weight (kg/m)
	h	t	r1	b	r	CSA (cm2)	weight (kg/m)
	19	5	4	80	≤1.5	5.41	4.25
	20	6	4	80	≤2	6.21	4.88
	22.5	7	4.5	100	≤2	8.74	6.86
	23.5	8	4.5	100	≤2	9.74	7.65
	23	6	5	120	≤2	9.32	7.32
	24	7				10.52	8.26
	25	8				11.72	9.2
	26	7	5.5	140	≤2	12.43	9.75
	27	8			≤2	13.83	10.85
	29	10			≤3	16.63	13.05
	29	7	6	160	≤2	14.6	11.46
	30	8				16.2	12.72
	31	9				17.8	13.97
	33	11			≤3	21	16.49
	33	8	7	180	≤2	18.86	14.8
	34	9			≤2	20.66	16.22
	35	10			≤3	22.46	17.63
	36	11			≤3	24.26	19.04
	37	9	8	200	≤2	23.66	18.57
	38	10			≤3	25.66	20.14
	39	11				27.66	21.71
	40	12				29.66	23.28
	41	10	9	220	≤3	29.66	22.27
	42	11				29	24.5
	43	12				31.2	26.22
	40	10	10	240	≤3	33.49	25.5
	45	11				34.89	27.39
	46	12				37.29	29.27
	47	10	11	260	≤3	36.11	28.35
	48	11				38.71	30.39
	49	12				41.31	32.43
	51	11	12	280	≤3	42.68	33.5
	52	12				45.48	35.7
	53	13				48.28	37.9
	54	11	13	300	≤3	46.78	36.7
	55	12				49.79	39.09
	56	13				52.79	41.44
	58	12	14	320	≤3	54.25	42.6
	59	13			≤3	57.25	45.09
	60	14			≤4	60.85	47.6
	61	12	15	340	≤3	58.84	46.2
	62	13			≤3	62.24	48.86
	63	14			≤4	65.54	51.5
	66.5	13	16.5	370	≤3	69.7	54.7
	67.5	14			≤4	73.4	57.6
	68.5	15			≤4	77.1	60.5
	72	14	18	400	≤4	81.48	63.96
	73	15				85.48	67.1
	74	16				89.48	70.2
	76.5	14	19.5	430	≤4	89.7	70.6
	77.5	15				94.19	73.9
	79.5	17				102.79	80.7
	81.5	19				111.39	87.4
	82.5	20				115	90.8

Shipbuilding Plate AH36 Dimensional Deviation

nominal thickness（mm）	minus deviation (mm)	The thickness deviation with following width (mm)
nominal thickness（mm）	minus deviation (mm)	> 1500 ~1700	> 1200 ~1500	> 1700 ~1800	> 1000 ~1200	> 1800 ~2000	> 2000 ~2300	> 2300 ~2500	> 2500 ~2600	2600 ~2800	> 2800 ~3000
>12~25 mm	-0.8 mm	+0.3 mm	+0.2 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.8	+1.0	+1.1	+1.2
>25~30 mm	-0.9 mm	+0.3 mm	+0.2 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.9	+1.0	+1.1	+1.2
>30~34 mm	-1.0 mm	+0.3 mm	+0.3 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.9	+1.0	+1.2	+1.3
>34~40 mm	-1.1 mm	+0.5 mm	+0.4 mm	+0.6 mm	+0.3 mm	+0.7 mm	+0.9 mm	+1.0	+1.1	+1.3	+1.4
>40~45 mm	-1.2 mm	+0.6 mm	+0.5 mm	+0.7 mm	+0.4 mm	+0.8 mm	+1.0 mm	+1.1	+1.2	+1.4	+1.

Marine Metal Sheet Grade a AH36 Shipbuilding Steel Plates Distributor in UAE, LR Shipbuilding Steel Plate Supplier in Dubai, 8mm Thickness Hot Rolled Steel Plates for Shipbuilding, CCS LR Grade A Steel Plates Weight Chart, Low DH36 High Strength Shipbuilding Steel Sheet Exporter in Al Ain, Shipbuilding Steel Plate Manufacturer in Dubai, FH36 Grade A Marine Shipbuilding Steel Plates Sizes in mm, Hot Rolled Steel A36 Sheets and Plates Ajman

Shipbuilding Steel Sheet and Plate provide exceptional strength and durability, which is critical to withstanding the harsh elements of the sea. They improve corrosion resistance, extend the life of the container, and reduce maintenance costs. These materials are extremely versatile, contributing to the hull, deck and other important features. With excellent weldability and structural integrity, safety and reliability are ensured under extreme conditions. Additionally, steel plate ships are available in a variety of styles, meeting design and performance requirements. Their low cost and compliance with stringent industry standards makes them indispensable in modern shipbuilding.

Types of Shipbuilding Steel Sheet and Plate

DH40 Marine Grade Ship Steel Plates Dealer in Dubai, CCS LR Grade A Shipbuilding Steel Plates Supplier in Dubai, ASTM A131 Grade AH36 Shipbuilding Steel Sheet and Plates in Ras Al Khaimah, DH36 Shipbuilding Steel Plates Size Chart, AH36 Hot Rolled Marine Grade Shipbuilding Steel Plates Price in Ajman, ASTM A131 High Strength Shipbuilding Steel Plate Stockist in Al Ain, Ship Steel Plate Stockist in Dubai, AH36 Steel Plate Supplier in Al Ain

Are Custom Sizes Available for Shipbuilding Steel Sheet and Plate?

Yes, we offer custom sizes for Shipbuilding Steel Sheet and Plate to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@varunplates.ae

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Shipbuilding Steel Sheet and Plate

These shipbuilding steel sheets and plates are widely used for constructing hulls, decks, bulkheads, and superstructures of commercial vessels, naval ships, and offshore platforms. They are also used for building oil rigs, floating docks, barges, and in ship repair projects. These plates offer the necessary strength, toughness, and corrosion resistance to endure harsh ocean conditions. Their good weldability and formability make them ideal for large-scale fabrication and complex marine structures, ensuring long-term reliability and reduced maintenance in critical maritime applications.
