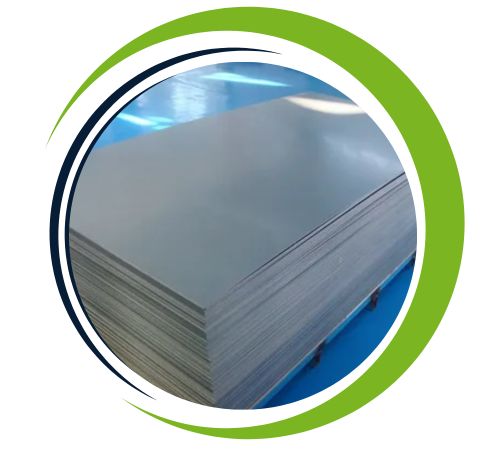

Varun Sheets and Plates stands out as a top manufacturer and supplier of Stainless Steel 409 Sheets and Plates in Dubai, UAE. We pride ourselves on delivering durable and cost-effective stainless solutions tailored for both automotive and industrial applications. Stainless Steel 409 is a ferritic stainless steel celebrated for its impressive resistance to exhaust gas corrosion and its good weldability. Our 409 sheets and plates are crafted to meet international standards, guaranteeing consistent quality, precise dimensions, and reliability. We serve various sectors, including automotive, heat exchanger manufacturing, construction, and fabrication, providing dependable materials designed to withstand high temperatures and resist oxidation.
The composition of our Stainless Steel 409 Sheets and Plates includes about 10.5–11.75% Chromium and a low Carbon content (≤0.08%), along with small amounts of Titanium for stabilization. This blend not only boosts corrosion resistance and high-temperature strength but also enhances weldability. The mechanical properties feature a tensile strength ranging from 380 to 585 MPa, a yield strength of around 170 MPa, and an elongation of about 20%. Notably, 409 is magnetic, offers excellent formability, and is highly resistant to both atmospheric and exhaust-related corrosion, making it perfect for welded and fabricated applications.
| Standards | ASTM A240 / ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 0.01~200mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface Finish | the surface and finish of stainless steel 409 sheet: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |

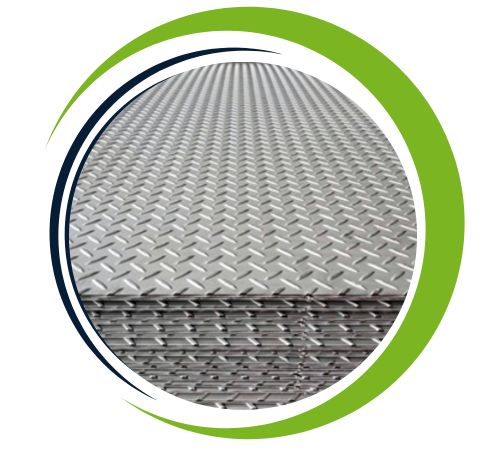

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mg | Ph | Si | Sl | Cr | Ti | Ni |
| 409 min 409 max | – 0.08 | – 1 | – 0.045 | – 1 | – 0.045 | 10.5 11.75 | 6xC – | – 0.5 |
| Density (lb / cu. in.) | Specific Gravity | Specific Heat (Btu/lb/Deg F – [32-212 Deg F]) | Modulus of Elasticity Tension |
| 0.278 | 7.86 | 0.11 | 29 |
| Grade | WERKSTOFF NR. | AISI | UNS | AFNOR | BS | GOST | JIS |
| SS 409 | 1.4512 | 409 | S40900 | Z3CT12 | 409 S 19 | SUH 409 | – |
|
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (μm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nΩ.m) |
|||
|
0-100°C |
0-315°C |
0-538°C |
at 100°C |
at 500°C |
|||||
|
409 |
7800 |
200 |
11.0 |
11.7 |
12.4 |
25.8 |
27.5 |
460 |
600 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 409 sheets and plates have many advantages, including excellent corrosion and oxidation resistance, and the high chromium content provides durability against scratches and scratches, especially in areas where fragile and hot. The material exhibits excellent weldability and formability, making it easy to manufacture for a variety of applications. Balancing strength and cost, stainless steel 409 is ideal for automotive exhaust systems, heat exchangers and furnace components. In addition, it resists thermal fatigue well and is very durable under extreme conditions.
You’ll find Stainless Steel 409 Sheets and Plates commonly used in automotive exhaust systems, catalytic converter shells, mufflers, and tubular manifolds, thanks to their outstanding oxidation and corrosion resistance at elevated temperatures. They’re also utilized in heat exchangers, agricultural equipment, industrial ventilation systems, and structural supports. Their formability, weldability, and cost-effectiveness make them a go-to choice for projects where performance and corrosion resistance take precedence over appearance. In construction and fabrication, 409 sheets and plates are highly regarded for their structural integrity and ability to withstand thermal fatigue in environments with fluctuating temperatures.
