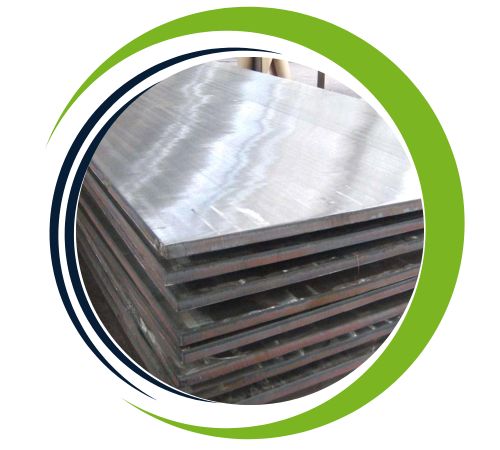

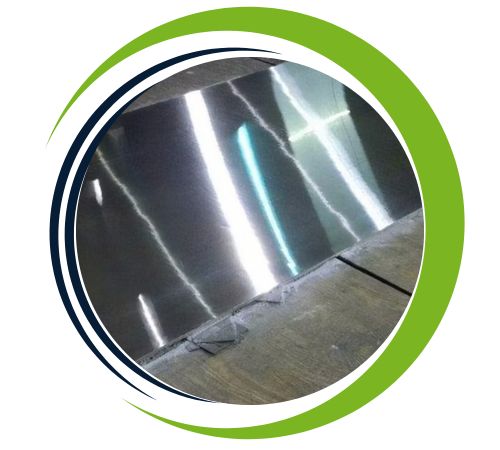

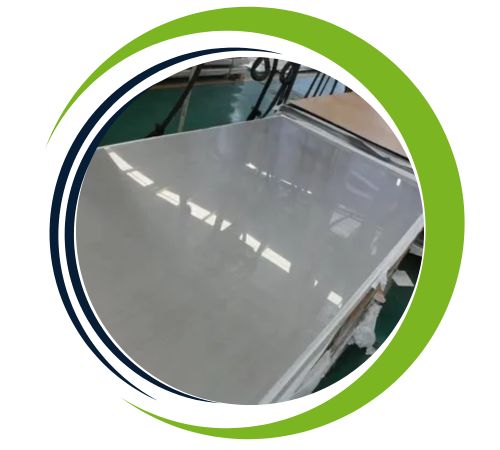

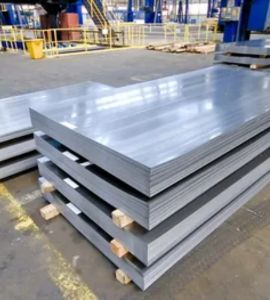

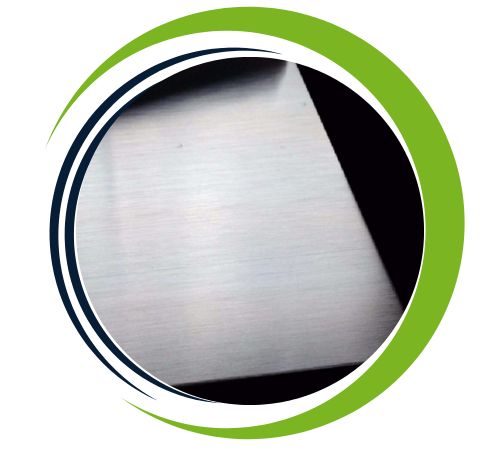

Varun Sheets and Plates stands out as a leading manufacturer and supplier of Stainless Steel 422 Sheets and Plates in Dubai, UAE. We pride ourselves on delivering top-notch products that are specifically designed for high-temperature and high-strength applications. Stainless Steel 422 is a martensitic stainless steel known for its remarkable mechanical properties and resistance to oxidation, making it a perfect choice for turbine and aerospace components. Our sheets and plates are crafted with precision to meet international standards, ensuring exceptional dimensional accuracy and reliable performance. With a strong commitment to quality, durability, and timely delivery, Varun Sheets and Plates caters to clients in the power generation, petrochemical, and engineering sectors.
| Specifications : | ASTM A240 / ASME SA 240 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |
| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |
| Surface Finish : | Plain, Brushed, Cladded |
| Grade | C | P | Si | Ni | V | Fe | Mn | S | Cr | Mo | W | Cu |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS 422 | 0.20-0.25 | 0.040 max | 0.20-0.60 | 0.50-1.0 | 0.17-0.30 | Bal | 1.0 | 0.030 max | 11.0-13.5 | 0.75-1.25 | 0.75-1.25 | 0.50 |
| Material | Condition | 0.2 % Yield Strength (ksi) | Ultimate Tensile Strength (ksi) | % Elongation in 2″ | % Reduction of Area | Hardness HB |
|---|---|---|---|---|---|---|
| SS 422 | Hardened & Tempered (AMS 5655) | 140 | 115 | 13 | 25 | 293-341 |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| SS 422 | 1.4935 | S42200 |
| Density (lb / cu. in.) | 0.287 |
| Specific Gravity | 7.94 |
| Specific Heat (Btu/lb/Deg F – [32-212 Deg F]) | 0.12 |
| Electrical Resistivity (microhm-cm (at 68 Deg F)) | 432 |
| Melting Point (Deg F) | 2590 |
| Modulus of Elasticity Tension | 28 |
| METAL GAUGE | (APPROXIMATE INCHES) | NOMINAL DECIMAL (+/- INCHES) |
|---|---|---|
| 7 | 0.1793 | 0.0080 |
| 8 | 0.1644 | 0.0080 |
| 9 | 0.1495 | 0.0080 |
| 10 | 0.1345 | 0.0070 |
| 11 | 0.1196 | 0.0050 |
| 12 | 0.1046 | 0.0050 |
| 13 | 0.0897 | 0.0050 |
| 14 | 0.0747 | 0.0040 |
| 15 | 0.0673 | 0.0040 |
| 16 | 0.0598 | 0.0030 |
| 17 | 0.0538 | 0.0030 |
| 18 | 0.0478 | 0.0030 |
| 19 | 0.0418 | 0.0030 |
| 20 | 0.0359 | 0.0030 |
| 21 | 0.0329 | 0.0025 |
| 22 | 0.0299 | 0.0020 |
| 23 | 0.0269 | 0.0020 |
| 24 | 0.0239 | 0.0020 |
| 25 | 0.0209 | 0.0015 |
| 26 | 0.0179 | 0.0015 |
| 28 | 0.0149 | 0.0010 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 422 sheets and plates offer many advantages, including excellent increased strength and oxidation resistance, making them ideal for applications in harsh environments such as turbine heat exchangers They provide excellent corrosion resistance , ensure durability under extreme conditions Their high tensile strength and strength enhance the reliability of the structures, while mechanical practicality and ease of manufacture. These sheets and plates remain stable and durable under stress, providing longevity. In addition, the cost-effectiveness and compatibility of heat treatments provides assets tailored to specific industrial applications, resulting in versatile and reliable products.
Stainless Steel 422 Sheets and Plates are extensively utilized in high-temperature and high-stress applications, particularly in the aerospace, power generation, and oil and gas industries. You’ll often find these sheets in turbine components, exhaust systems, compressors, and jet engine parts due to their excellent heat and oxidation resistance. They’re also used in fasteners, structural components, and furnace fixtures. In the petrochemical sector, their strength and resistance to thermal fatigue make them invaluable for reactor and pressure vessel parts. Stainless Steel 422 is favored for its durability, dimensional stability, and outstanding performance in challenging service environments.
