Stainless Steel 15-5 PH Sheet and Plates

Varun Sheets and Plates stands out as a top-notch manufacturer and supplier of Stainless Steel 15-5 PH Sheets and Plates in Dubai, UAE. We take pride in delivering high-quality stainless steel solutions that cater to a variety of industrial sectors. Our focus is on providing materials that are not only high-strength but also corrosion-resistant, specifically designed to meet the rigorous demands of industries like aerospace, petrochemical, marine, and nuclear. The Stainless Steel 15-5 PH is a martensitic, precipitation-hardening alloy that boasts impressive mechanical properties and remarkable toughness. At Varun, we ensure that every sheet and plate adheres to international standards and customer specifications, guaranteeing reliable performance, precision, and durability even in the toughest environments.

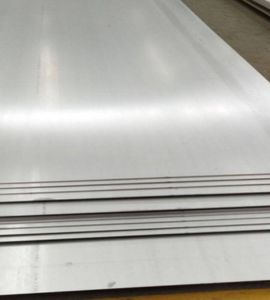

SS 15-5 PH Cold Rolled Plates

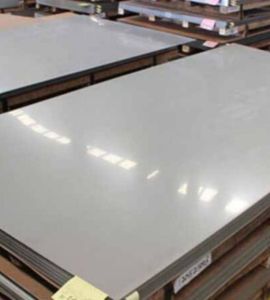

SS 15-5 PH Hot Rolled Plates

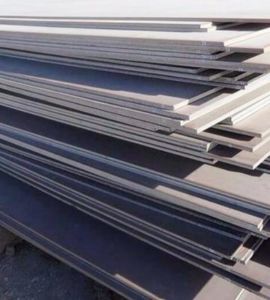

SS 15-5 PH Clad Sheets and Plate

Stainless Steel 15-5 PH Sheets Dealer in Dubai, Stainless Steel 15-5 PH Plates Supplier in Dubai, Stainless Steel UNS S15500 Sheets in Ras Al Khaimah, Stainless Steel Plates Size Chart, Stainless Steel UNS S15500 Sheet Price in Ajman, DIN 1.4545 Stainless Steel Plates Supplier in Jebel Ali, Stainless Steel DIN 1.4545 Sheet Stockist in Al Ain, 15-5 PH SS Sheets and Plates Exporter in UAE, 15-5 PH SS Sheet Stockist in Dubai, Stainless Steel Plates Supplier in Al Ain

The Stainless Steel 15-5 PH Sheets and Plates are crafted from a martensitic precipitation-hardening stainless steel alloy, which contains around 15% chromium and 5% nickel, along with copper and other elements. This material boasts impressive tensile strength (up to 1310 MPa), excellent yield strength, and good ductility. It can be heat-treated to various conditions (like H900, H1025, H1150) to achieve the desired mechanical properties. Additionally, 15-5 PH is highly resistant to stress corrosion cracking and is both weldable and formable, making it ideal for complex industrial applications.

Stainless Steel 15-5 PH Sheet and Plates Specification

SS 15-5PH Sheet Plate Grade	SS 15-5 PH / WNR 1.4545 / UNS S15500
SS 15-5 PH Sheet Plate	ASTM A240 / ASME SA240
Steel 15-5PH Sheet Plate Type	Sheet, Plates, Flat, Coils, Ring, Shim Sheet, Strips, Checkered Plate, Circle, Perforated Sheet, Profile, Blank.
SS 15-5 PH Sheet Plate Size Range	1220mm x 2440mm, 1000 mm x 2000mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1250mm x 2500mm & Cut Pieces
UNS S15500 Steel 15-5PH Plate Finish	SATIN (Met with Plastic Coated), Hot Rolled Plate (HR), Cold Rolled Sheet (CR), 2B, 2D, BA NO(8)
Steel 15-5 PH Sheet Hardness	Hard, Spring Hard, Half Hard, Quarter Hard, Soft, etc.
SS 15-5 PH Sheet Plate Thickness	0.1 MM TO 300 MM
SS 15-5PH Plate & Sheets Surface Finish	Brushed Finish, No.8 Finish, Brush, No.1 Finish, 2D Finish, 2B Finish, Hair Line Finish, Checkered, BA Finish, No.4 Finish, Etching Finish, Mirror Finish, Sand Blast, 8K Finish, Embossed Finish, etc.

Stainless Steel 15-5 PH Sheet and Plates Chemical Composition

Grade	C	Cb+Ta	Cr	Cu	Fe	Mn	Ni	P	S	Si
SS 15-5 PH	0.07 max	0.15-0.45 max	14.0-15.0 max	2.5-4.5 max	Bal	1.0	3.5-5.5	0.04	0.03	1.0

Stainless Steel 15-5 PH Sheet and Plates Mechanical Properties

Grade	Tensile Strength ksi (MPa)	Yield Strength 0.2% ksi (min)	Elongation %	Hardness (Rockwell) MAX
SS 15-5 PH	161,000	140,000	7.6%	C35

Stainless Steel 15-5 PH Sheet and Plates Equivalent Grade

STANDARD	UNS	WNR.
SS 15-5PH	S15500	1.4545

Stainless Steel 15-5 PH Chequered Sheets Distributor in UAE, UNS S15500 Stainless Steel Perforated Plates Supplier in Dubai, DIN 1.4545 Stainless Steel Perforated Sheet Weight Chart, 15-5 PH Stainless Steel Plate Exporter in Al Ain, Stainless Steel 15-5 PH Polished Sheets Manufacturer in Dubai, UNS S15500 Stainless Steel Shim Sheet and Plate Price List in Jebel Ali, UNS S15500 Stainless Steel Chequered Plates Sizes in mm, SS DIN 1.4545 Hot Rolled Plate Distributor in Ras Al Khaimah, 15-5 PH Stainless Steel Sheets and Plates Ajman

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Stainless Steel 15-5 PH Sheet and Plates Manufacturer and Exporter in Dubai, UAE

Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

15-5 PH Stainless Steel Plates Manufacturer in Dubai, 15-5 PH Stainless Steel Plates and Sheets Ras Al Khaimah, DIN 1.4545 Stainless Steel Mirror Finish Plates Supplier in Dubai, DIN 1.4545 Stainless Steel Polished Plates Exporter in Al Ain, UNS S15500 Stainless Steel Chequered Plates Price List in Jebel Ali, Stainless Steel UNS S15500 Cold Rolled Plate Distributor in Ras Al Khaimah, 15-5 PH Stainless Steel Mirror Finished Plates and Sheets Supplier in Dubai, Stainless Steel DIN 1.4545 Sheet and Plate Distributor in UAE, UNS S15500 Stainless Steel Perforated Plate Sizes in mm

Stainless steel 15-5 PH sheets and plates offer many benefits, including high strength, hardness, and corrosion resistance, making them ideal for high-performance applications Their high hardness and fatigue resistance enable them withstand extreme conditions such as high pressure and temperature. The ability to heat-treat the alloy into the desired mechanical properties enhances versatility is included. In addition, a pH of 15-5 exhibits excellent weldability and machinability, making it easy to manufacture. It is commonly used in the aerospace, chemical and marine industries due to its strength balance, corrosion resistance and durability in harsh environments

Size of Stainless Steel 15-5 PH Sheets and Plates

Surface finish	Thickness (mm)	Width (mm)
Stainless Steel 15-5 PH 1D – Hot rolled, heat treated, pickled Plate & Sheet	2.4–12.7	max. 2032
2R – Stainless Steel 15-5 PH Cold-rolled, bright-annealed Sheet & Plate	0.05–1.50	3–649
2H – Stainless Steel 15-5 PH Work hardened Plate & Sheet	0.05–1.50	3–630
2B – Stainless Steel 15-5 PH Cold rolled, heat treated, pickled, skin passed Sheet & Plate	0.25–8.0	max. 2032
2D – Stainless Steel 15-5 PH Cold rolled, heat treated, pickled Plate & Sheet	0.4–6.35	max. 1524
2E – Stainless Steel 15-5 PH Cold rolled, heat treated, mechanically descaled Sheet & Plate	0.4–8.0	max. 2032
2R – Stainless Steel 15-5 PH Cold rolled, bright annealed Plate & Sheet	0.25–3.5	max. 1524
2H – Stainless Steel 15-5 PH Work hardened Sheet & Plate	0.4–6.35	max. 1524
Stainless Steel 15-5 PH Polished, brushed Plate & Sheet	0.5–4.0	max. 1524

Types of Stainless Steel 15-5 PH Sheet and Plates

Stainless Steel 15-5 PH Sheets Price in Ajman, 15-5 PH Stainless Steel Hot Rolled Weight Chart, UNS S15500 Stainless Steel Cold Rolled Supplier in Jebel Ali, Stockist of SS UNS S15500 Cold Rolled Sheets in Al Ain, DIN 1.4545 Stainless Steel Perforated Sheet Supplier in UAE, Stainless Steel DIN 1.4545 Perforated Plates Price List in Dubai, 15-5 PH SS Perforated Plates Supplier in Al Ain, Stainless Steel 15-5 PH Chequered Plates Exporter in Dubai, UNS S15500 Stainless Steel Polished Plates Exporter in UAE, Stainless Steel UNS S15500 Perforated Plates Exporter in Ras Al Khaimah, DIN 1.4545 Stainless Steel Sheet and Plate in Ajman

Are Custom Sizes Available For Stainless Steel 15-5 PH Sheet and Plates?

Yes, we offer custom sizes for Stainless Steel 15-5 PH Sheet and Plates to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@varunplates.ae

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Physical Properties of 15-5 PH Sheets and Plates

Density	Electrical conductivity (% IACS)	Thermal conductivity (BTU-in/hr-ft²-°F)	Specific heat capacity	Thermal expansion (1/°F)	Melting Point (°F)
0.282	1.72	97	0.11	0.00000589	2560

Dimensions of Stainless Steel 15-5 PH Sheets and Plates

Material	Size	Thickness
PLATES / SHEETS	1000 mm x 2000 mm	0.1mm To 100 mm Thickness
	1220 mm x 2440 mm (4′ x 8′)
	1250 mm x 2500 mm
	1500 mm x 3000 mm
	2000 mm x 4000 mm
	2000 mm x 2000 mm

Application Industry of Stainless Steel 15-5 PH Sheet and Plates

These Stainless Steel 15-5 PH Sheets and Plates find their place in a range of high-performance industries. In aerospace, they are utilized for structural components, landing gear parts, and fasteners, thanks to their high strength-to-weight ratio. In the marine and chemical sectors, they are essential for pump shafts, valves, and fittings where corrosion resistance is crucial. They also play a vital role in nuclear and food processing equipment, where both strength and hygiene are paramount. The alloy’s ability to maintain performance under pressure makes it a preferred choice for precision-machined and stress-bearing parts.
