Varun Sheets and Plates stands out as a leading manufacturer and supplier of Stainless Steel 316Ti Sheets and Plates in Dubai, UAE. We pride ourselves on providing top-notch materials that are specifically designed to withstand high temperatures and corrosive environments. Stainless Steel 316Ti is a titanium-stabilized variant of 316, which significantly boosts its resistance to intergranular corrosion, especially after welding or when exposed to elevated temperatures. Our 316Ti sheets and plates are meticulously crafted to meet the rigorous demands of industrial applications, ensuring they offer excellent weldability, strength, and long-lasting performance. We supply SS 316Ti to various sectors, including chemical processing, food manufacturing, power generation, and pharmaceuticals, all while maintaining consistent quality and adhering to global standards.
The composition of Stainless Steel 316Ti Sheets and Plates includes 16–18% Chromium, 10–14% Nickel, and 2–3% Molybdenum, along with Titanium that can be up to five times the carbon content (usually around 0.5%). This addition of titanium enhances the material’s stability at high temperatures and its resistance to corrosion. The alloy boasts a tensile strength ranging from 515 to 750 MPa, a yield strength of 205 MPa, and an elongation of about 40%. In its annealed state, SS 316Ti is non-magnetic and retains its strength, ductility, and resistance to sensitization, making it an excellent choice for welded or heat-exposed components.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

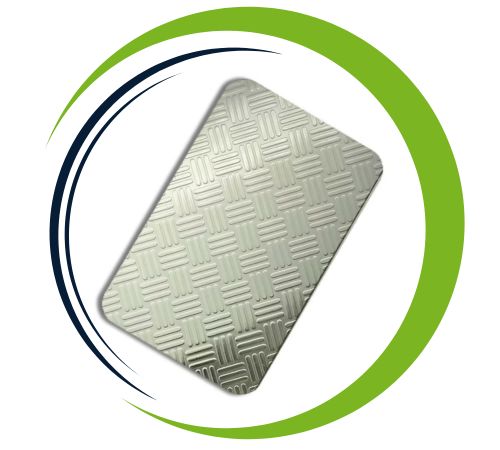

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

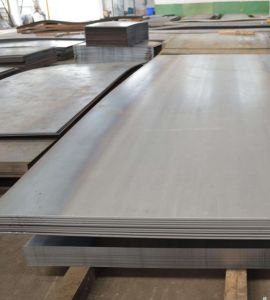

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

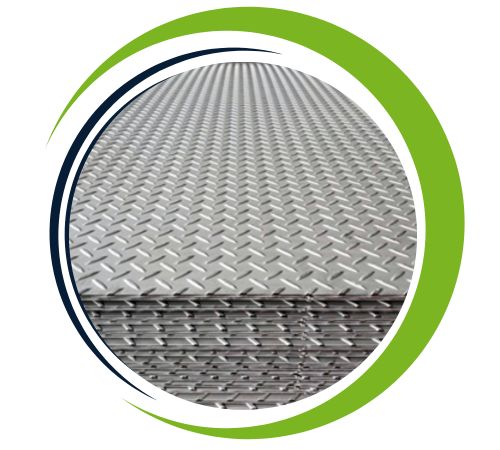

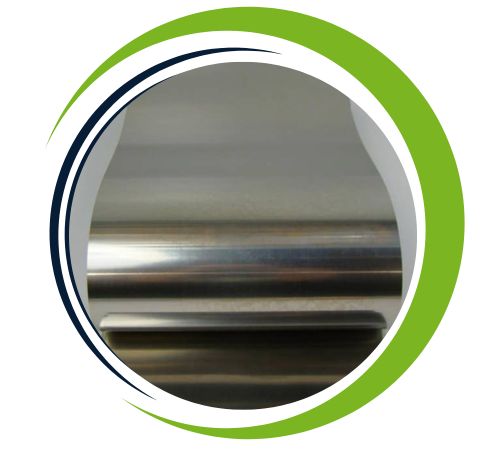

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316Ti sheets and plates offer exceptional advantages, including resistance to pitting, crack corrosion and excellent intergranular corrosion even at elevated temperatures The addition of titanium ensures stability against carbide precipitation, making it more difficult in rough environments. These sheets are strong, have excellent high-temperature strength and mechanical performance, making them ideal for complex applications. They resist oxidation and scaling, providing durability in marine, chemical and industrial applications. In addition, they are easy to manufacture, weld and maintain, providing cost effective and reliable for structural and process equipment applications.
Stainless Steel 316Ti Sheets and Plates are extensively utilized in industries that require materials resistant to corrosive chemicals and capable of operating at high temperatures. Typical applications include heat exchangers, flue gas scrubbers, food processing equipment, pressure vessels, and chemical tanks. The titanium stabilization feature allows the material to resist intergranular corrosion post-welding, which is vital in environments with high pressure and heat. Additionally, SS 316Ti is a popular choice in marine settings and pharmaceutical equipment due to its cleanliness, durability, and low maintenance requirements. Its thermal stability makes it perfect for long-term use in elevated temperature conditions.
