Varun Sheets and Plates is a reliable manufacturer and supplier of Stainless Steel 316L Sheets and Plates based in Dubai, UAE. We pride ourselves on providing top-notch stainless steel products designed for corrosion resistance and hygiene. Stainless Steel 316L is a low-carbon variant of 316, celebrated for its outstanding resistance to chlorides, acidic conditions, and intergranular corrosion. Our SS 316L sheets and plates are crafted under rigorous quality standards to guarantee their reliability, strength, and formability. We cater to various industries, including marine, pharmaceutical, food processing, and chemical handling, delivering high-performance solutions that meet the demands of challenging environments and structural needs.
The composition of Stainless Steel 316L Sheets and Plates includes 16–18% Chromium, 10–14% Nickel, 2–3% Molybdenum, and a maximum of 0.03% Carbon. This low carbon content boosts corrosion resistance, particularly after welding, while Molybdenum enhances pitting resistance in chloride-heavy settings. The mechanical properties feature a tensile strength ranging from 485 to 620 MPa, a yield strength of about 170 MPa, and an elongation of 40%. SS 316L is non-magnetic in its annealed state and offers excellent toughness, formability, and weldability, making it perfect for a variety of demanding applications.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

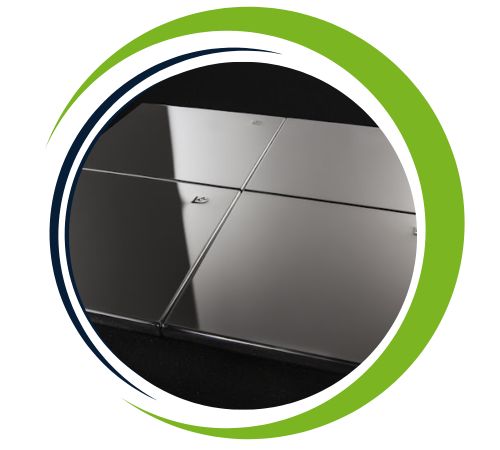

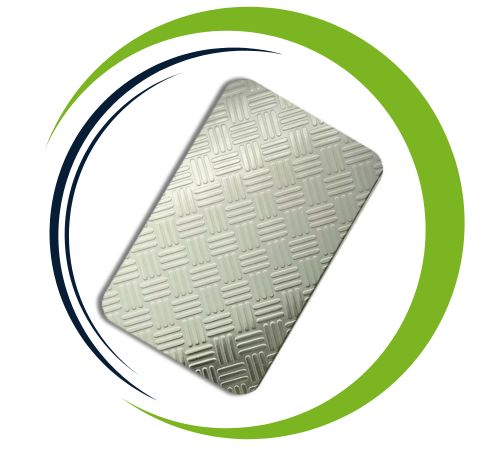

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

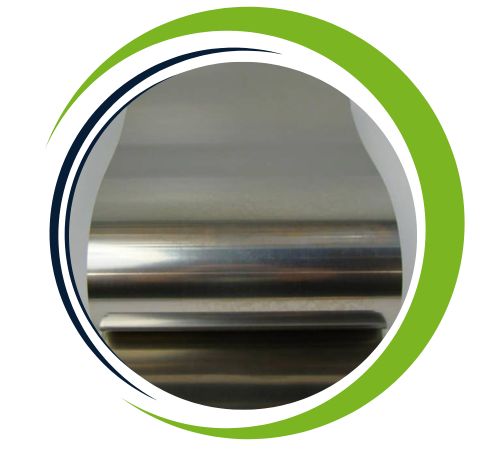

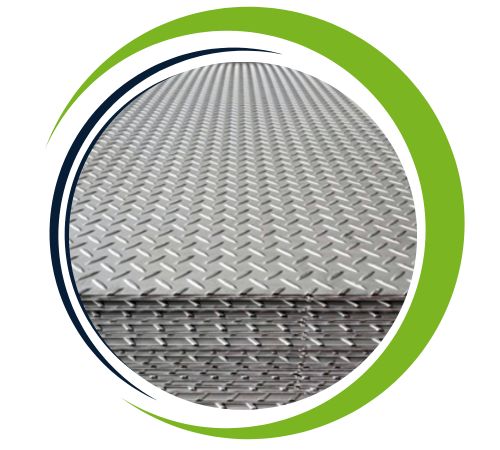

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316L sheets and plates offer many advantages, including excellent corrosion resistance, especially against chloride and harsh environments, making them ideal for marine and chemical consumption use This low-carbon material reduces carbide precipitation, enhances weldability and prevents intergranular corrosion. 316L is highly resistant to high temperature pitting, crevice corrosion and oxidation. It also has excellent mechanical properties, such as high strength, durability and flexibility. These characteristics make it suitable for industries such as pharmaceuticals, food processing and petrochemicals, where reliability and long-term performance are important.
Stainless Steel 316L Sheets and Plates are essential in environments where corrosion resistance, hygiene, and strength are paramount. They are particularly suited for marine equipment, chemical processing tanks, medical and surgical instruments, heat exchangers, and food processing machinery. SS 316L is also a popular choice for coastal architectural projects and wastewater treatment facilities due to its resilience against saltwater and industrial chemicals. Its durability, ease of fabrication, and long-lasting performance in corrosive and high-humidity conditions make it a preferred option across industries that require safe and sanitary material standards.
