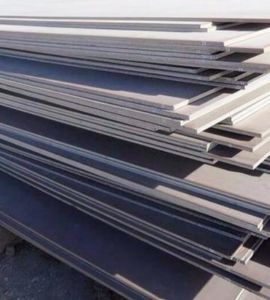

Varun Sheets and Plates stands out as a top-notch manufacturer and supplier of Stainless Steel 17-7 PH Sheets and Plates in Dubai, UAE. They’ve built a solid reputation for providing high-quality, precipitation-hardened stainless steel products. With a keen eye on precision and durability, Varun offers 17-7 PH sheets and plates that adhere to strict international standards for strength and corrosion resistance. Their offerings cater to vital industries like aerospace, petrochemicals, and power generation. By blending state-of-the-art production facilities with deep technical know-how, Varun guarantees a reliable supply, consistent quality, and outstanding customer service throughout the UAE and the broader Middle East, delivering high-performance stainless steel solutions.
The Stainless Steel 17-7 PH Sheets and Plates are primarily made up of 17% chromium and 7% nickel, with some aluminum added to facilitate precipitation hardening. This alloy boasts impressive mechanical strength, hardness, and resistance to corrosion. It can achieve a tensile strength of up to 1170 MPa and a yield strength of around 1035 MPa, depending on the heat treatment process. Additionally, the material shows good fatigue properties and dimensional stability. These mechanical and chemical characteristics make it an excellent choice for structural components that require a blend of high strength and moderate corrosion resistance in challenging environments.
| Specifications : | ASTM A693 / ASME SA693 |
| Standard : | ASTM, ASME and API |
| Thickness : | 4.0mm – 100mm |
| Shims Thickness : | Range from .01″ to .0125″ |
| Specialize : | Shim Sheet, Perforated Sheet, B. Q. Profile. |

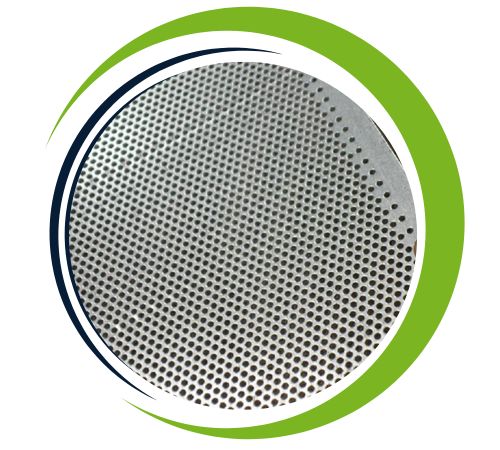

| Form : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |

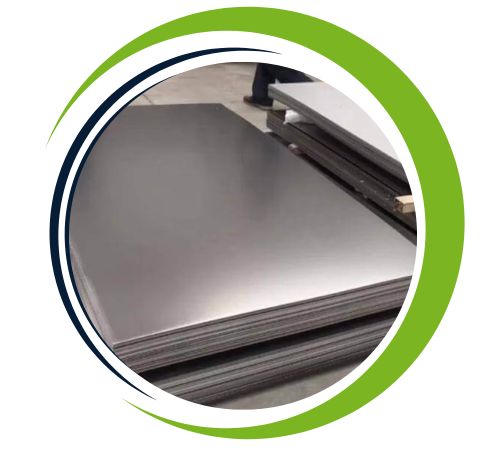

| Finish : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade : | SS 17-7 PH, (UNS S17700) |
| Grade | C | Mn | Ni | Al | Cr | P | Si | S | Fe | |
| 17-7 PH | min. | – | – | 6.50 | 0.75 | 16 | – | – | – | – |
| max. | 0.09 | 1.0 | 7.75 | 1.50 | 18 | 0.040 | 1.0 | 0.030 | Balance | |
| Properties | Metric | Imperial |
| Tensile strength | 1170 MPa | 170000 psi |
| Yield strength | 965 MPa | 140000 psi |
| Modulus of elasticity | 204 GPa | 29600 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 6% | 6% |
| Hardness, Rockwell C | 38 | 38 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SS DIN 1.4568 Sheets and Plates offer numerous advantages, including exceptional strength, high fatigue resistance, and excellent stress-corrosion cracking resistance. This alloy maintains good mechanical properties at elevated temperatures, making it ideal for aerospace and industrial applications. It also provides excellent formability and can be easily hardened through heat treatment. The material exhibits superior weldability, ensuring reliable performance in critical environments. Its corrosion resistance, combined with high durability, makes it a preferred choice for manufacturing components that require both strength and resistance to harsh conditions.
| Properties | Metric | Imperial |
| Density | 7.80 g/cm3 | 0.282 lb/in3 |
Yes, we offer custom sizes for Stainless Steel 17-7 PH Sheet and Plates to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| SS 17-7 PH | 1.4568 | S17700 | SUS 631 | Z8CNA17.07 | 301S81 | – | X7CrNiAl 17 7 |
| Material | Size | Thickness |
|---|---|---|
| PLATES / SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
You’ll find Stainless Steel 17-7 PH Sheets and Plates commonly used in aerospace components, chemical processing equipment, and parts for nuclear reactors, thanks to their remarkable strength and resistance to stress corrosion cracking. They’re also utilized in automotive applications, pressure vessels, and marine hardware, where a long service life and structural integrity are crucial. The alloy’s ability to maintain high strength even at elevated temperatures makes it perfect for springs, diaphragms, and fasteners. Its formability and heat-treatable nature give engineers the flexibility to manufacture complex components with precision.
