Varun Sheets and Plates stands out as a leading manufacturer and supplier of Stainless Steel 310 Sheets and Plates in Dubai, UAE. We pride ourselves on providing top-notch stainless solutions that excel in high-temperature and corrosive environments. Stainless Steel 310 is a heat-resistant austenitic alloy, celebrated for its remarkable oxidation resistance and strength even at elevated temperatures. Our SS 310 sheets and plates are crafted to meet stringent standards, guaranteeing outstanding performance in both thermal and industrial applications. We cater to a diverse range of industries, including petrochemical, furnace fabrication, and power generation, delivering reliable, durable, and cost-effective stainless steel products that thrive under demanding conditions.
The composition of Stainless Steel 310 Sheets and Plates includes 24–26% Chromium, 19–22% Nickel, and a maximum of 0.25% Carbon. This alloy is known for its exceptional oxidation resistance and can maintain its strength in continuous service at temperatures up to 1100°C. Its mechanical properties boast a tensile strength ranging from 520–750 MPa, a yield strength of about 205 MPa, and an elongation of 40%. In its annealed state, SS 310 is non-magnetic and showcases excellent ductility, weldability, and formability, making it perfect for applications that involve thermal cycling and exposure to high heat and corrosive environments.
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Width | 1000mm / 1219mm /1250mm / 1500mm / 2000mm |
| Length | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |

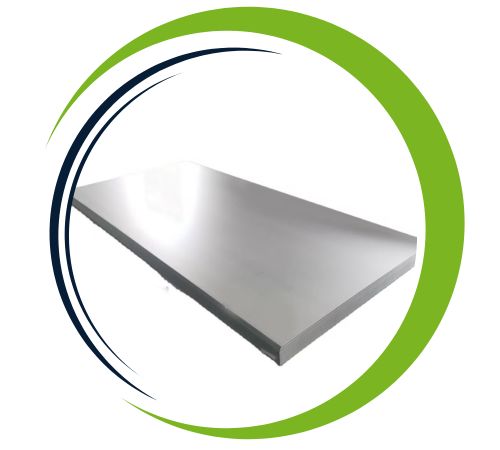

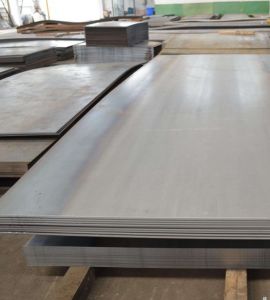

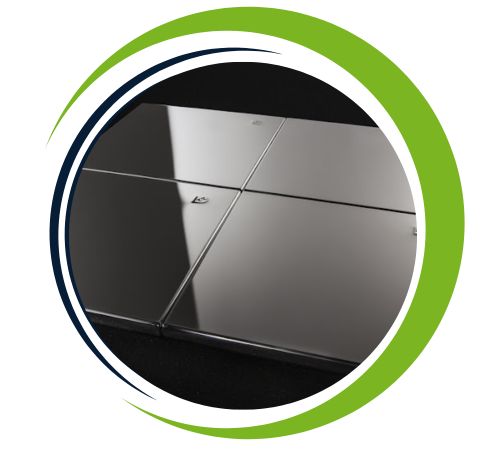

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

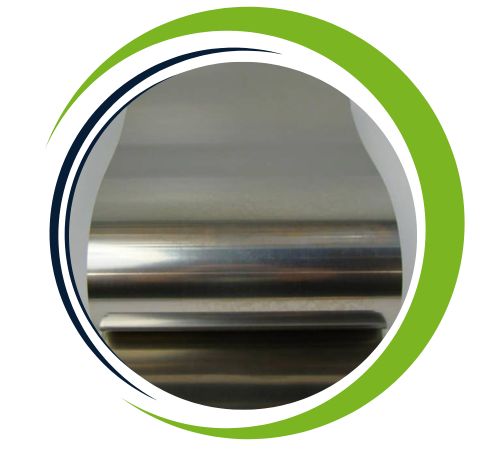

| Form | Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| 2000MM X 1000MM X 3MM | 2000MM X 1000MM X 6MM |
| 2500MM X 1250MM X 4MM | 2500MM X 1250MM X 8MM |
| 3000MM X 1500MM X 3MM | 3000MM X 1500MM X 6MM |
| 3000MM X 1500MM X 4MM | 3000MM X 1500MM X 8MM |
| 2000MM X 1000MM X 5MM | 2500MM X 1250MM X 10MM |
| 2500MM X 1250MM X 3MM | 2500MM X 1250MM X 6MM |
| 4000MM X 2000MM X 3MM | 4000MM X 2000MM X 6MM |
| 2500MM X 1250MM X 5MM | 3000MM X 1500MM X 10MM |
| 2000MM X 1000MM X 4MM | 2000MM X 1000MM X 8MM |
| 4000MM X 2000MM X 4MM | 2000MM X 2000MM X 10MM |
| 3000MM X 1500MM X 5MM |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 310 sheet and plate offer exceptional mechanical advantages. Their high chromium and nickel content ensures excellent resistance to oxidation, corrosion and scaling at temperatures up to 1150°C. These sheets and plates are durable, durable, and provide mechanical stability under thermal cycling. They exhibit excellent weldability and formability, making them easy to manufacture in complex structures. Additionally, they operate reliably in turbulent environments, including chemical processing plants, heat exchangers and furnaces. Their low maintenance and long life make them cost-effective and reliable for complex applications.
Stainless Steel 310 Sheets and Plates find extensive use in furnace components, heat exchangers, kilns, mufflers, radiant tubes, and burner nozzles, thanks to their high-temperature strength and oxidation resistance. They are also essential in the petrochemical, cement, power, and food processing sectors for managing hot gases and corrosive materials. With its outstanding performance in extreme heat, SS 310 is ideal for steam boilers, thermal fluid systems, and incinerators. Its structural integrity and durability in harsh conditions ensure a long service life and minimal maintenance in high-heat environments.
