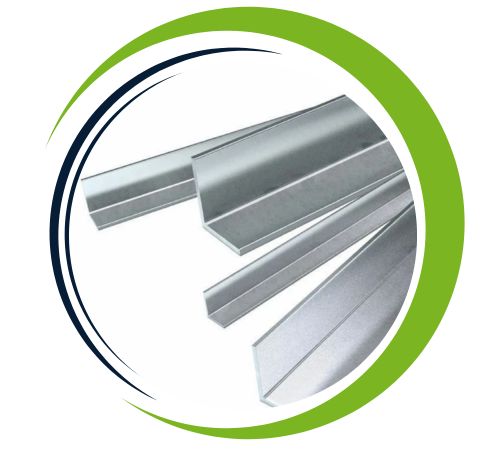

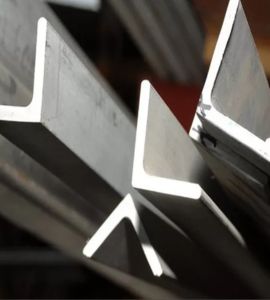

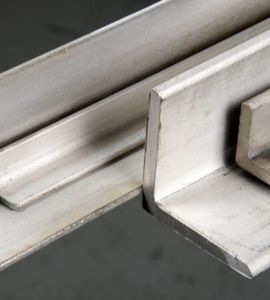

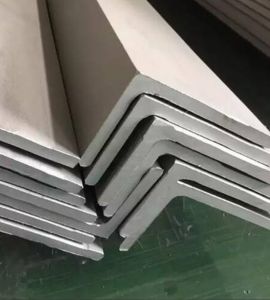

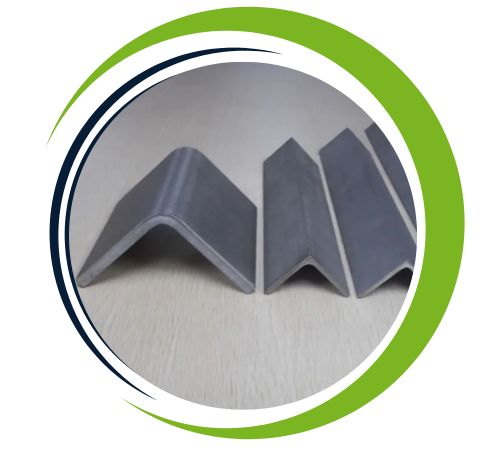

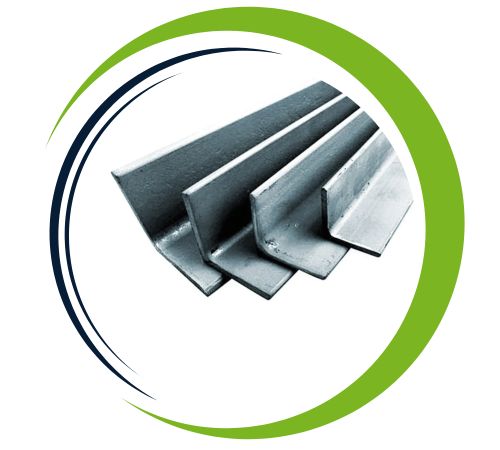

Varun Sheets and Plates, one of the prominent stainless steel producers and suppliers in Dubai, UAE, are renowned for providing top-notch Stainless Steel 316H Angles that find ideal applications in high-pressure and high-temperature conditions. Designed to be structurally strong and resistant to corrosion, these angles are most commonly applied in petrochemical, power generation, oil & gas, and heat exchangers sectors. With an unwavering dedication to global standards of quality, accurate fabrication, and on-time delivery, Varun Sheets and Plates remains the most sought-after supplier for Stainless Steel 316H Angles in the UAE and worldwide.
Stainless Steel 316H Angle is a high-carbon version of the 316 grade, which contains around 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and with a higher content of carbon (0.04–0.10%). The higher carbon content helps in providing better high-temperature strength and creep resistance, allowing it to be used for high-temperature applications. It provides tensile strength of approximately 515 MPa, yield strength of 205 MPa, and superior toughness even at elevated operating temperatures. It also shows good corrosion and oxidation resistance in chloride environments as well as in acid-containing environments.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 316H Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | SS 316H |
|---|---|
| C | 0.015 max |
| Mn | 2 max |
| Si | 1.0 max |
| P | 0.045 max |
| S | 0.030 max |
| Cr | 16 – 18 |
| Mo | 2 – 3 |
| Ni | 11 – 14 |
| Fe | 67.845 min |
| Grade | SS 316H |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35% |
| STANDARD | SS 316H |
| WERKSTOFF NR. | 1.4401 / 1.4436 |
| UNS | S31600 |
| JIS | SUS 316 |
| BS | 316S31 / 316S33 |
| GOST | – |
| AFNOR | Z7CND17-11-02 |
| EN | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 316H angle provides excellent corrosion resistance, especially in high-temperature environments, making it ideal for chemical, petrochemical and marine applications It has high strength due to its high carbon content, making it effective at at elevated pressures and temperatures. The material is resistant to pitting, crevice corrosion and oxidation, providing longevity and durability. Stainless steel 316H Angle also retains its mechanical properties at high temperatures, making it suitable for applications requiring high temperature resistance, such as electric motors and heat exchangers Easy to fabricate and weld.
| THICKNESS | ||||||
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 316H Angles are extensively used in industrial applications that need structural elements to function in corrosive and high-heat applications. Some of the common uses involve pressure vessels, heat exchangers, boiler parts, condensers, and refinery piping systems. They also appear in chemical and petrochemical facilities, power plants, marine constructions, and high-temperature furnace supports. The improved mechanical properties render SS 316H Angles suitable for load-bearing structures and welded fabrications used at high temperatures, providing long life, superior strength retention, and resistance to corrosion in harsh industrial environments.
