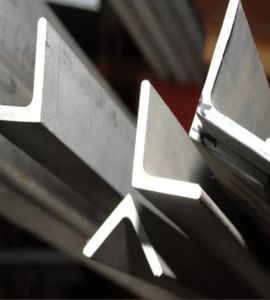

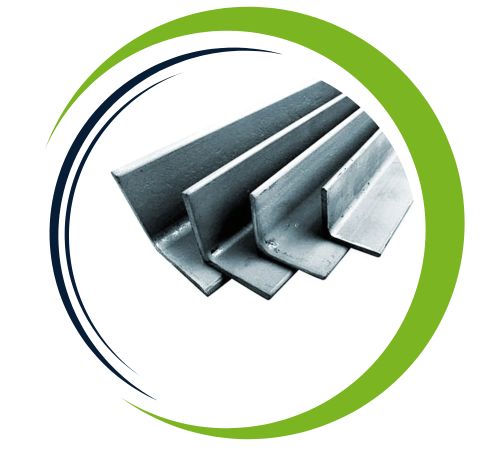

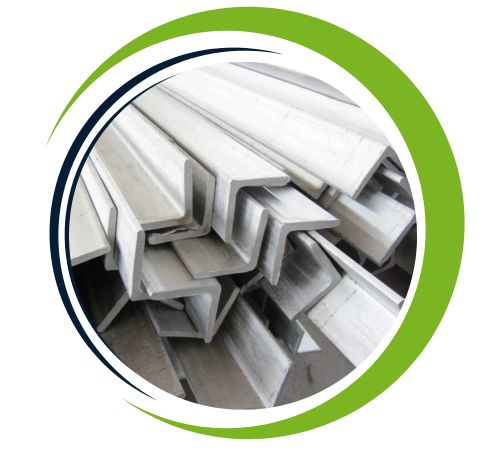

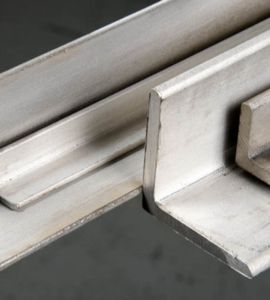

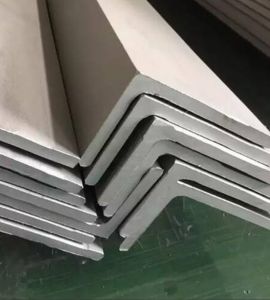

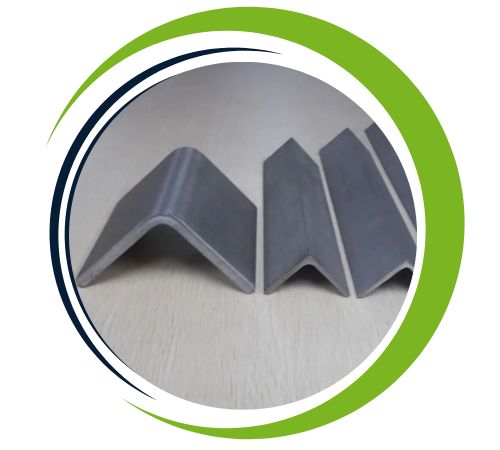

Varun Sheets and Plates, a top manufacturer and supplier in Dubai, UAE, is well known for providing high-quality stainless steel products, such as Stainless Steel 317L Angles. With a focus on superior corrosion resistance and long-term strength, these angles are well suited for challenging industrial and structural uses. With a focus on precision, performance, and customer satisfaction, Varun Sheets and Plates guarantees that every 317L Angle adheres to high-quality standards. Their products cater to different industries such as chemical processing, pharmaceuticals, marine, and food industries, which provide superior strength and resistance to aggressive environments and corrosive media.
Stainless Steel 317L Angle is a low-carbon variant of 317 stainless steel, consisting predominantly of chromium (18–20%), nickel (11–15%), and molybdenum (3–4%), with the maximum carbon content of 0.03%. This composition provides it with increased resistance to pitting, crevice corrosion, and general corrosion in acidic conditions. It possesses a tensile strength of about 515 MPa, yield strength of 205 MPa, and elongation of about 35%. Its low carbon content provides good weldability and avoids the risk of intergranular corrosion, particularly in welding or high-temperature applications, and is well-suited for deployment in corrosive and high-stress conditions.

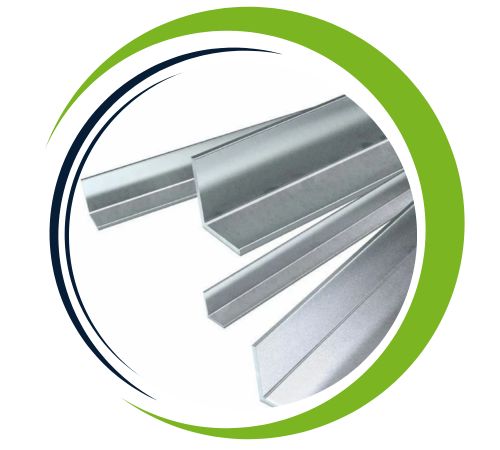

Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
The stainless steel 317L angle provides excellent corrosion resistance, especially in aggressive environments with acids and chlorides, due to its high malybdenum content. It has excellent strength and stability, making it ideal for construction applications. The low carbon content reduces carbide precipitation during welding, resulting in stronger and longer lasting joints. The alloy provides excellent thermal and oxidation resistance, allowing it to be used at higher temperatures. Additionally, the 317L Angle is versatile, easy to manufacture, and requires little maintenance, making it cost-effective for the chemical, marine and industrial industries.
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Stainless Steel 317L Angles find extensive use in those processes that necessitate higher corrosion resistance, particularly in chemical and marine conditions. 317L Angles are widely utilized in the fabrication of chemical tanks, pressure vessels, heat exchangers, and evaporators in industries where acidic and chloride-bearing solutions are handled. In the pharmaceutical and food processing industries, 317L Angles guarantee sanitation and resistance against corrosion in cleaning systems and structural skeletons. Also, they find applications in coastal construction work, pulp and paper processes, and pollution control devices where long-term performance depends on durability, weldability, and resistance to strong chemicals.
