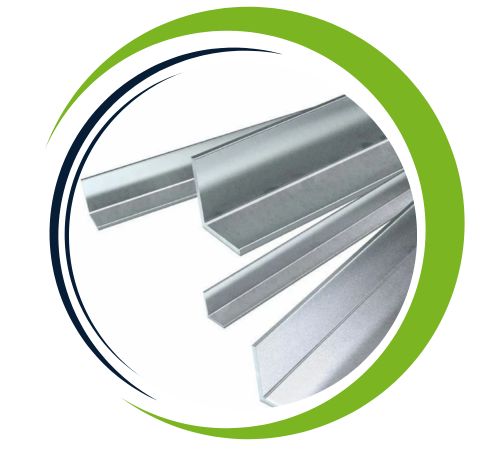

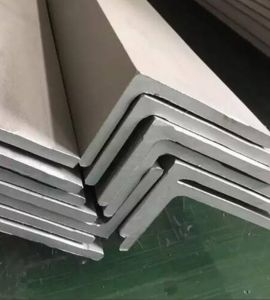

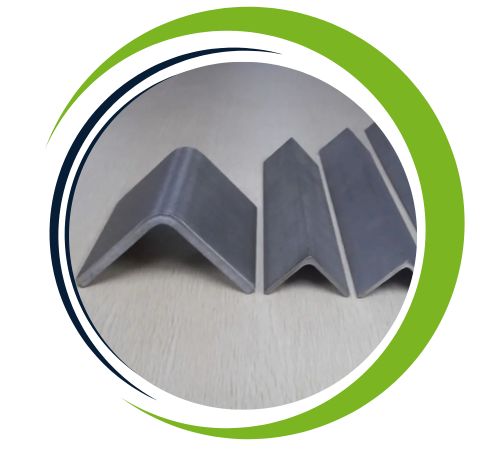

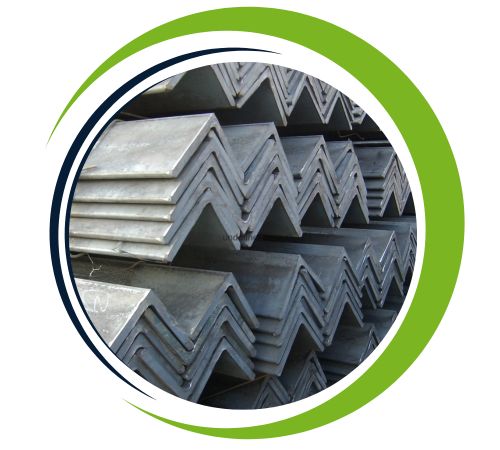

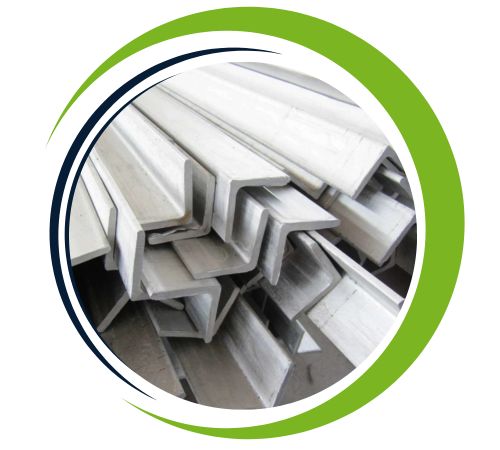

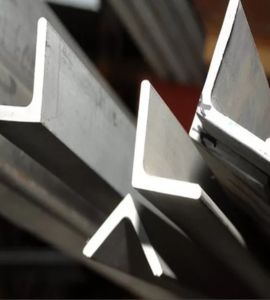

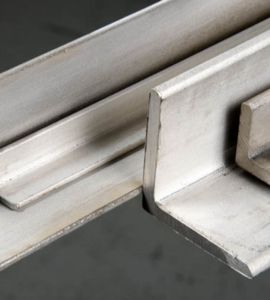

Varun Sheets and Plates, being one of the most prominent stainless steel suppliers and manufacturers in Dubai, UAE, provides excellent Stainless Steel 304L Angles with high corrosion resistance, weldability, and versatility. These low-carbon stainless steel angles are best suited for use in cases where welding needs to be done without fear of carbide precipitation. SS 304L Angles supplied by Varun Sheets and Plates are produced in accordance with global standards and can be used in the chemical, pharmaceutical, food processing, and construction industries. The company relies on a robust distribution channel and rigorous quality measures to satisfy customers in the UAE and globally.
Stainless Steel 304L Angle is the low-carbon variant of the 304 alloy, with about 18–20% chromium, 8–12% nickel, and a maximum of 0.03% carbon. The lower carbon content increases resistance to intergranular corrosion, particularly after welding. It has about 485 MPa tensile strength, 170 MPa yield strength, and elongation of about 40%. SS 304L has good mechanical properties and corrosion resistance in a broad variety of environments, including mildly acid and chloride-bearing environments.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 304L Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304L | 1.4306/1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 304L angle offers several advantages, making it a popular choice for structural applications. It provides resistance to corrosion, especially in harsh environments such as the chemical industry, food and marine industries. The low carbon content increases its weldability, reducing the risk of sensing and carbide precipitation. The material provides high strength, durability and oxidation resistance, ensuring long-lasting performance. The stainless steel 304L is versatile, easy to manufacture, and maintains its appearance with minimal maintenance. The resistance to stress corrosion cracking further extends its life under extreme conditions.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 304L Angles are extensively used in supports, frames, and brackets in petrochemical, marine, food and beverages, and pharmaceutical processing industries. They are especially applicable to welded structures, pipes, tanks, and architectural use when aesthetics and resistance to corrosion are desired. Low carbon content in them provides long-term strength and durability, even under high-moisture or slightly corrosive environments. SS 304L Angles are widely used for applications demanding a compromise of strength, corrosion resistance, and ease of fabrication.
