Aaron Sheets plate manufacturer and supplier in Dubai, UAE is a trusted name in the metalworking industry, known for producing high quality sheet plates with a focus on precision technology and durability Their products consume meet the needs of businesses. In addition, they specialize in stainless steel 316Ti angles, known for their exceptional corrosion resistance and strength, ideal for construction and industrial applications Aaron ensures quality, competitive pricing and timely delivery, for they are the preferred partner for global customers.

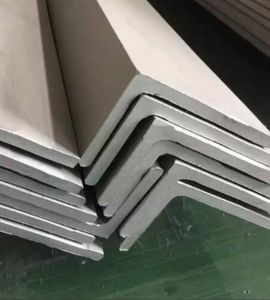

Stainless Steel 316Ti Angle is a type of titanium-stabilized 316 stainless steel, with the chemical composition of 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and incorporated titanium (at least five times the amount of carbon) to check carbide precipitation during the welding process. It provides tensile strength of approximately 515 MPa, yield strength of 205 MPa, and elongation of around 30–40%. The titanium addition strengthens its resistance to intergranular corrosion and suitability for high temperature, showing strength and structural stability in heat-consuming environments.
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Size | 3/4″ THRU 8″ |
| Thickness | 1/8″ thru 5/8″ |
| Type | Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled |
| Grades | 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 316Ti angle provides excellent corrosion resistance thanks to its titanium-tough design especially in high-temperature environments that retains this strength and stability under extreme conditions, and provides it is ideal for industrial marine applications. The alloy resists pitting and crack corrosion, providing durability in high chloride environments. Also, it exhibits excellent weldability and formability, facilitating mass production. Its advanced mechanical properties and thermal resistance make it suitable for pressure molds and chemical processes, resulting in reliable operation and reduced maintenance over time.
| THICKNESS | ||||||
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 316Ti Angles find extensive use in applications requiring corrosion resistance and strength at higher temperatures. Common applications consist of heat exchangers, pressure vessels, furnace equipment, exhaust manifolds, and marine structural support. They are also present in the chemical processing industry, pharmaceutical machinery, and food processing equipment because of their resistance to aggressive chemicals and chlorides. The titanium stabilization makes 316Ti Angles suitable for application in welded structures with exposure to high temperatures, giving long-term performance without any threat of intergranular corrosion even after extended service or repeated thermal cycling.
