Varun Sheets and Plates is a well-respected manufacturer and supplier of Stainless Steel 317 Foils based in Dubai, UAE. We pride ourselves on delivering top-notch products to industries that need exceptional corrosion resistance and mechanical reliability. SS 317 is a high-alloy austenitic stainless steel, enriched with molybdenum, which gives it remarkable resistance to pitting and chemical attacks. Our foils are crafted with precision, ensuring tight tolerances and an outstanding surface finish, making them perfect for critical applications. We cater to various sectors, including petrochemical, pharmaceutical, and food processing, by providing customized thicknesses, quick delivery, and strict adherence to international quality standards.
Stainless Steel 317 Foils consist of 18–20% Chromium, 11–15% Nickel, and 3–4% Molybdenum, with a maximum carbon content of 0.08%. This unique composition offers excellent resistance to sulfuric acid and other harsh agents. The material boasts a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 35–40%. SS 317 foils retain their mechanical strength and corrosion resistance even at elevated temperatures, ensuring dependable performance in tough industrial environments.
| SPECIFICATION: | ASTM A240 / SA240 |
| STANDARD | JIS, AISI, ASTM, DIN, GB, EN, ETC |

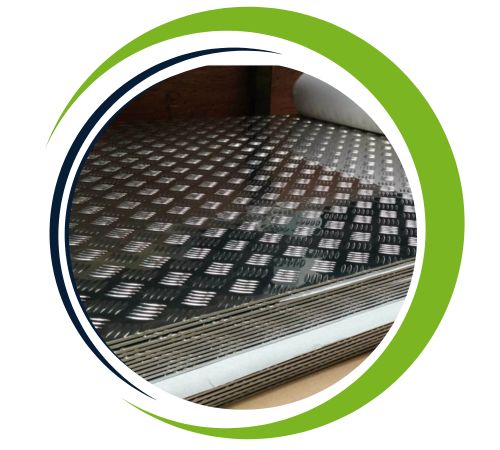

| SURFACE | 2B, CR, HR, 2D, NO.4, NO.8, MIRROR, BA, NO.1, CHEQUERED, HAIRLINE, BRUSH, ETCHING, ETC. |
| WIDTH | 1000MM, 1219MM, 1250 MM, 1500MM, 2000MM AND Even as per Customers Requirements |
| LENGTH | 2000MM, 2500MM, 3000 MM, 5000MM, 6000MM AND Even as per Customers Requirements |
| THICKNESS | 0.05MM TO 150 MM |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 317 | 0.08 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 14 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 317 foils offer exceptional corrosion resistance, particularly in harsh environments with high levels of chloride exposure. They have high strength and excellent durability, making them ideal for applications in chemical processing, marine environments, and pharmaceuticals. These foils exhibit superior resistance to pitting, crevice corrosion, and oxidation, even at elevated temperatures. They are highly formable and easily processed into thin sheets, making them versatile for various industrial applications. Their resistance to staining and rust also ensures long-term reliability and low maintenance costs in challenging conditions.
| GRADE 317 | ||||
|---|---|---|---|---|
| ASTM | DIN | UNS | JIS | GB |
| 317 | 1.4445 | S31700 | SUS317 | X6CrNiMo19-13-4 |
These foils are perfect for applications that require high resistance to chemical corrosion and high-temperature conditions. Common industries that utilize them include pulp and paper, petrochemicals, marine, power generation, and food processing. They are ideal for linings, insulation wraps, heat exchangers, pharmaceutical equipment, and components for chemical tanks. With their excellent formability, pristine surface finish, and resistance to chloride-induced pitting, they are the go-to choice in settings where hygiene, durability, and chemical stability are essential.
