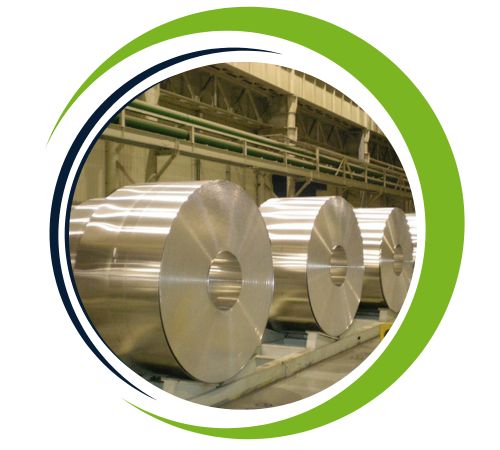

Varun Sheets and Plates, a reliable stainless steel supplier and manufacturer in Dubai, UAE, provides long-lasting and cost-effective Stainless Steel 201 Foils suitable for numerous industrial and decorative uses. The foils are recognized for their fair mechanical strength, excellent formability, and attractive surface finish. SS 201 Foils by Varun Sheets and Plates are produced in accordance with international quality standards, which renders them appropriate for customers in industries like architecture, transportation, kitchen equipment, and general fabrication in UAE as well as international markets.
Stainless Steel 201 Foil is a chromium-nickel-manganese austenitic alloy with about 16–18% chromium, 3.5–5.5% nickel, and 5.5–7.5% manganese. It possesses tensile strength of about 520–680 MPa and yield strength of around 275 MPa. The alloy has good ductility, fair corrosion resistance, and is a cost-effective substitute for SS 304 for low to moderately corrosive environments. Due to its low nickel content, it is a cheap option for non-critical applications.
| Item | Stainless Steel 201 foil(Hot rolled, cold rolled) | |
| Thickness | 0.025 to 3 mm and as per Customer Requirement | |
| Width | 3 mm to 2000 mm and as per Customer Requirement | |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc | |
| Surface | the surface and finish of stainless steel 201 foil: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
201 | 0.15 max | 5.5-7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | – | 0.3-0.5 | – |
| Properties | Metric | Imperial | |
| Tensile strength (transverse at room temperature) | 685 MPa | 99400 psi | |
| Tensile strength (longitudinal at room temperature) | 696 MPa | 101000 psi | |
| Yield strength (transverse at room temperature) | 292 MPa | 42400 psi | |
| Yield strength (longitudinal at room temperature) | 301 MPa | 43700 psi | |
| Compressive yield strength | 365 MPa | 52900 psi | |
| Elastic modulus | 197 GPa | 28573 ksi | |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 | |
| Elongation at break (longitudinal at room temperature) | 56% | 56% | |
| Elongation at break (transverse at room temperature) | 62.50% | 62.50% | |
| Hardness, Rockwell B (transverse at room temperature) | 85 | 85 | |
| Hardness, Rockwell B (longitudinal at room temperature) | 85 | 85 |
DIN 1.4372 Foils offer several advantages, including excellent corrosion resistance, making them ideal for use in mildly acidic and moist environments. They are lightweight yet durable, providing strength without adding excessive weight. These foils exhibit superior formability and weldability, enabling easy fabrication into various shapes and structures. Their high tensile strength ensures reliability in demanding applications, while the cost-effectiveness of the alloy makes it an economical choice. Additionally, the foils are resistant to oxidation and have an attractive finish, making them suitable for decorative and industrial purposes alike.
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN | |
| SS 201 | 1.4372 | S20100 | SUS 201 | – | – | – | – |
Stainless Steel 201 Foils find applications across many industries and uses such as appliance panels, food service equipment, automotive trim, interior decors, kitchen backsplashes, and sign-making. They are also used in the manufacture of washers, shims, and light weight structural components. Their flexibility and ease of shaping make them best suited for deep drawing, stamping, and forming operations. Although not appropriate for severely corrosive or marine conditions, SS 201 Foils provide consistent performance in indoor and lightly corrosive environments, providing a useful compromise between performance, aesthetics, and economy.
