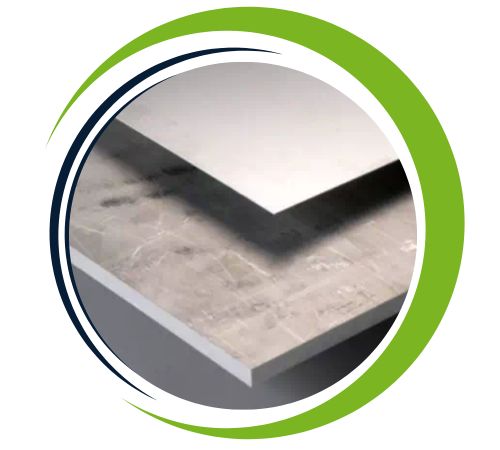

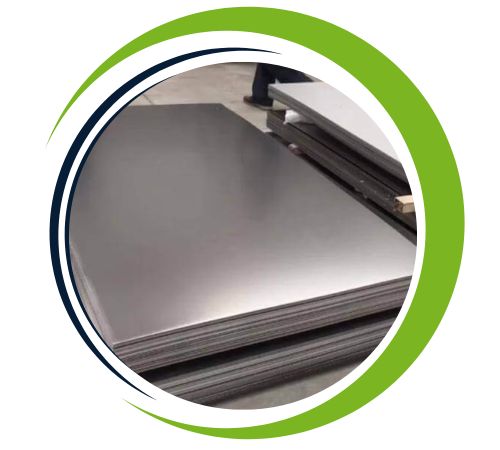

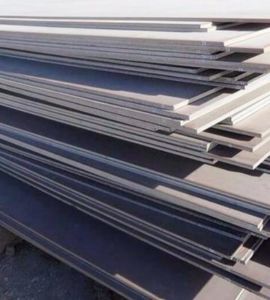

Varun Sheets and Plates is a reliable manufacturer and supplier of EN24 Sheets and Plates based in Dubai, UAE. We proudly serve a wide range of industries with our precision-engineered alloy steel solutions. EN24 is renowned for its exceptional strength, durability, and impressive fatigue resistance, making it a top choice for demanding applications. At Varun, we are committed to ensuring that our EN24 plates and sheets adhere to strict quality standards, providing outstanding mechanical performance, wear resistance, and machinability. Thanks to our advanced production techniques and thorough quality checks, we consistently deliver sheets and plates that excel under high stress and challenging conditions, solidifying our reputation as a preferred supplier in the region.
Nickel (1.3–1.7%), chromium (0.9–1.4%), molybdenum (0.2–0.4%), carbon (0.36–0.44%), and iron make up EN 24 Sheets and Plates. Excellent tensile strength (~850–1000 MPa), yield strength (~680 MPa), and good elongation (13–15%) are all provided by this alloy steel. It has outstanding toughness, good hardenability, and high fatigue resistance. EN 24 is suitable for high-stress mechanical applications because it reacts well to heat treatment and is usually supplied in the hardened and tempered state. Under impact and dynamic loads, the material retains its strength and dimensional stability.
| Thickness | from 3mm up to as thick as 150mm |
|---|---|
| Size | from 2000 x 1000mm up to 4000 x 2000mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | -52° C |
| Process of Manufacturing | Hot-Rolled (HR) |
| C | P | Mo | Mn | S | Cr | Si | Ni | |
| EN – 24 | .35 – .45 | .040 | .20 – .40 | .45 – .70 | .040 | .90 – 1.40 | .10 – .35 | 1.30 – 1.80 |
| Max Stress | 850-1000 n/mm2 | |
| Yield Stress | 680 n/mm2 Min | Up to 150mm LRS |
| 654 n/mm2 Min | 150 to 250mm LRS | |
| 0.2% Proof Stress | 665 n/mm2 Min | Up to 150mm LRS |
| 635 n/mm2 Min | 150 to 250mm LRS | |
| Elongation | 13% Min | (9% if cold drawn) |
| Impact KCV | 50 Joules Min | Up to 150mm LRS |
| 35 Joules Min | 150 to 250mm LRS | |
| Hardness | 248-302 HB |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| BS 970 1991 | BS 970 1955 EN | AISI/SAE | Werkstoff |
| 817M40 | EN24 | 4340 | 1.6582 |
EN24 sheets and plates offer many key benefits including exceptional strength and toughness, making them ideal for high-pressure applications. They exhibit excellent fatigue and wear resistance, providing durability in harsh environments. The high hardness and impact resistance of the alloy makes it suitable for use in critical applications such as shafts, gears and machine parts. EN 24 also provides excellent mechanical properties and can be heat treated to achieve desired mechanical properties. EN 24 is invaluable in the aerospace, automotive and industrial industries for its reliability, versatility and performance under extreme conditions.
Yes, we offer custom sizes for EN24 Sheet and Plates to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Industries that need parts with high mechanical strength and resistance to wear and fatigue frequently use EN 24 Sheets and Plates. They are utilised for gear shafts, crankshafts and gearbox parts in the automotive industry. Aerospace applications include aircraft landing gear and engine parts. EN 24 is favoured in the heavy engineering and defence industries for producing connecting rods, high-strength bolts, and high-load machine parts. It is also used in die forging, hydraulic systems, and tooling applications. With its excellent machinability and strength-to-weight ratio, EN 24 is ideal for structural and mechanical components in demanding environments.
