S355j2g3 Sheet and Plates

Varun Sheets and Plates is a well-respected manufacturer and supplier of S355J2G3 Sheets and Plates, located in Dubai, UAE. We provide high-strength, low-alloy structural steel plates that are known for their outstanding weldability, durability, and impact resistance, particularly in sub-zero temperatures. Our S355J2G3 plates are produced in accordance with EN 10025 standards, making them perfect for structural and engineering applications in various industries, including construction, shipbuilding, and heavy machinery. At Varun Sheets and Plates, we prioritize quality, precision, and timely delivery to satisfy the needs of both domestic and international clients throughout the Middle East and beyond.

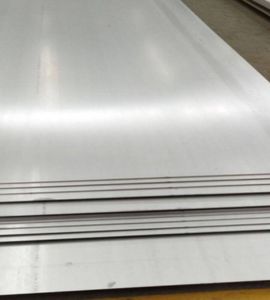

S355j2g3 Cold Rolled Plates

S355j2g3 Hot Rolled Plates

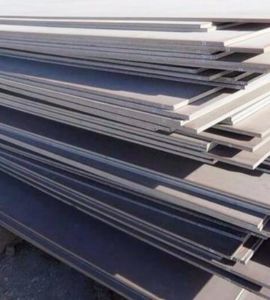

S355j2g3 Shim Sheets

S355j2g3 Plates Manufacturer in Dubai, S355j2g3 Plates & Sheets in Ras Al Khaimah, S355j2g3 Mirror Finish Plates Supplier in Dubai, S355j2g3 Polished Plates Exporter in Al Ain, S355j2g3 Chequered Plates Price List in Jebel Ali, S355j2g3 Cold Rolled Plate Distributor in Ras Al Khaimah, S355j2g3 Clad Plates and Sheets Supplier in Dubai, S355j2g3 Sheet and Plate Distributor in UAE, S355j2g3 Perforated Plate Sizes in mm

The S355J2G3 Sheets and Plates are primarily made of iron, with controlled amounts of carbon (up to 0.2%), manganese (up to 1.6%), silicon, phosphorus, and sulfur. This steel boasts a minimum yield strength of 355 MPa and impressive tensile strength ranging from 470 to 630 MPa. With excellent impact resistance down to -20°C, along with remarkable weldability and machinability, S355J2G3 is a dependable choice for structural components in tough environments.

S355j2g3 Sheet and Plates Specification

Item	S355J2G3 – Offshore & Structural Steel Plates
Technique	hot rolled
Thickness	5mm-150mm
Width	1000mm-4500mm
Length	3000mm-18000mm or as custom’s request
Standard	EN 10025-2:2004
Material	S355J2G3 Steel Plates, En 10025-2 Steel Plate

S355j2g3 Sheet and Plates Chemical Composition

Material	Si	Mn	Ni	C	Al	P	Cu	Cr	S	CEQ
DIN 1.0570	0.55 max.	1.60 max.	0.30 max.	0.20 max.	0.020 max.	0.035 max.	0.30 max.	0.30 max.	0.035 max.	0.45 max.

S355j2g3 Sheet and Plates Mechanical Properties

Grade	Tensile(MPa)	(Mpa) Min Yield Strength	Elongation(%)	Thickness (mm)	Min Impact Energy
DIN 1.0570
	450-600 Mpa	285 -295Mpa	18%	101 -200	-20	27J
	450-630 Mpa	315 -355 Mpa	18-20%	8 -100	-20	27J
	450-600 Mpa	275 Mpa	17%	201 -400	-20

S355j2g3 Clad Sheets Distributor in UAE, S355j2g3 Perforated Plates Supplier in Dubai, S355j2g3 Perforated Sheet Weight Chart, S355j2g3 Plate Exporter in Al Ain, S355j2g3 Polished Sheets Manufacturer in Dubai, S355j2g3 Shim Sheet and Plate Price List in Jebel Ali, S355j2g3 Chequered Plates Sizes in mm, S355j2g3 Hot Rolled Plate Distributor in Ras Al Khaimah, S355j2g3 Sheets and Plates Ajman

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest S355j2g3 Sheet and Plates Manufacturer and Exporter in Dubai, UAE

Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

S355j2g3 Sheets Price in Ajman, S355j2g3 Hot Rolled Weight Chart, S355j2g3 Cold Rolled Supplier in Jebel Ali, Stockist of S355j2g3 Cold Rolled Sheets in Al Ain, S355j2g3 Perforated Sheet Supplier in UAE, S355j2g3 Perforated Plates Price List in Dubai, S355j2g3 Perforated Plates Supplier in Al Ain, S355j2g3 Chequered Plates Exporter in Dubai, S355j2g3 Polished Plates Exporter in UAE, S355j2g3 Perforated Plates Exporter in Ras Al Khaimah, S355j2g3 Sheet and Plate in Ajman

S355J2G3 Sheets and Plates offer several advantages, making them ideal for heavy-duty structural applications. With a minimum yield strength of 355 MPa, they provide exceptional strength and load-bearing capacity. These plates are highly durable, with excellent impact resistance even at low temperatures, ensuring reliability in harsh environments. Their excellent weldability and formability allow for easy fabrication into complex shapes. S355J2G3 plates also offer good toughness and are resistant to wear and corrosion, ensuring long-lasting performance. Cost-effective and versatile, they are widely used in construction, bridges, and industrial machinery.

Types of S355j2g3 Sheet and Plates

S355j2g3 Sheets Dealer in Dubai, S355j2g3 Plates Supplier in Dubai, S355j2g3 Sheets in Ras Al Khaimah, S355j2g3 Plates Size Chart, S355j2g3 Sheet Price in Ajman, S355j2g3 Plates Supplier in Jebel Ali, S355j2g3 Sheet Stockist in Al Ain, S355j2g3 Sheets and Plates Exporter in UAE, S355j2g3 Sheet Stockist in Dubai, S355j2g3 Plates Supplier in Al Ain

Are Custom Sizes Available for S355j2g3 Sheet and Plates?

Yes, we offer custom sizes for S355j2g3 Sheet and Plates to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

S355j2g3 Sheet and Plates Equivalent Grades

4.7 – 51.0	Thickness (milimeter)
0.47 (0.70)	Max CET(CEV)
0.40 (0.59)	Typ CET(CEV)

S355j2g3 Sheet and Plates Weight Chart

Plate Thickness *(mm)*	Weight *(kg/m2)*
1.06 mm	12.06
2.00 mm	15.07
2.05 mm	19.06
3 mm	23.06
3.02 mm	25.01
4 mm	31.04
5 mm	39.03
6 mm	47.01
8 mm	62.08
10 mm	78.05
12.05 mm	98.01
15 mm	118
20 mm	157
22.05 mm	177
25 mm	196
30 mm	236
32 mm	251
35 mm	275
40 mm	314
45 mm	353
50 mm	393
55 mm	432
60 mm	471
65 mm	510
70 mm	550
75 mm	589
80 mm	628
90 mm	707
100 mm	785
110 mm	864
120 mm	942
130 mm	1051
150 mm	1178
160 mm	1256
180 mm	1413
200 mm	1570
250 mm	1963

S355j2g3 Sheet and Plates Dimensions

length x Width	Thickness	Mass per Sq m		Length x Width	Thickness	Mass per Sq m
length x Width	Thickness	Mass per Sq m		Length x Width	Thickness	Mass per Sq m
2000 x 1000	3	23.055		2000 x 1000	30.000	235.050
2500 x 1250	3	23.055		2500 x 1250	30.000	235.050
3000 x 1500	3	23.055		3000 x 1500	30.000	235.050
3660 x 1830	3	23.055		4000 x 2000	30.000	235.050
4000 x 2000	3	23.055		5000 x 1250	30.000	235.050
2000 x 1000	4	31.040		5000 x 2500	30.000	235.050
2500 x 1250	4	31.040		6000 x 2500	30.000	235.050
3000 x 1500	4	31.040		10000 x 2500	30.000	235.050
3660 x 1830	4	31.040		2000 x 1000	32.000	251.020
2000 x 1000	5	39.025		2500 x 1250	32.000	251.020
2500 x 1250	5	39.025		3000 x 1500	32.000	251.020
3000 x 1500	5	39.025		4000 x 2000	32.000	251.020
3660 x 1830	5	39.025		5000 x 2500	32.000	251.020
4000 x 1750	5	39.025		2500 x 1250	35.000	274.075
4000 x 1830	5	39.025		3000 x 1500	35.000	274.075
4000 x 2000	5	39.025		4000 x 2000	35.000	274.075
6000 x 2000	5	39.025		2000 x 1000	40.000	314.000
2500 x 1250	6	47.010		2500 x 1250	40.000	314.000
3000 x 1500	6	47.010		3000 x 1500	40.000	314.000
3000 x 1525	6	47.010		4000 x 1750	40.000	314.000
3660 x 1830	6	47.010		4000 x 2000	40.000	314.000
4000 x 1750	6	47.010		5000 x 2500	40.000	314.000
4000 x 1830	6	47.010		6000 x 2000	40.000	314.000
4000 x 2000	6	47.010		7500 x 2500	40.000	314.000
6000 x 1500	6	47.010		2000 x 1000	45.000	353.025
6000 x 1830	6	47.010		2500 x 1250	45.000	353.025
6000 x 2000	6	47.010		2500 x 1500	45.000	353.025
6000 x 2500	6	47.010		3000 x 1500	45.000	353.025
8000 x 2000	6	47.010		4000 x 2000	45.000	353.025
8000 x 2500	6	47.010		5000 x 2500	45.000	353.025
2000 x 1000	8	62.080		2000 x 1000	50.000	392.050
2500 x 1250	8	62.080		2500 x 1250	50.000	392.050
3000 x 1500	8	62.080		3000 x 1500	50.000	392.050
3660 x 1830	8	62.080		4000 x 2000	50.000	392.050
4000 x 2000	8	62.080		5000 x 2500	50.000	392.050
5000 x 2500	8	62.080		6000 x 2000	50.000	392.050
6000 x 1500	8	62.080		8000 x 2500	50.000	392.050
6000 x 2000	8	62.080		2000 x 1000	60.000	471.000
8000 x 2000	8	62.080		2500 x 1250	60.000	471.000
2000 x 1000	10	78.050		3000 x 1500	60.000	471.000
2500 x 1250	10	78.050		4000 x 2000	60.000	471.000
3000 x 1500	10	78.050		5000 x 2500	60.000	471.000
4000 x 1750	10	78.050		2000 x 1000	65.000	510.025
5000 x 2500	10	78.050		2500 x 1250	65.000	510.025
6000 x 1500	10	78.050		3000 x 1500	65.000	510.025
6000 x 2000	10	78.050		4000 x 2000	65.000	510.025
6000 x 2500	10	78.050		5000 x 2500	65.000	510.025
10000 x 2000	10	78.050		2000 x 1000	70.000	549.05
10000 x 2500	10	78.050		2500 x 1250	70.000	549.05
2000 x 1000	12	94.020		3000 x 1500	70.000	549.05
4000 x 2000	12	94.020		4000 x 2000	70.000	549.05
6000 x 2000	12	94.020		5000 x 2500	70.000	549.05
6000 x 2500	12	94.020		2000 x 1000	75.000	588.075
2000 x 1000	12.05	98.013		2500 x 1250	75.000	588.075
2500 x 1250	12.05	98.013		3000 x 1500	75.000	588.075
3000 x 1500	12.05	98.013		4000 x 2000	75.000	588.075
3050 x 1525	12.05	98.013		5000 x 2500	75.000	588.075
4000 x 1750	12.05	98.013		2000 x 1000	80.000	628.000
4000 x 2000	12.05	98.013		2500 x 1250	80.000	628.000
5000 x 2500	12.05	98.013		3000 x 1500	80.000	628.000
6000 x 1500	12.05	98.013		4000 x 2000	80.000	628.000
6000 x 2000	12.05	98.013		2000 x 1000	90.000	706.05
6000 x 2500	12.05	98.013	2500 x 1250	90.000	706.05
2000 x 1000	15	117.075	3000 x 1500	90.000	706.05
2500 x 1250	15	117.075	4000 x 2000	90.000	706.05
3000 x 1500	15	117.075	5000 x 2000	90.000	706.05
4000 x 1750	15	117.075	2000 x 1000	100.000	785.000
4000 x 2000	15	117.075	2500 x 1250	100.000	785.000
4000 x 2500	15	117.075	3000 x 1500	100.000	785.000
5000 x 2500	15	117.075	4000 x 2000	100.000	785.000
6000 x 2500	15	117.075	5000 x 2500	100.000	785.000
2500 x 1250	20	157.000	2000 x 1000	110.000	863.050
3000 x 1500	20	157.000	2500 x 1250	110.000	863.050
4000 x 2000	20	157.000	3000 x 1500	110.000	863.050
4000 x 2500	20	157.000	2000 x 1000	115.000	902.075
5000 x 2500	20	157.000	2500 x 1250	115.000	902.075
6000 x 2000	20	157.000	3000 x 1500	115.000	902.075
7500 x 2500	20	157.000	2000 x 1000	120.000	942.000
8000 x 2000	20	157.000	2500 x 1250	120.000	942.000
10000 x 3000	20	157.000	3000 x 1500	120.000	942.000
2000 x 1000	22.050	176.063	2000 x 1000	130.000	1020.050
2500 x 1250	22.050	176.063	2500 x 1250	130.000	1020.050
3000 x 1500	22.050	176.063	3000 x 1500	130.000	1020.050
4000 x 2000	22.050	176.063	4000 x 2000	130.000	1020.050
5000 x 2500	22.050	176.063	2000 x 1000	135.00	1059.075
2000 x 1000	25.000	196.025	2500 x 1250	135.00	1059.075
2500 x 1250	25.000	196.025	2000 x 1000	140.000	1099.000
3000 x 1500	25.000	196.025	2500 x 1250	140.000	1099.000
4000 x 2000	25.000	196.025	3000 x 1500	140.000	1099.000
5000 x 2500	25.000	196.025	2000 x 1000	150.000	1177.05
6000 x 2500	25.000	196.025	2500 x 1250	150.000	1177.05
6000 x 3000	25.000	196.025	3000 x 1500	150.000	1177.05
8000 x 2000	25.000	196.025
10000 x 2500	25.000	196.025

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of S355j2g3 Sheet and Plates

These S355J2G3 Sheets and Plates are extensively utilized in structural and engineering applications where strength and durability are crucial. You’ll find them in building frames, bridges, cranes, offshore platforms, and wind tower structures. Their superb weldability and capacity to handle dynamic loads make them ideal for pressure vessels, mechanical parts, and structural supports. Additionally, these plates are a popular choice in the fabrication of heavy-duty machinery and construction equipment. Their reliable performance in low temperatures and high-stress situations ensures they remain a trusted material for demanding infrastructure and industrial projects.
