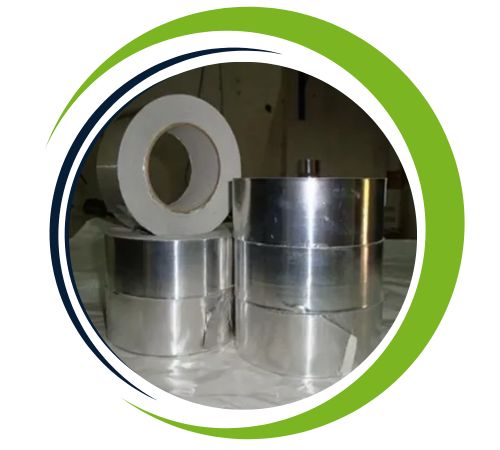

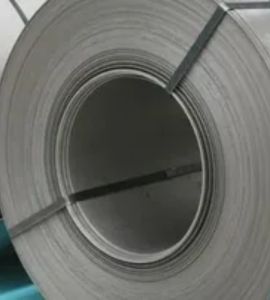

Varun Sheets and Plates Maker and Suppliers Dubai, UAE deals in premium Haynes 25 / L605 Foil with advanced cobalt-based alloy solutions for industries that demand superior strength and resistance to corrosion at high temperatures. Precision manufacturing and rigid quality control are the hallmarks of Varun foils that are of international standard and customer specification. Supplying aerospace, power generation, and chemical industries, we provide on-time delivery and high-performance products throughout the UAE and international markets, serving critical applications with reliable and long-lasting alloy foils.
Haynes 25 / L605 Foil is a cobalt-chromium-tungsten-nickel alloy containing about 51% cobalt, 20% chromium, 15% tungsten, and 10% nickel. This creates very high oxidation resistance, thermal stability, and mechanical strength at temperatures up to 1095°C. The foil has tensile strength of approximately 960 MPa with good ductility and weldability. Following AMS 5537 and ASTM F90 standards, Varun produces Haynes 25 foils in different thicknesses appropriate for complex high-temperature and corrosive environment applications.
| Standard | AMS 5759, AMS 5537 |
| Dimensions : | AMS, AMS, API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat |
| Grade | C% | Si≤ % | Mn≤ % | P≤ % | S≤ % | Cr% | Ni% | Co% | Fe % | W % |
| Haynes 25 / L605 | 0.05-0.15 | 0.40 | 2.00 | 0.02 | 0.015 | 19.0-21.0 | 9.00-11.0 | Rest | ≤ 3.00 | 14.0-16.0 |
| Grade | 0.2% Yield strength Rp ≥ N/mm² | Tensile strength Rm N/mm² | Elongation A5 | Resistant on air up to°C | Modulus of elasticity kN/mm² |
| Haynes 25 / L605 | 345 | 830-1130 | 25 | 1090 | 225 |
| STANDARD | Material No | EN Designation | UNS | Alloy |
| Haynes 25 / L605 | 2.4964 | CoCr20W15Ni | R30605 | 25 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Haynes 25 (L605) foil provides excellent high strength and oxidation resistance, making it ideal for harsh environments including aerospace and industrial applications in particular and excellent fighting strength resist corrosion in harsh environments such as sulfuric and hydrochloric acids ensuring long-term performance. The high creep and fatigue resistance of the alloy makes it suitable for high pressure applications. Also, its excellent weldability and formability enhance construction flexibility. Haynes 25’s ability to stabilize and toughen at temperatures up to 2000°F (1093°C) makes it versatile in a wide range of applications requiring high performance.
