Varun Sheets and Plates Manufacturer and Suppliers in Dubai, UAE is a quality source for high-performance Haynes 230 Sheet and Plate, utilized by industries demanding materials with the ability to withstand extreme temperatures and corrosive conditions. Known for outstanding quality, Varun provides precision-made Haynes 230 products conforming to international quality and customized to specific industrial use. Focusing rigorously on reliability, customer satisfaction, and timely delivery, Varun helps customers in the aerospace, power generation, and chemical processing industries in the UAE and internationally with high-temperature-resistant and long-lasting alloy solutions.

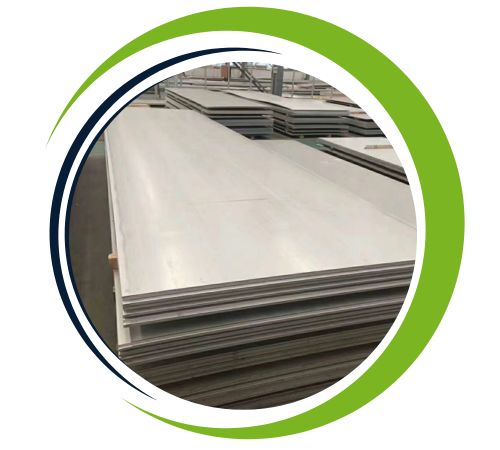

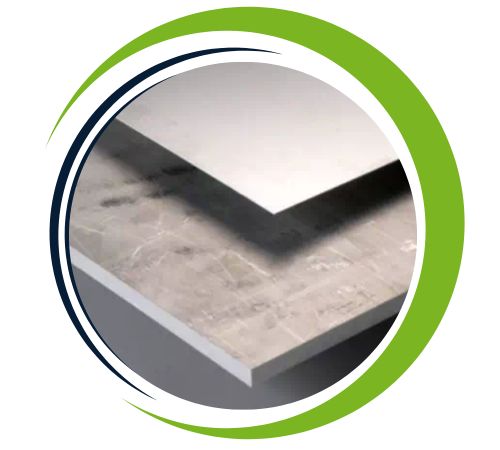

Haynes 230 Sheet and Plate is a nickel-chromium-tungsten-molybdenum alloy possessing outstanding high-temperature strength, oxidation resistance, and thermal stability. Its standard formulation is nickel (around 57%), chromium (22%), tungsten (14%), and molybdenum (2%), which makes it have superior performance above 1100°C. Its tensile strength is about 850 MPa and it retains good ductility even upon prolonged exposure to heat. Produced to ASTM B435 and AMS 5878 specifications, Varun’s Haynes 230 sheets and plates come in a range of thicknesses and sizes to suit critical engineering requirements.
| Specification : | AMS 5878 |
| Standard : | AMS, AMS, API |
| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size : | 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH |
| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade : | Haynes 230 (UNS N06230) |
| Weight% | C | Mn | Si | P | S | Cr | Co | Fe | Al | Ti | B | Cu | La | W | Mo | Ni |
| Haynes 230 | 0.05-0.15 | 0.30-1.0 | 0.25-0.75 | 0.03 | 0.015 | 20.0-24.0 | 5.0 | 3.0 | 0.20-0.50 | 0.10 | 0.015 | 0.50 | 0.005-0.05 | 13.0-15.0 | 1.0-3.0 | Rem |
| Material | Test Temp °F | Ultimate Tensile Strength | 0.2 % Yield Strength | Elongation in % | Hardness HB |
| Haynes Alloy 230 Extruded Bar Solution Treated (AMS 5891) | RT | 758 Mpa 110 ksi | 310 Mpa 45 ksi | 35 | 241 max |
| STANDARD | Material No | UNS | Alloy |
| Haynes 230 | – | R30605 | 230 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Haynes 230 sheets and plates offer exceptional high temperature strength, outstanding oxidation resistance up to 2100°F (1150°C), and excellent carburizing resistance, making them ideal for demanding applications They exhibit creep resistance exhibiting excellent and long-term thermal stability, ensuring durability in extreme environments. These materials are very versatile and are used in gas turbines, heat exchangers, and chemical plants. Their excellent formability and weldability contribute to ease of manufacture. Additionally, the Haynes 230 withstands extreme heat cycles, making it reliable for applications requiring durability and operating at variable temperatures.
