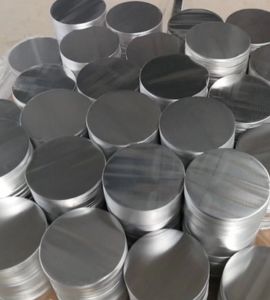

Nickel Alloy 201 Circle

Varun Sheets and Plates is a prime manufacturer and supplier of Nickel Alloy 201 Circles in Dubai, UAE, providing high-purity, low-carbon nickel products designed for utmost corrosion resistance and stability in high-temperature and chemically aggressive conditions. Nickel Alloy 201 is a modification of Alloy 200 with lower carbon content, rendering it suitable for applications where there are elevated temperatures and welding. Varun provides these circles of different diameters and thicknesses according to international standards for smooth quality and accuracy to be used in chemical, marine, power, and electronic industries.

Ni Alloy 201 Circle

Nickel Alloy 201 HR Circle

Nickel Alloy 201 Circle

Nickel Alloy 201 Proof Machined Circle Dealer in Dubai, Nickel Alloy 201 Cut Machined Circle Supplier in Dubai, Alloy 201 Circle Manufacturer in Ras Al Khaimah, 201 Nickel Alloy Circle Stockist, UNS N02201 Alloy Circle Price List in Ajman, 201 Nickel Alloy Circle Supplier in Jebel Ali, Alloy 201 Cold Rolled Circle in Al Ain, 201 Nickel Alloy Hot Rolled Circle Supplier in UAE

Nickel Alloy 201 Circles consist of at least 99% nickel with a maximum of 0.02% carbon content, with minor proportions of iron, manganese, and silicon. This alloy offers a yield strength of about 100 MPa and a tensile strength of approximately 320 MPa. The low carbon content avoids embrittlement due to precipitation of intergranular carbides when using at high temperatures or on welding. Nickel 201 has good electrical and thermal conductivity, resistance to neutral salts and caustic alkalis, and excellent formability.

Nickel Alloy 201 Circle Specification

Standard	ASTM B162, ASME SB162
Dimensions	ASTM, ASME and API
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Thickness	1 Mm To 100 mm.
Diameter	Upto 2000 Mm.
Circle Diameter	3″ DIA up to 38″ DIA 1500 lbs max.
Circles Form	Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Hot Rolled Circle.

201 Nickel Alloy Circle Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni
Nickel 201	0.02 max	0.35 max	0.35 max	0.01 max	0.25 max	0.40 max	99.0 min

Nickel Alloy 201 Circle Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Nickel 201	8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %

Equivalent Grades for 201 Nickel Alloy Circle

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Nickel Alloy 201	2.4068	N02201	NW 2201	NA 12	НП-2	–	LC-Ni 99

ASME SB162 Nickel Alloy 201 Circle Distributor in Ajman, Nickel Alloy 201 CR Circle Supplier in Jebel Ali ,Nickel Alloy 201 HR Circle Supplier in Dubai, Stockist of Nickel Alloy N02201 Circle in Al Ain, ASTM B162 201 Nickel Alloy Circle Supplier in UAE, Nickel Alloy 201 Circle Price List in Ajman, Nickel Alloy 2.4068 Circle Supplier in Al Ain,201 Ni Alloy Proof Machined Circle Exporter in Dubai, Nickel Alloy 201 Circle Exporter in UAE,201 Nickel Alloy Cold Rolled Circle Exporter in Ras Al Khaimah

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Nickel Alloy 201 Circle Manufacturer and Exporter in Dubai, UAE

Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Thickness Chart Of Nickel Alloy 201 Circle

Size	18 G.	19 G.	20 G.	22 G.	24 G.	26 G.
.4.5	.0-107	0-085	0-080	0-062	0.049	0-040
5	0-120	0-095	0-090	0-070	0-055	0-045
5.5	0-146	0-119	0-109	0-085	0-066	0-054
6	0-172	0-136	0-130	0-100	0-079	0-064
6.5	0-200	0-153	0-150	0-128	0-093	0-074
7	0-235	0-190	0-176	0-136	0-107	0-088
7.5	0.270	0.212	0.201	0-157	0-123	0-100
8	0-307	0-240	0-230	0-180	0-140	0-115
8.5	0-347	0-270	0-262	0-202	0-156	0-130
9	0-388	0-330	0-301	0-230	0-178	0-145
9.5	0-472	0-342	0-324	0-252	0-198	0-162
10	0-480	0-380	0-360	0-280	0-220	0-180
11	0-580	0-450	0-435	0-338	0-266	0-218
12	0-690	0-540	0-518	0-403	0-318	0-253
13	0-811	0-640	0-508	0-608	0-371	0-304
14	0-940	0-750	0-708	0-558	0-430	0-352
15	1-080	0-860	0-808	0-650	0-495	0-405
16	1-228	0-960	0-921	0-736	0-563	0-460
17	1-382	1-080	0-940	0-809	0-635	0-560
18	1-595	1-200	1-116	0-907	0-712	0-683
19	1-732	1-350	1-300	1-010	0-794	0-750
20	1-920	1-400	1-340	1-120	0-880	0-785

ASME SB162 Alloy 201 Circles Distributor in UAE, Ni Alloy 201 Forged Circle Exporter in Dubai, Ni Alloy 201 Forged Circle Exporter in Al Ain, 201 Ni Alloy Large Diameter Circle Manufacturer in Dubai, Alloy 201 Plazma Cut Circle Price List in Jebel Ali, Ni Alloy 201 Big Size Circle Distributor in Ras Al Khaimah, 201 Ni Alloy Cut Machined Circle Exporter in Ajman

The nickel alloy 201 circle offers excellent corrosion resistance, especially in environmental reductions, making it ideal for chemical and petrochemical applications It has excellent weldability and can retain mechanical properties at heat exposure floor and size. The alloy is highly resistant to hydrogen embrittlement and stress corrosion cracking, providing durability in harsh applications. Low carbon content reduces carbide precipitation, and increases intergranular corrosion resistance. In addition, the nickel alloy 201 sphere is nonmagnetic and has excellent formability, making it versatile for a wide range of industrial applications.

Types of Nickel Alloy 201 Circle

DIN 2.4068 Ni Alloy Circles in Dubai, 201 Alloy HR Circle Stockist in Ras Al Khaimah,201 Alloy Circles Supplier in Dubai, 201 Nickel Alloy Forged Circle Exporter in Al Ain, ASTM B162 201 Nickel Alloy Circle Price List in Jebel Ali, 201 Nickel Alloy Cut Machined Circle in Ras Al Khaimah, Nickel Alloy 201 Circle Supplier in Dubai, 201 Nickel Alloy Proof Machined Circle Distributor in UAE, Alloy 201 CR Circle Supplier in Jebel Ali

Are Custom Sizes Available for Nickel Alloy 201 Circle?

Yes, we offer custom sizes for Nickel Alloy 201 Circle to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@varunplates.ae

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Nickel Alloy 201 Circle

Nickel Alloy 201 Circles are used extensively in chemical processing equipment, caustic evaporators, marine parts, electrical assemblies, and food-handling systems. With their high purity and superior corrosion resistance, they are ideal for use in applications with strong alkalis, chemicals of high purity, and high-temperature applications. The circles are best suited for the fabrication of parts such as gaskets, flanges, heat shields, and diaphragms in corrosive and sensitive environments. With better weldability and low magnetic response, Nickel 201 Circles provide long-lasting durability and dependability in structural and functional applications in demanding industries.
