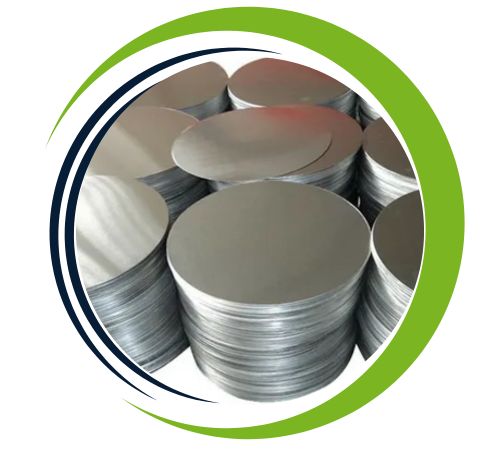

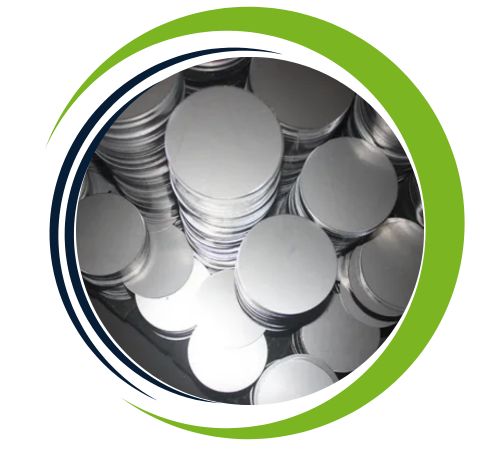

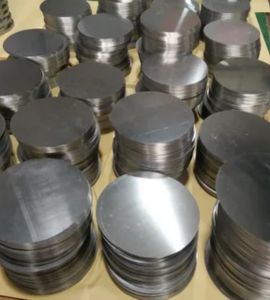

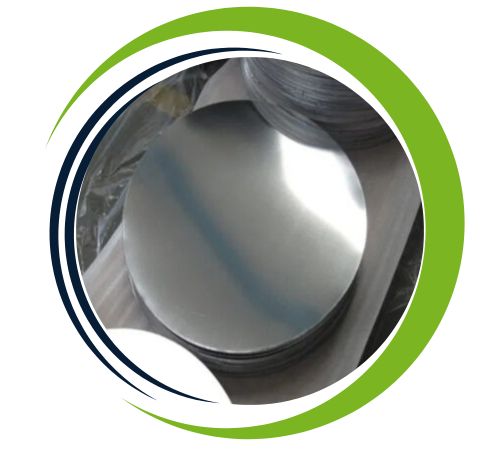

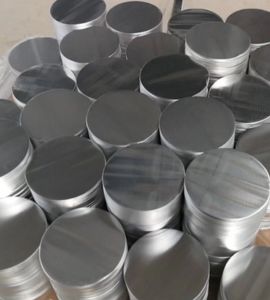

Varun Sheets and Plates is a top manufacturer and supplier of Nickel Alloy 200 Circles in Dubai, UAE, which offers high-purity nickel products to industries that demand superior corrosion resistance and thermal stability. Nickel Alloy 200 Circles are produced from commercially pure nickel, providing superior mechanical strength, electrical conductivity, and ability to withstand a variety of corrosive environments. Varun provides these circles in different diameters and thicknesses, produced in accordance with international quality standards. These are used extensively in chemical processing, marine, electronics, and heat treatment processes for use in the UAE and other countries.
Nickel Alloy 200 Circles contain at least 99.6% pure nickel, iron (up to 0.40%), manganese, carbon, and silicon in small quantities. The alloy has a tensile strength of about 340 MPa and yield strength of 105 MPa. The alloy provides excellent resistance to caustic alkalis, neutral salts, and reducing chemicals. Nickel 200 retains good ductility and impact resistance even at sub-zero temperatures. Its good thermal and electrical conductivity, along with good workability and weldability, make it appropriate for precision-fabricated parts in severe and high-temperature environments.
| Standard | ASTM B162, ASME SB162 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |
| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Hot Rolled Circle. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel Alloy 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Size | 18 G. | 19 G. | 20 G. | 22 G. | 24 G. | 26 G. |
| .4.5 | .0-107 | 0-085 | 0-080 | 0-062 | 0.049 | 0-040 |
| 5 | 0-120 | 0-095 | 0-090 | 0-070 | 0-055 | 0-045 |
| 5.5 | 0-146 | 0-119 | 0-109 | 0-085 | 0-066 | 0-054 |
| 6 | 0-172 | 0-136 | 0-130 | 0-100 | 0-079 | 0-064 |
| 6.5 | 0-200 | 0-153 | 0-150 | 0-128 | 0-093 | 0-074 |
| 7 | 0-235 | 0-190 | 0-176 | 0-136 | 0-107 | 0-088 |
| 7.5 | 0.270 | 0.212 | 0.201 | 0-157 | 0-123 | 0-100 |
| 8 | 0-307 | 0-240 | 0-230 | 0-180 | 0-140 | 0-115 |
| 8.5 | 0-347 | 0-270 | 0-262 | 0-202 | 0-156 | 0-130 |
| 9 | 0-388 | 0-330 | 0-301 | 0-230 | 0-178 | 0-145 |
| 9.5 | 0-472 | 0-342 | 0-324 | 0-252 | 0-198 | 0-162 |
| 10 | 0-480 | 0-380 | 0-360 | 0-280 | 0-220 | 0-180 |
| 11 | 0-580 | 0-450 | 0-435 | 0-338 | 0-266 | 0-218 |
| 12 | 0-690 | 0-540 | 0-518 | 0-403 | 0-318 | 0-253 |
| 13 | 0-811 | 0-640 | 0-508 | 0-608 | 0-371 | 0-304 |
| 14 | 0-940 | 0-750 | 0-708 | 0-558 | 0-430 | 0-352 |
| 15 | 1-080 | 0-860 | 0-808 | 0-650 | 0-495 | 0-405 |
| 16 | 1-228 | 0-960 | 0-921 | 0-736 | 0-563 | 0-460 |
| 17 | 1-382 | 1-080 | 0-940 | 0-809 | 0-635 | 0-560 |
| 18 | 1-595 | 1-200 | 1-116 | 0-907 | 0-712 | 0-683 |
| 19 | 1-732 | 1-350 | 1-300 | 1-010 | 0-794 | 0-750 |
| 20 | 1-920 | 1-400 | 1-340 | 1-120 | 0-880 | 0-785 |
Nickel alloy 200 circle offers many advantages, including excellent corrosion resistance, especially in alkaline and acidic environments, making it ideal for chemical processing and marine applications Maintenance of good machinery at high temperatures , ensuring reliability under difficult circumstances. The alloy has a high thermoelectric conductivity, making it useful in heat exchangers and electrical components. In addition, it has excellent formability and weldability, making it easy to manufacture in a variety of shapes including circular without compromising its strength or durability Its oxidation resistance and ease of maintenance give it versatility continues to grow.
Nickel Alloy 200 Circles find their application in a wide range of products such as the production of caustic soda, chemical storage vessels, marine hardware, electrical contacts, heat shields, and food processing equipment. Due to their corrosion resistance and stability, the circles find excellent applications in applications that comprise strong alkalis, acids, or varying thermal conditions. The circles also find their application in the manufacturing of gaskets, flanges, and other round products that demand strength along with purity. Nickel Alloy 200 provides enduring performance and resistance to deterioration, making it a reliable option for challenging industrial use.
