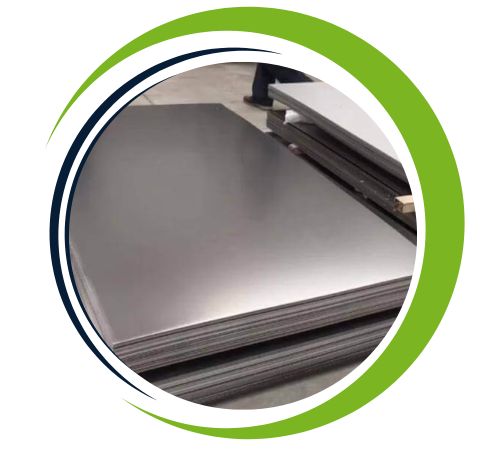

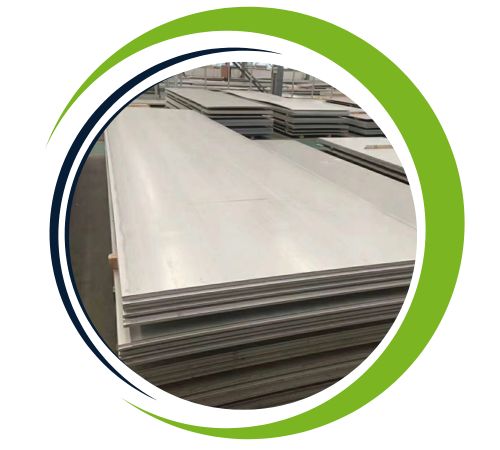

Varun Sheets and Plates is one of the topmost manufacturers and suppliers of Nickel Alloy 200 Sheets and Plates in Dubai, UAE, offering high-purity nickel products for industrial uses that demand outstanding corrosion resistance and superior mechanical performance. Nickel Alloy 200 is a commercially pure wrought grade of nickel with outstanding resistance to reducing chemicals and alkaline media. These sheets and plates are available in various sizes and thicknesses, as per international standards, by Varun. Used by various industries like chemical processing, marine, electronics, and power generation, Varun provides consistent quality, accuracy, and prompt delivery.
Nickel Alloy 200 Sheets and Plates consist of not less than 99.6% of pure nickel, along with minute quantities of iron (max 0.40%), manganese, carbon, and silicon. The alloy provides a tensile strength of around 340 MPa and yield strength of 105 MPa, with excellent toughness and ductility even at cryogenic temperatures. Nickel 200 has superior resistance to dry gases, neutral or alkaline salt solutions, and caustic alkalis. It possesses fine thermal and electrical conductivity, good magnetostrictive properties, and low gas content, making it versatile for various critical applications.
| Specification | ASTM B 906/ASME SB 906, ASME Code Cases 1827 and N-253, SAE/AMS 5540, BS 3072NA14 and 3073NA14, DIN 17750, ISO 6208, EN 10095, MIL-DTL-23228. |
|---|---|
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
| standards and approvals |
|
| Plasma profiles | As per customer’s drawings |
| Value added services | Laser cutting, Waterjet cutting, Plasma cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing. |
| VAS |
|
| Packing | Bundles with waterproof cloth outside or plywood box |
| Test | UT, SGS testing, TUV etc |
| Nickel 200 | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
| 99.0 min | 0.15 max | – | 0.35 max | 0.1 max | 0.4 max | – | 0.01 max | 0.25 max | – |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 21500 , MPa – 148 | Psi – 67000 , MPa – 462 | 45 % |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Nickel 200 | N02200 | 2.4066 | N-100M | Ni 99.2 | NW 2200 | NA 11 | —2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nickel Alloy 200 sheets and plates offer exceptional corrosion resistance, particularly against alkalis, acids, and other harsh environments. Known for their excellent weldability and formability, they maintain good mechanical properties at low and high temperatures. The alloy exhibits high strength and durability, making it ideal for chemical processing, aerospace, and marine applications. Its excellent thermal and electrical conductivity ensures reliable performance in various industrial applications. Its non-magnetic properties add to its versatility, especially in sensitive equipment.
| Nickel Gauge Width and Length | Weight Lbs. per Sq. Ft. | Estimated Weight per Sheet |
|---|---|---|
| 7 ga. (.1874″) x 48 x 120 | 7.871 | 314.8 |
| 10 ga. (.135″) x 48 x 120 | 5.670 | 226.8 |
| 11 ga. (.120″) x 36 x 120 | 5.040 | 151.2 |
| 11 ga. (.120″) x 48 x 96 | 5.040 | 161.3 |
| 11 ga. (.120″) x 48 x 120 | 5.040 | 201.6 |
| 11 ga. (.120″) x 48 x 144 | 5.040 | 241.9 |
| 11 ga. (.120″) x 60 x 96 | 5.040 | 252.0 |
| 12 ga. (.105″) x 36 x 120 | 4.410 | 132.3 |
| 12 ga. (.105″) x 48 x 120 | 4.410 | 176.4 |
| 12 ga. (.105″) x 60 x 120 | 4.410 | 220.5 |
| 14 ga. (.075″) x 36 x 120 | 3.150 | 94.50 |
| 14 ga. (.075″) x 48 x 120 | 3.150 | 126.0 |
| 16 ga. (.060″) x 36 x 120 | 2.520 | 75.60 |
| 16 ga. (.060″) x 48 x 96 | 2.520 | 80.64 |
| 16 ga. (.060″) x 48 x 120 | 2.520 | 100.8 |
| 16 ga. (.060″) x 60 x 120 | 2.520 | 126.0 |
| 18 ga. (.048″) x 36 x 120 | 2.016 | 60.48 |
| 18 ga. (.048″) x 48 x 120 | 2.016 | 80.64 |
| 20 ga. (.036″) x 36 x 120 | 1.512 | 45.36 |
| 20 ga. (.036″) x 48 x 120 | 1.512 | 60.48 |
| 22 ga. (.030″) x 36 x 120 | 1.260 | 37.80 |
| 22 ga. (.030″) x 48 x 96 | 1.260 | 40.32 |
| 22 ga. (.030″) x 48 x 120 | 1.260 | 50.40 |
| 24 ga. (.024″) x 36 x 120 | 1.008 | 30.24 |
| 24 ga. (.024″) x 48 x 120 | 1.008 | 40.32 |
| 26 ga. (.018″) x 36 x 120 | .7560 | 22.68 |
| 26 ga. (.018″) x 48 x 120 | .7560 | 30.24 |
| 28 ga. (.015″) x 36 x 120 | .6300 | 18.90 |
Nickel Alloy 200 Sheets and Plates find broad application in industries demanding high-purity, corrosion-resistant materials that are strong. Typical applications include the manufacture of caustic soda, food processing equipment, marine hardware, chemical storage vessels, electrical and electronic parts, and aerospace components. The alloy performs particularly well under conditions of strong alkalis, elevated temperatures, and changing thermal conditions. Because it contains low gas content and has magnetic properties, it is also suitable for electronic and instrumentation system components. Nickel 200 provides stable performance and long service life under aggressive and high-purity conditions.
