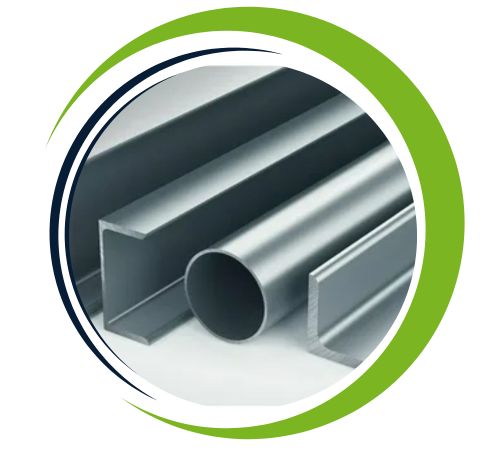

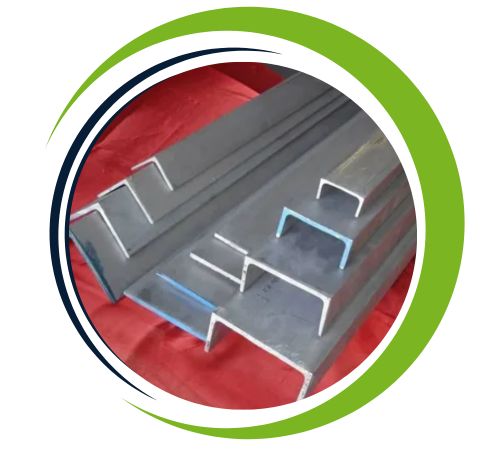

Varun Sheets and Plates is a reliable manufacturer and supplier of premium quality Inconel 718 Channels in Dubai, UAE. With precision engineering and international standards compliance, Varun provides long-lasting nickel alloy products for hostile environments. Our channels made of Inconel 718 are produced with advanced methods to have superior mechanical strength, corrosion resistance, and reliability. Supporting various industries, Varun offers strong and high-performance Inconel 718 channels ideal for applications in critical structural and engineering purposes in the Middle East and elsewhere.
Inconel 718 Channels consist mainly of nickel (50-55%), chromium (17-21%), iron, niobium, molybdenum, and trace amounts of aluminum and titanium. This special alloy has outstanding tensile strength of up to 1,270 MPa, yield strength of about 1,040 MPa, and exceptional creep and fatigue resistance at high temperatures. The channels have great toughness and corrosion resistance and are suitable for high-stress and high-temperature use.
Specifications : ASTM B637 / ASME SB637
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 718 | 2.4668 | N07718 |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockiest of high-quality metal products, including sheets, plates, coils, foils, angles, channels, circles, and slitting coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 718 channels offer several key advantages, making them highly suitable for demanding applications. The alloy provides exceptional resistance to oxidation, corrosion, and scaling at elevated temperatures, ensuring longevity and durability. It maintains excellent strength and stability, even at high temperatures up to 700°C, making it ideal for aerospace and industrial applications. Inconel 718 also exhibits superior weldability, fatigue resistance, and formability. Its ability to withstand extreme thermal cycling and mechanical stress further enhances its reliability, ensuring optimal performance in harsh environments like gas turbines, chemical processing, and high-temperature manufacturing.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel 718 Channels (kilogram/meter) | Inconel 718 Channels Sizes (all Dimensions in milimeter) | Approx Weight Inconel 718 Channels (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Inconel 718 Channel to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@varunplates.ae
Inconel 718 Channels are extensively applied in the aerospace, power generation, nuclear reactors, and chemical processing sectors. They are best suited for the production of structural supports, engine parts, turbine components, and other high-performance engineering products demanding enhanced strength and resistance to oxidation and corrosion. Their superior weldability and formability enable them to be extremely versatile for intricate designs and critical components that work under harsh conditions.
