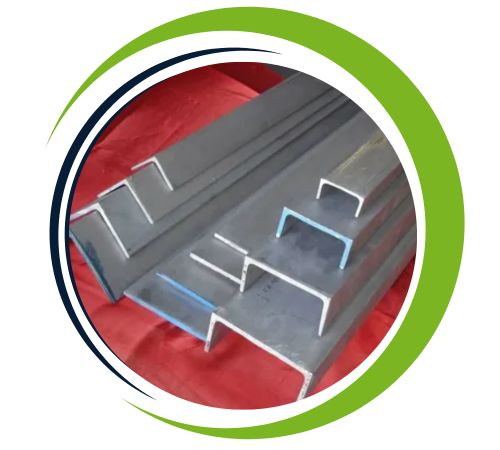

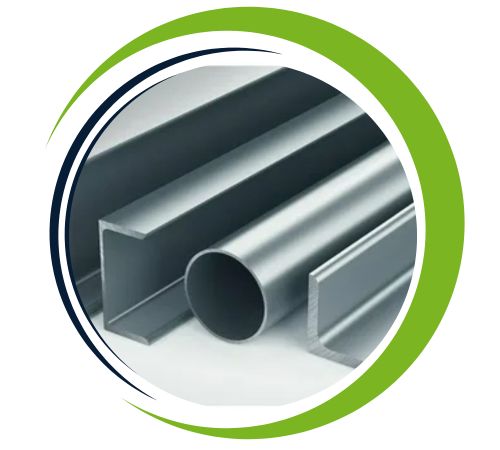

Varun Sheets and Plates Manufacturer and Suppliers in Dubai, UAE, offers high-performance **Inconel 601 Channels**, designed for uses where higher resistance to heat and corrosion is needed. Produced using a nickel-chromium alloy having superior metallurgical stability, these channels are suitable for application in severe conditions like thermal processing and chemical plants. Varun provides Inconel 601 Channels of different sizes and bespoke lengths, with accuracy, reliability, and adherence to global standards. Renowned in the UAE and around the world, Varun supplies quality products with prompt service and professional technical assistance for demanding infrastructure and industrial applications.
Inconel 601 Channels consist of about 58–63% nickel, 21–25% chromium, and aluminum, iron, and trace elements additions, which offer oxidation and high-temperature corrosion resistance. These channels possess mechanical characteristics like tensile strength of approximately 650 MPa, yield strength of approximately 300 MPa, and elongation of 30% for superior formability. Brinell hardness is generally between 160–200 HB. Varun’s Inconel 601 Channels are accurately shaped for dimensional stability, superior thermal strength, and long service life in harsh and cyclic thermal conditions.
Specifications : ASTM B166 / ASME SB166
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Grade | C | Mn | Si | Cu | S | Fe | Mo | Ni | Cr |
| Inconel 601 | 0.10 max | 1 max | 0.50 max | 1 max | 0.15 min | balance | – | 58.0-63.0 | 21.0–25.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including sheets, plates, coils, foils, angles, channels, circles, and slitting coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 601 Channels offer several advantages, making them ideal for high-temperature and corrosive environments. Their exceptional oxidation and carburization resistance at temperatures up to 2200°F (1200°C) ensure long-lasting performance in extreme conditions. The alloy’s high tensile strength, excellent fatigue and thermal-fatigue strength, and resistance to various corrosive media, including sulfur compounds, provide reliable durability. Inconel 601 also demonstrates good weldability and formability, making it versatile for various applications. These properties make it suitable for industries like aerospace, chemical processing, and power generation, where materials are subjected to high heat and stress.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) | Inconel Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Inconel 601 Channel to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@varunplates.ae
