Aluminium Sheets and Plates

Varun Sheets and Plates, located in Dubai, UAE, is a leading manufacturer and supplier of high-quality Aluminium Sheets and Plates. Renowned for their strength, lightweight properties, and versatility, these aluminium products are ideal for applications in industries such as construction, automotive, aerospace, and marine. Committed to excellence, Varun Sheets and Plates ensures precision engineering and superior performance in every product. Their dedication to quality and customer satisfaction makes them a trusted choice for aluminium solutions in the UAE and beyond.

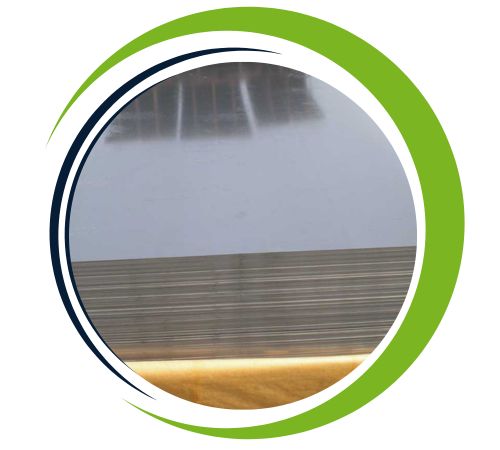

Aluminium Cold Rolled Plates

Aluminium Hot Rolled Plates

Aluminium Shim Sheets

Aluminium Sheets Dealer in Dubai, Aluminium Hot Rolled (HR) Sheet & Plates Supplier in Dubai, Aluminium Sheets in Ras Al Khaimah, Aluminium Plates Size Chart, Aluminium Sheet Price in Ajman, Aluminium Cold Rolled (CR) Sheet Supplier in Jebel Ali, Aluminium Sheet Stockist in Al Ain, Aluminium Sheets and Plates Exporter in UAE, Aluminium Sheet Stockist in Dubai, Aluminium Plates Supplier in Al Ain

Aluminium Sheets and Plates are composed primarily of aluminum (typically 90-99%), with small amounts of elements like silicon, magnesium, manganese, copper, and zinc to enhance specific properties. These alloys offer a balance of strength, corrosion resistance, and lightweight characteristics. Mechanically, aluminium sheets and plates exhibit tensile strengths ranging from 70 MPa to over 500 MPa, depending on the alloy grade. They are highly ductile, providing excellent formability, and have good thermal and electrical conductivity. Their lightweight nature and durability make them ideal for diverse industrial and commercial applications.

Aluminium Sheet and Plates Specification

Specifications	ASTM / ASME SB209
Size	1000 mm x 60610 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 60610 mm x 60610 mm, 60610 mm x 4000 mm
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Thickness	0.1 to 12 mm Thk
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Aluminium Sheets Price in Ajman, Aluminium Hot Rolled Weight Chart, Aluminium Cold Rolled Supplier in Jebel Ali, Stockist of Aluminium Cold Rolled Sheets in Al Ain, Aluminium Perforated Sheet Supplier in UAE, Aluminium Perforated Plates Price List in Dubai, Aluminium Perforated Plates Supplier in Al Ain, Aluminium Chequered Plates Exporter in Dubai, Aluminium Polished Plates Exporter in UAE, Aluminium Perforated Plates Exporter in Ras Al Khaimah, Aluminium Sheet and Plate in Ajman

Aluminium Sheet and Plates Chemical Composition

Alloy	% Si	% Cu	% Fe	% Mg	% Mn	% Cr	% Zn	% Ti	% Others	% Al
EN AW-1050 A	0.25 Maximum	0.05 Maximum	0.40 Maximum	0.05 Maximum	0.05 Maximum		0.07 Maximum	0.05 Maximum		99.5 Min
EN AW-1070 A	0.20 Maximum	0.03 Maximum	0.25 Maximum	0.03 Maximum	0.03 Maximum		0.07 Maximumimum	0.03 Maximum		99.7 Min
EN AW-1100	Si+Fe 0.95 Maximum	0.05 – 0.20			0.05 Maximum		0.10 Maximum	0.05 Maximum		99.0 Min
EN AW-2011	0.40 Max	5.00 – 6.00	0.70 Max				0.30 Max		Bi : 0.20 – 0.60 Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	3.90 – 5.00	0.70 Max	0.20 – 0.80	0.40 – 1.20	0.10 Max	0.25 Max	0.15 Max		Remainder
EN AW-2024	0.50 Max	3.80 – 4.90	0.50 Max	1.20 -1.80	0.30 – 0.90	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	0.05 – 0.20	0.70 Max		1.00 – 1.50		0.10 Max		0.15 Max	Remainder
EN AW-3103	0.50 Maximum	0.10 Maximum	0.70 Maximum	0.30 Maximum	0.90 – 1.50	0.10 Maximum	0.20 Maximum	0.10 Maximum		Remainder
EN AW-6101A	0.30 – 0.7	0.05 Maximum	0.40 Maximum	0.40 – 0.90	0.03 Maximum				0.10 Maximum	Remainder
EN AW-6005	0.60 – 0.90	0.10 Max	0.35 Max	0.40 – 0.60	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6351	0.70 – 1.30	0.10 Maximum	0.50 Maximum	0.40 – 0.80	0.40 – 0.80		0.20 Maximum	0.20 Maximum	0.15 Maximum	Remainder
EN AW-6060	0.30 – 0.60	0.10 Maximum	0.10 – 0.30	0.35 – 0.60	0.10 Maximum	0.05 Maximum	0.15 Maximum	0.10 Maximum		Remainder
EN AW-6061	0.40 – 0.80	0.15 – 0.40	0.70 Max	0.80 – 1.20	0.15 Max	0.04 – 0.35	0.25 Max	0.15 Max		Remainder
EN AW-6063	0.20 – 0.60	0.10 Max	0.35 Max	0.45 – 0.90	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6082	0.70 – 1.30	0.10 Max	0.50 Max	0.60 -1.20	0.40 – 1.00	0.25 Max	0.20 Max	0.10 Max		Remainder

Aluminium Sheet and Plates Mechanical Properties

Alloy	Temper	Yield Strength (Mpa)		UTS (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A Sheet	F	20		60		23
EN AW-1050 A Sheet	O	20		60	95	23
EN AW-1070 A	F	20		60		23
EN AW-1100	O			75	110	25
EN AW-2011 Sheet	T4	125		275		12
EN AW-2011 Sheet	T6	230		310		6
EN AW-2014	O		135		250	10
	T4	230		370		11
	T6	370		415		5
EN AW-2024 Perforated Sheet	O		150		250	10
	T3,T3510,T3511	290		395		6
	T8,T8510,T8511	380		455		4
EN AW-3003 Mesh Sheet	F	35		95		20
EN AW-3003 Mesh Sheet	O	35		95	135	20
EN AW-3103 Sheets	F	35		95		20
EN AW-3103 Sheets	O	35		95	135	20
EN AW-6101A Shim Sheet	T6	170		200		8
EN AW-6005 Sheet	T4	90		180		13
EN AW-6005 Sheet	T6	225		270		6
EN AW-6351 Sheet	O		110		160	12
	T4	110		205		12
	T6	250		290		6
EN AW-6060	T4	60	14	120		12
	T5	120		160		6
	T6	150		190		6
	T64	120		180		10
	T66	160		215		6
EN AW-6061	O		110		150	14
	T4	110		180		13
	T6	240		260		6
EN AW-6063	O				130	16
	T4	65		130		12
	T5	130		175		6
	T6	170		215		6
	T66	200		245		6
EN AW-6082	O		110		160	12
	T4	110		205		12
	T5	230		270		6
	T6	250		290		6

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Aluminium Sheet and Plates Manufacturer and Exporter in Dubai, UAE

Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Aluminium Clad Sheets Distributor in UAE, Aluminium Perforated Plates Supplier in Dubai, Aluminium Perforated Sheet Weight Chart, Aluminium Plate Exporter in Al Ain, Aluminium Polished Sheets Manufacturer in Dubai, Aluminium Shim Sheet and Plate Price List in Jebel Ali, Aluminium Chequered Plates Sizes in mm, Aluminium Hot Rolled Plate Distributor in Ras Al Khaimah, Aluminium Sheets and Plates Ajman

Aluminium Sheets and Plates offer numerous advantages, including excellent strength-to-weight ratio, making them ideal for lightweight yet durable applications. They are highly resistant to corrosion, especially in harsh environments, thanks to a natural oxide layer that protects the surface. Aluminium’s versatility allows for easy fabrication, welding, and machining, making it suitable for various industries like automotive, aerospace, and construction. Additionally, aluminium plates have excellent thermal and electrical conductivity, along with good formability, which enables their use in a wide range of applications, from structural components to heat exchangers.

Types of Aluminium Sheet and Plates

Aluminium Plates Manufacturer in Dubai, Aluminium Plates & Sheets in Ras Al Khaimah, Aluminium Mirror Finish Plates Supplier in Dubai, Aluminium Polished Plates Exporter in Al Ain, Aluminium Chequered Plates Price List in Jebel Ali, Aluminium Cold Rolled Plate Distributor in Ras Al Khaimah, Aluminium Clad Plates and Sheets Supplier in Dubai, Aluminium Sheet and Plate Distributor in UAE, Aluminium Perforated Plate Sizes in mm

Are Custom Sizes Available for Aluminium Sheet and Plates?

Yes, we offer custom sizes for Aluminium Sheet and Plates to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Aluminium Sheet and Plates Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Aluminium	3.1254	A96082

Aluminium Sheet and Plates Sizes

AL Sheet Size (In Inches)		Roofing Sheet Size (In milimeter)
.125″	.875″	3.18	22.2
.134″	1″	3.40	25.4
.156″	1.125″	3.96	28.6
.187″	1.250″	4.75	31.8
.250″	1.500″	6.35	38.1
.312″	1.750″	7.92	44.5
.375″	2″	9.53	50.8
.500″	2.500″	12.7	63.5
.625″	3″	15.9	76.2
.750″		19.1

Application Industry of Aluminium Sheet and Plates

Aluminium Sheets and Plates are widely used across various industries due to their strength, lightweight, and corrosion-resistant properties. In the aerospace and automotive sectors, they are used for body panels, structural components, and heat exchangers. In construction, aluminium plates are used for roofing, siding, and flooring. They are also essential in manufacturing marine vessels, electrical equipment, and packaging materials. Aluminium sheets and plates are used in industries like transportation, electronics, food processing, and machinery, offering versatility and performance for a wide range of commercial and industrial applications.
