Aluminium 5086 Plates and Sheets

Varun Sheets and Plates is a reputable manufacturer and supplier of Aluminium 5086 Plates and Sheets based in Dubai, UAE. We pride ourselves on delivering top-notch aluminium products that are specifically designed for tough industrial and marine applications. Aluminium 5086 is particularly well-regarded for its outstanding corrosion resistance, especially in saltwater, making it a perfect choice for structural and transportation projects. At Varun Sheets and Plates, we offer custom sizes, maintain consistent quality, and ensure timely delivery to cater to the varied needs of our clients. Our dedication to precision, durability, and customer satisfaction has established us as a go-to supplier of aluminium solutions throughout the UAE and beyond.

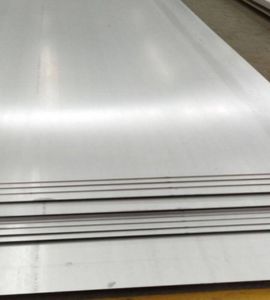

Aluminium 5086 Cold Rolled Plates

Aluminium 5086 Hot Rolled Plates

Aluminium 5086 Shim Sheets

Aluminium Sheets 5086 Dealer in Dubai, Aluminium Shim Sheets 5086 Supplier in Dubai, Aluminium Sheets 5086 in Ras Al Khaimah, Aluminium 5086 HR Sheets Size Chart, Aluminium Sheet 5086 Price in Ajman, Aluminium Cold Rolled Plates 5086 Supplier in Jebel Ali, Aluminium 5086 Industrial Sheets Stockist in Al Ain, Aluminium Sheets and Plates 5086 Exporter in UAE, Aluminium Sheet 5086 Stockist in Dubai, Aluminium 5086 Cold Forming Sheets Supplier in Al Ain

Aluminium 5086 Plates and Sheets are primarily composed of Aluminium (about 94.4%), Magnesium (3.5–4.5%), Manganese (0.2–0.7%), along with small amounts of Chromium, Iron, and Silicon. While this alloy isn’t heat-treatable, it does become stronger through strain hardening. It boasts a tensile strength of 240–330 MPa, a yield strength that ranges from 110–280 MPa depending on the temper, and an elongation of 10–20%. This combination of strength, corrosion resistance, and weldability makes it an excellent choice for structural applications.

Aluminium 5086 Plates and Sheets Specification

Standards	ASTM B209 / ASME SB209
Temper	O,H12,H14,H16,H18,H19,H22,H24
Thickness	0.2-50
Width	100-2600
Length	500-10000
Surface	Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish	Mill, Customer specific finish
Aluminum Sheet/ Plate Coating	PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type	Hot-Rolled (HR) / Cold-Rolled (CR) Sheet

Aluminium Sheets 5086 Price in Ajman, Aluminium Hot Rolled Sheet 5086 Weight Chart, Aluminium Cold Rolled Plates 5086 Supplier in Jebel Ali, Stockist of Aluminium Cold Rolled Sheets 5086 in Al Ain, Aluminium Perforated Sheet 5086 Supplier in UAE, Aluminium Perforated Plates 5086 Price List in Dubai, Aluminium 5086 Cold Forming Sheets Supplier in Al Ain, Aluminium Chequered Plates 5086 Exporter in Dubai, Aluminium Polished Plates 5086 Exporter in UAE, Aluminium Perforated Plates 5086 Exporter in Ras Al Khaimah, Aluminium Sheet and Plate 5086 in Ajman

Aluminium 5086 Plates and Sheets Chemical Composition

Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others, each	Others, total	Al
0.4	0.5	0.1	0.20-0.70	3.5-4.5	0.05-0.25	0.25	0.15	0.05	0.15	Balance

Aluminium 5086 Plates and Sheets Mechanical Properties

Proof Stress	Tensile Strength	Hardness Brinell	Elongation
125 Min MPa	275 – 350 MPa	75 HB	12 Min %

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Aluminium 5086 Plates and Sheets Manufacturer and Exporter in Dubai, UAE

Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including sheets, plates, coils, foils, angles, channels, circles, and slitting coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Aluminium Plates 5086 Manufacturer in Dubai, Aluminium Plates Sheets 5086 in Ras Al Khaimah, Aluminium Mirror Finish Plates 5086 Supplier in Dubai, Aluminium Polished Plates 5086 Exporter in Al Ain, Aluminium Chequered Plates 5086 Price List in Jebel Ali, Aluminium Cold Rolled Plate 5086 Distributor in Ras Al Khaimah, Aluminium Clad Plates and Sheets 5086 Supplier in Dubai, Aluminium Sheet and Plate 5086 Distributor in UAE, Aluminium Perforated Plate 5086 Sizes in mm

Aluminium 5086 Sheets and Plates offer several key advantages, making them a preferred choice in various industries. They provide excellent corrosion resistance, particularly in marine environments, and are highly resistant to seawater and chloride stress. This alloy also offers exceptional strength, making it suitable for structural applications, including marine and aerospace industries. Aluminium 5086 is highly weldable, ensuring ease of fabrication, while its ability to maintain strength at both high and low temperatures adds to its versatility. Additionally, it is lightweight, durable, and requires minimal maintenance, reducing operational costs.

Types of Aluminium 5086 Plates and Sheets

Aluminium Clad Sheets 5086 Distributor in UAE, Aluminium Perforated Plates 5086 Supplier in Dubai, Aluminium Perforated Sheet 5086 Weight Chart, Aluminium Plate 5086 Exporter in Al Ain, Aluminium Polished Sheets 5086 Manufacturer in Dubai, Aluminium Shim Sheet and Plate 5086 Price List in Jebel Ali, Aluminium Chequered Plates 5086 Sizes in mm, Aluminium Hot Rolled Plate 5086 Distributor in Ras Al Khaimah, Aluminium Sheets and Plates 5086 Ajman.

Are Custom Sizes Available for Aluminium 5086 Plates and Sheets?

Yes, we offer custom sizes for Aluminium 5086 Plates and Sheets to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@varunplates.ae

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Aluminium 5086 Plates and Sheets Equivalent Grades

European Standard	OLD	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)
AW-AlMg4	AG4MC	3.3545	A95086	AlMg4	5086	AlMg4Mn

Aluminium 5086 Plates and Sheets Sizes

Properties	Metric	Imperial
Tensile strength	130 MPa	18855 psi
Yield strength	125 MPa	18130 psi
Shear strength	83 MPa	12039 psi
Fatigue strength	55 MPa	7977 psi
Elastic modulus	70-80 GPa	10153-11603 ksi
Poisson’s ratio	0.33	0.33
Elongation	10%	10%
Hardness	35	35

Application Industry of Aluminium 5086 Plates and Sheets

You’ll find Aluminium 5086 Plates and Sheets widely used in the marine and offshore industries for boat hulls, deck structures, and shipbuilding, thanks to their exceptional resistance to seawater corrosion. They’re also popular in the transportation sector, appearing in truck trailers, rail cars, and even vehicle armor. In structural engineering, 5086 is utilized for bridges, storage tanks, and pressure vessels. Moreover, this alloy is well-suited for cryogenic applications and fuel storage due to its performance in low temperatures and overall durability, making it a versatile and dependable option for critical industrial projects.
