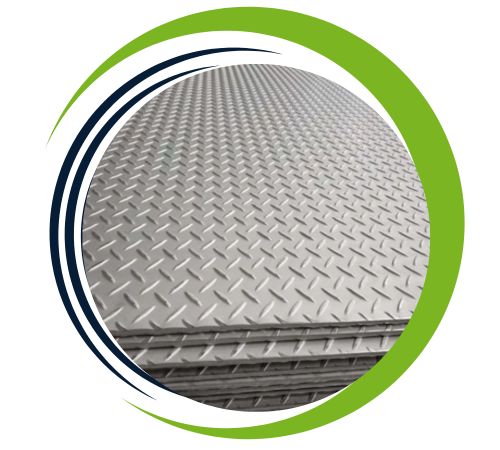

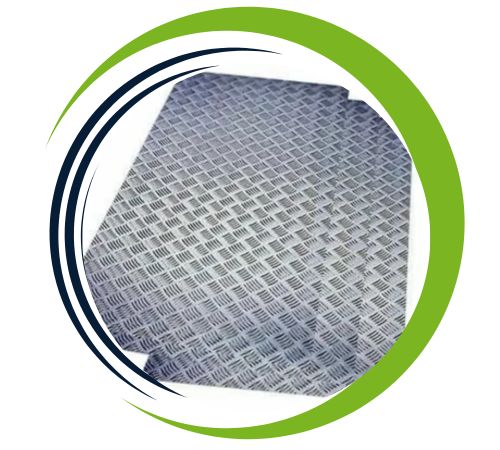

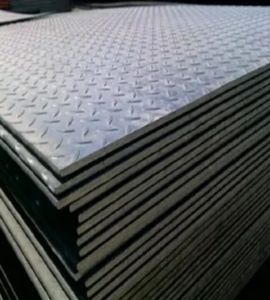

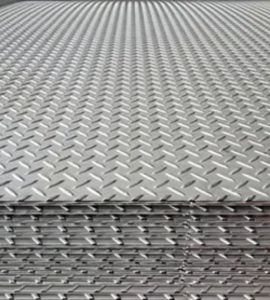

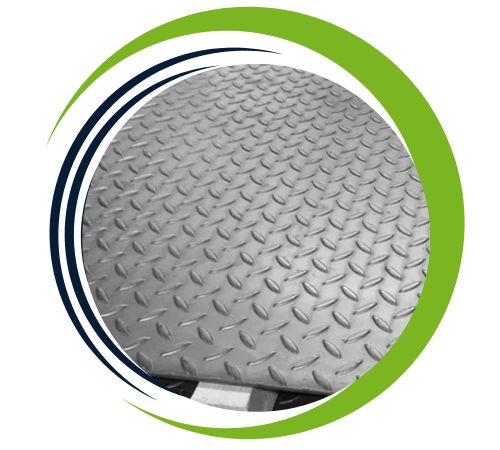

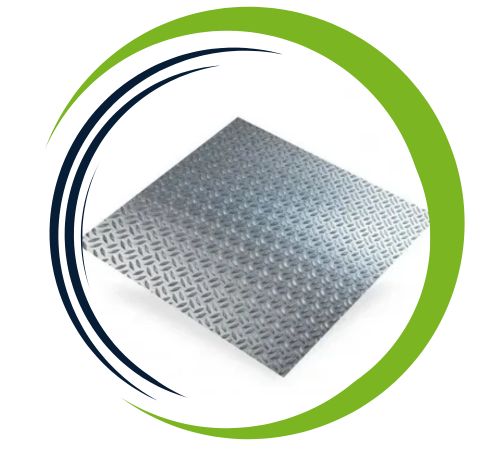

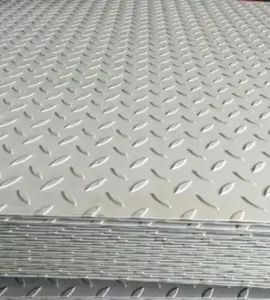

Varun Sheets and Plates, a well-respected name in Dubai, UAE, stands out as a top manufacturer and supplier of high-quality Stainless Steel Chequered Sheets and Plates. Crafted for durability, slip resistance, and visual appeal, these products are perfect for both structural and decorative uses. Varun employs cutting-edge technology and follows international standards to ensure that their chequered sheets come with precise dimensions and flawless surface finishes. With a strong commitment to quality, customization, and timely delivery, Varun Sheets and Plates caters to clients in the construction, transport, marine, and industrial sectors, offering unmatched reliability and performance.
Stainless Steel Chequered Sheets and Plates are generally made from grades like SS 304, 316, and 430. Their composition features chromium (18–20%), nickel (8–10.5% for austenitic grades), along with trace amounts of manganese and carbon, which provide excellent corrosion resistance and strength. These sheets have a density of 7.9 g/cm³, a tensile strength ranging from 515–620 MPa, and good ductility. The raised patterns, such as diamond or tear-drop designs, enhance grip, making them ideal for non-slip surfaces in various industrial environments.
Specifications : ASTM A182 / ASME SA182
Standard : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1000mm x 2000mm, 1000mm x 2500mm, 1220mm x 2440mm, 1250mm x 2500mm, 1500mm x 3000mm
Thickness : 3mm – 5mm.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Grade : 304, 304L, 304H, 316, 316L, 317, 317L, 321, 310, 347, 904L Wire Mesh / Wire Netting ETC.
| Grade | C | Mn | P | S | Si | Cr | N | Ni | Fe |
| SS Chequered 304 Plates | 0.07max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | – | min: 8.0 max: 10.5 | – |
| SS Chequered 304L Sheets | 0.03max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | 0.10 max | min: 8.0 max: 12.0 | – |
| SS Chequered 304H Plate | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | 0.75 max | 2.0 max | min: 0.04 max:0.10 | 0.045 max | 0.10 max | 0.03 max | – |
| SS Checkered 316 Sheets | Min | – | – | 0 | – | – | 10.0 | 16.0 | – |
|---|---|---|---|---|---|---|---|---|---|
| Max | 0.08 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Checker 316L Plates | Min | – | – | – | – | – | 10.0 | 16.0 | – |
| Max | 0.03 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Chequered 316H Sheet | Min | 0.04 | 0 | – | 0.04 | – | 10.0 | 16.0 | – |
| max | 0.10 | 0.75 | 0.045 | 0.10 | 0.03 | 14.0 | 18.0 | – |
| Grade | Density | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point | Elongation |
| Stainless Steel 304 / 304L Checkered Plate | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 304H Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 40 % |
| Stainless Steel 310 Checker Plate | 7.9 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1402 °C (2555 °F) | 40 % |
| Stainless Steel 316 Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 316L Checker Plate | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1399 °C (2550 °F) | 35 % |
| Stainless Steel 317 Checker Sheets | 7.9 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 321 Checkered Plates | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1457 °C (2650 °F) | 35 % |
| Stainless Steel 347 Checker Sheets | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1454 °C (2650 °F) | 35 % |
| Stainless Steel 904L Checker Plate | 7.95 g/cm3 | Psi 32000, MPa 220 | Psi 71000, MPa 490 | 1350 °C (2460 °F) | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 304 | 1.4301 | S30400 |
| SS 304L | 1.4306 / 1.4307 | S30403 |
| SS 304H | 1.4301 | S30409 |
| SS 310 | 1.4841 | S31000 |
| SS 310S | 1.4845 | S31008 |
| SS 310H | – | S31009 |
| SS 316 | 1.4401 / 1.4436 | S31600 |
| SS 316L | 1.4404 / 1.4435 | S31603 |
| SS 316H | 1.4401 | S31609 |
| SS 316Ti | 1.4571 | S31635 |
| SS 317 | 1.4449 | S31700 |
| SS 317L | 1.4438 | S31703 |
| SS 321 | 1.4541 | S32100 |
| SS 321H | 1.4878 | S32109 |
| SS 347 | 1.4550 | S34700 |
| SS 347H | 1.4961 | S34709 |
| SS 904L | 1.4539 | N08904 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless Steel Chequered Sheets and Plates offer several advantages, including enhanced slip resistance, which is ideal for floors, stairs, and walkways. Their durability and corrosion resistance ensures long-lasting performance in harsh environments. The unique pattern provides aesthetic appeal and functionality, improving traction in wet or oily conditions. They are lightweight yet strong, ensuring easy handling and installation. They are also low-maintenance, easy to clean, and versatile, and they are widely used in industries like construction, automotive, and marine for decorative and functional purposes.
| Thickness | Plate Weight per Unit Area | Density |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
These Stainless Steel Chequered Sheets and Plates are widely utilized across different industries due to their strength, corrosion resistance, and non-slip characteristics. In construction, they are commonly used as flooring for stairs, ramps, walkways, and platforms. In the transportation sector, they find applications in truck beds, trailers, and bus flooring to improve safety. The marine industry benefits from their anti-corrosive and anti-skid features, making them suitable for docks and ship decks. Additionally, these sheets are essential in food processing plants, chemical facilities, and public infrastructure, where hygiene, durability, and safety are paramount.
