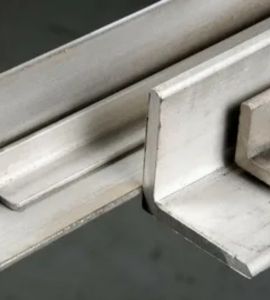

Varun Sheets and Plates is a prominent producer and dealer of Nickel Alloy 200 Angles in Dubai, UAE, providing high-quality structural components made of commercially pure nickel. Renowned for its superior mechanical properties and superior resistance to corrosive environments, Nickel 200 is suitable for chemical processing structural use in marine and electronic industries. The Nickel 200 Angles offered by Varun Sheets and Plates are precision-engineered, in multiple sizes and thicknesses, and are designed according to international standards of quality to function effectively with consistent performance over long periods of operation under challenging conditions.
Nickel Alloy 200 is alloyed with a minimum content of 99.6% pure nickel with minute percentages of iron, carbon, manganese, and silicon. It. provides excellent resistance towards caustic alkalis, alkaline and neutral. salt solutions, and dry. gases and, therefore, can be used in rigorous chemical environments. The alloy has good mechanical. properties with approximately 55,000 psi tensile strength,. excellent electrical and thermal. conductivity, and excellent. ductility. It also maintains its properties over a broad range of temperatures, from cryogenic temperatures to 600°F (315°C), and stays non-magnetic in the annealed condition.
Specifications : ASTM B160 / ASME SB160
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nickel Alloy 200 Angle offers excellent corrosion resistance, particularly against alkaline solutions, fresh water, and organic acids. Its high strength and durability make it ideal for harsh industrial environments, including chemical processing, marine, and aerospace applications. The alloy maintains its mechanical properties at elevated temperatures and resists oxidation, ensuring long-lasting performance. It also provides excellent weldability and formability, making fabricating various shapes easy. Its non-magnetic properties enhance its versatility in electronics and other precision applications, offering reliable performance in demanding conditions.
Nickel Alloy 200 Angles are extensively utilized in structural and support applications in industries where strength and chemical resistance are paramount. In chemical processing, they find application in frameworks, supports, and structural elements for tanks, reactors, and heat exchangers. In marine applications, they find their place in shipbuilding and offshore platforms because of their strength against seawater corrosion. The electronics industry applies Nickel 200 Angles to manufacture non-magnetic support frames and conductive frames. Nickel 200 Angles are also used in food processing, aerospace, and pharmaceutical industries where structure, purity, and corrosion resistance are critical.
