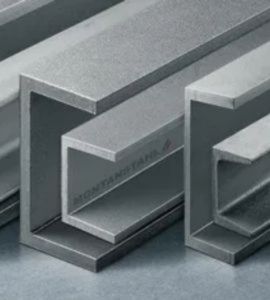

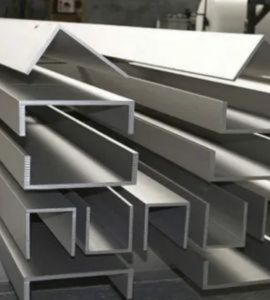

Varun Plates and Sheets Manufacturer and Suppliers in Dubai, UAE, supplies premium Incoloy Channels, designed for critical industrial applications that require superior corrosion resistance and mechanical strength. Incoloy Channels are produced from high-quality nickel-iron-chromium alloys and can be used in oxidizing and reducing conditions as well as in high-temperature and acidic environments. Varun supplies Incoloy Channels in different sizes, grades (like Incoloy 800, 800H, and 825), and as per custom specifications to comply with international standards. Renowned for quality, precision production, and prompt delivery, Varun caters to various industries in the UAE such as petrochemical, power generation, marine, and chemical processing.
Incoloy Channels consist mainly of nickel (30–46%), iron (up to 50%), chromium (19–23%), and alloying constituents like molybdenum, copper, and titanium depending on grade. These channels display high mechanical characteristics, with tensile strength between 500–700 MPa, yield strength of 250–350 MPa, and elongation of 30–45%. The Brinell hardness ranges from 150–200 HB. Varun’s Incoloy Channels resist heat and corrosion and provide structural integrity and life in aggressive conditions, specifically where ordinary stainless steel would perish.
Specifications : ASTM B408 / ASME SB408
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Incoloy Channel offers several advantages, including exceptional resistance to high-temperature oxidation, corrosion, and sulfur-containing environments. Its high nickel and chromium content provides superior strength and stability, even under extreme thermal conditions. The alloy is highly resistant to stress corrosion cracking and maintains its mechanical properties at elevated temperatures, making it ideal for demanding applications in aerospace, chemical processing, and power generation. Additionally, Incoloy Channel has excellent weldability and fabricability, ensuring versatility in complex designs. Its durability and performance in harsh environments make it a reliable choice for critical industries.
Yes, we offer custom sizes for Incoloy Channel to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@varunplates.ae
Incoloy Channels have broad applications in industries with components that are subjected to aggressive chemicals, high pressures, and alternating temperatures. Uses incorporate structural frames of heat exchangers, chemical reactors, marine equipment, pollution control systems, and nuclear reprocessing facilities. Channels are also critically used in oil and gas refineries, acid producing units, and thermal processing equipment. Their excellent resistance to pitting and stress corrosion cracking makes them well-suited for application in offshore and coastal environments. Varun’s Incoloy Channels offer reliable structural support, corrosion protection, and extended service life in the harshest industrial applications.
