Incoloy 825 Sheets and Plates

Varun Sheets and Plates is a reliable manufacturer and supplier of Incoloy 825 Sheets and Plates in Dubai, UAE, catering to both domestic and global markets with high-quality nickel alloy products. Renowned for our accuracy, reliability, and customer-centric attitude, we provide Incoloy 825 Sheets and Plates that provide superior corrosion resistance, particularly in acidic and oxidizing environments. Produced from superior processes and rigorous quality checks, our products find extensive application in industries like chemical processing, marine engineering, pollution control, and oil and gas. At Varun, we provide customized solutions that suit your performance and delivery requirements every time.

Incoloy 825 Sheets Dealer in Dubai, Incoloy 2.4858 Plates Supplier in Dubai, Incoloy 825 Sheets in Ras Al Khaimah, 825 Incoloy Plates Size Chart, Incoloy 825 Sheet Price in Ajman, Incoloy 825 Plates Supplier in Jebel Ali, 825 Incoloy Sheet Stockist in Al Ain, 825 Incoloy Alloy Sheets and Plates Exporter in UAE, Incoloy 825 Sheet Stockist in Dubai, Incoloy Plates Supplier in Al Ain

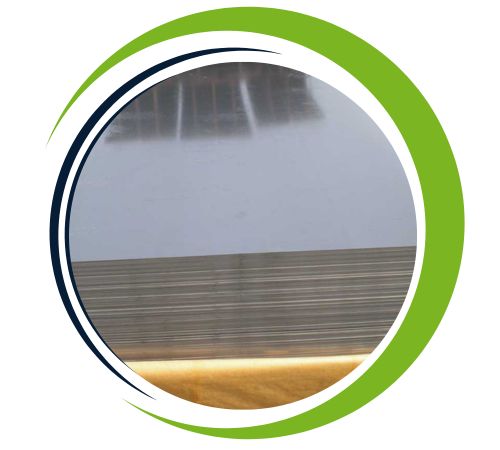

Incoloy 825 Cold Rolled Plates

Incoloy 825 Hot Rolled Plates

Incoloy 825 Clad Sheets and Plate

Incoloy 825 Sheets and Plates consist mainly of nickel (38–46%), iron (22%), and chromium (19.5–23.5%), with additions of molybdenum, copper, and titanium. This material has very good resistance to phosphoric and sulfuric acids, pitting, and crevice corrosion. The alloy has a tensile strength of approximately 585 MPa and yield strength of 220 MPa, with fair ductility and toughness. Incoloy 825 Sheets and Plates—flat-rolled metal products characterized by their high strength, resistance to corrosion, and versatility in chemically aggressive, high-temperature environments.

Incoloy 825 Sheets and Plates Specification

Specifications:	ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443
Thickness:	4 mm To 100 mm
Length:	2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm，or as required
Width:	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,or as required
Grade	800/ 800H/ 800HT/ 825
Application	Building industry,architectural decoration,elevators,building doors,panels and so on.
Standard:	ASTM，AISI，JIS，GB， DIN，EN
Surface:	BA，2B，NO.1，NO.4，4K，HL，8K
Certification:	ISO, SGS，BV
Technique:	Cold Rolled Hot Rolled
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Sheets, Plates, Coils, Slatting Coils, Perforated Coils

Incoloy 825 Sheet and Plate Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38.00 – 46.00	19.50 – 23.50	0.02 max	0.06 – 1.20

Alloy 825 Sheet and Plate Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %

Equivalent Grades for 825 Incoloy Sheet and Plates

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo	XH38BT

825 Incoloy Sheets Price in Ajman, 825 Incoloy Hot Rolled Weight Chart, Incoloy N08825 Cold Rolled Supplier in Jebel Ali, Stockist of Incoloy 825 Alloy Cold Rolled Sheets in Al Ain, 825 Incoloy Perforated Sheet Supplier in UAE, Incoloy 825 Perforated Plates Price List in Dubai, Alloy Perforated Plates Supplier in Al Ain, Incoloy 825 Chequered Plates Exporter in Dubai, Incoloy Alloy 825 Polished Plates Exporter in UAE, 825 Incoloy Perforated Plates Exporter in Ras Al Khaimah, 825 Incoloy Sheet and Plate in Ajman

Weight Chart of 825 Incoloy Alloy Sheets and Plates

Thickness	Plate Weight per Unit Area	Density
3/16 inches	0.06000 lbs/in²42.184176 kg/m²	0.315 lbs/in³8.72 g/cm³
1/4 inches	0.08 lbs/in²56.245568 kg/m²	0.315 lbs/in³8.72 g/cm³
3/8 inches	0.121 lbs/in²85.0714216 kg/m²	0.315 lbs/in³8.72 g/cm³
1/2 inches	0.161 lbs/in²113.1942056 kg/m²	0.315 lbs/in³8.72 g/cm³
5/8 inches	0.196 lbs/in²137.8016416 kg/m²	0.315 lbs/in³8.72 g/cm³
3/4 inches	0.235 lbs/in²165.221356 kg/m²	0.315 lbs/in³8.72 g/cm³
7/8 inches	0.274 lbs/in²192.6410704 kg/m²	0.315 lbs/in³8.72 g/cm³
1 inches	0.313 lbs/in²220.0607848 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/4 inches	0.391 lbs/in²274.9002136 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/2 inches	0.47 lbs/in²330.442712 kg/m²	0.315 lbs/in³8.72 g/cm³
1 3/4 inches	0.549 lbs/in²385.9852104 kg/m²	0.315 lbs/in³8.72 g/cm³
2 inches	0.627 lbs/in²440.8246392 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/4 inches	0.705 lbs/in²495.664068 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/2 inches	0.784 lbs/in²551.2065664 kg/m²	0.315 lbs/in³8.72 g/cm³
2 3/4 inches	0.862 lbs/in²606.0459952 kg/m²	0.315 lbs/in³8.72 g/cm³
3 inches	0.941 lbs/in²661.5884936 kg/m²	0.315 lbs/in³8.72 g/cm³

Incoloy 825 Plate Size

Incoloy 825 Plates STOCKED SIZES
SIZE	ALLOY 825	SIZE
.125″	X	3.18mm
.134″		3.40mm
.156″	X	3.96mm
.187″	X	4.75mm
.250″	X	6.35mm
.312″	X	7.92mm
.375″	X	9.53mm
.500″	X	12.7mm
.625″	X	15.9mm
.750″	X	19.1mm
.875″		22.2mm
1″	X	25.4mm
1.125″		28.6mm
1.250″	X	31.8mm
1.500″	X	38.1mm
1.750″	X	44.5mm
2″	X	50.8mm
2.500″	X	63.5mm
3″		76.2mm

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Incoloy 825 Sheet and Plates Manufacturer and Exporter in Dubai, UAE

Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

DIN 2.4858 Incoloy Clad Sheets Distributor in UAE, 825 Incoloy Perforated Plates Supplier in Dubai, 825 Incoloy Perforated Sheet Weight Chart, Incoloy 825 Plate Exporter in Al Ain, 825 Incoloy Polished Sheets Manufacturer in Dubai, Incoloy 825 Shim Sheet and Plate Price List in Jebel Ali, 825 Incoloy Chequered Plates Sizes in mm, Incoloy Alloy 825 Hot Rolled Plate Distributor in Ras Al Khaimah, 825 Incoloy Sheets and Plates Ajman

Incoloy 825 sheets and plates have many advantages, making them ideal for complex applications. Anti-corrosion properties, especially in acid and sulfur environments, ensure exceptional durability. The high strength and excellent fatigue resistance of the compound ensures reliability under stress. Incoloy 825 maintains high thermal integrity and provides excellent weldability. It also provides outstanding compression resistance against stress corrosion cracking and pitting. These features make Incoloy 825 sheets and plates ideal for use in the pharmaceutical, marine environment, aerospace and nuclear industries, providing unparalleled performance and longevity

Types of Incoloy 825 Sheet and Plates

UNS N08825 Incoloy Plates Manufacturer in Dubai, 825 Incoloy Plates and Sheets Ras Al Khaimah, Incoloy 825 Mirror Finish Plates Supplier in Dubai, 825 Incoloy Polished Plates Exporter in Al Ain, Incoloy 825 Alloy Chequered Plates Price List in Jebel Ali, Incoloy 825 Cold Rolled Plate Distributor in Ras Al Khaimah, 825 Incoloy Clad Plates and Sheets Supplier in Dubai, Incoloy 825 Sheet and Plate Distributor in UAE, 825 Incoloy Perforated Plate Sizes in mm

Are Custom Sizes Available for Incoloy 825 Sheet and Plates?

Yes, we offer custom sizes for Incoloy 825 Sheet and Plates to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@varunplates.ae

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Incoloy 825 Sheet and Plates

Incoloy 825 Plates and Sheets are commonly used in services demanding high resistance to corrosion, particularly against acidic media. In petrochemical and chemical process industries, they are suited for chemical tanks, heat exchangers, and piping systems dealing with phosphoric and sulfuric acids. They work well in seawater service and pollution control systems in marine and offshore environments. They are employed in downhole and subsea equipment by the oil and gas industry. Due to their superior mechanical properties and corrosion resistance, these plates and sheets are also utilized in nuclear fuel reprocessing and acid plants.
