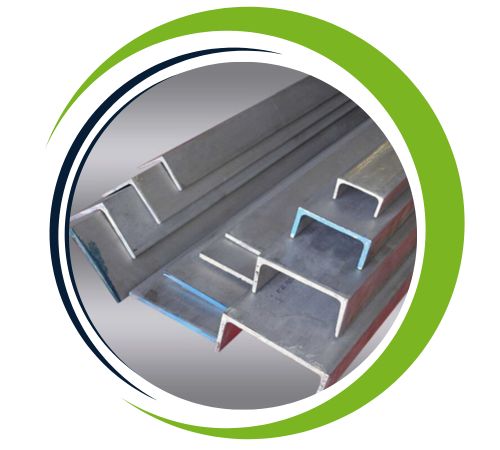

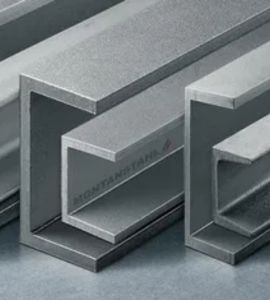

Varun Sheets and Plates, based in Dubai, UAE, is a leading manufacturer and supplier of high-quality metal products, specializing in a wide range of steel applications. Among their top offerings is the Carbon Steel EN Series Channel, designed for superior strength, durability, and reliability in structural and industrial applications. Known for its excellent load-bearing capacity, the EN Series channel is widely used in construction, automotive, and heavy-duty machinery. Varun Sheets and Plates ensures precision manufacturing to meet the diverse needs of their clients.
Carbon Steel EN Series Channel is composed of carbon steel with varying carbon content depending on the specific grade in the EN series. Typically, the carbon content ranges from 0.20% to 0.60%, with alloying elements like manganese (0.60%–1.65%) and trace amounts of phosphorus and sulfur. The mechanical properties include a tensile strength ranging from 350 MPa to 700 MPa, depending on the grade, and a yield strength of 250 MPa to 450 MPa. It also offers good ductility, machinability, and weldability, making it suitable for heavy-duty structural applications.
| Specifications | : | ASTM |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Carbon Steel En Series Angle | : | 5mm to 9mm |
| Carbon Steel En Series Channel | : | 40mm*20mm~300mm*300mm |
| Carbon Steel En Series Beam | : | 3″ thru 12.31″ |
| Carbon Steel En Series Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | ||||||
| C% | Si% | Mn% | Cr% | Mo% | W% | |
| EN-1A | 0.007 TO 0.15 | 0.10 | 0.80 TO 1.00 | S | P | – |
| 0.20 TO 0.30 | 0.70 MAX | |||||
| EN-8 | 0.35 TO 0.45 | 0.05 TO 0.30 | 0.60 TO 1.00 | S | P | – |
| 0.06 MAX | 0.06 MAX | |||||
| EN-9 | 0.50 TO 0.60 | 0.05 TO 0.30 | 0.5 TO 0.80 | – | – | – |
| EN-19(V 320) | 0.35 TO 0.45 | 0.10 TO 0.30 | 0.5 TO 0.80 | 0.90 TO 1.40 | 0.20 TO 0.40 | |
| EN-24(V 130) | 0.35 TO 0.45 | 0.10 TO 0.35 | 0.45 TO 0.70 | 0.90 TO 1.40 | 0.20 TO 0.35 | NI |
| 1.3 TO 1.8 | ||||||
| EN-31 R-100 | 0.90 TO 1.20 | 0.10 TO 0.35 | 0.30 TO 0.75 | 1.00 TO 1.60 | – | – |
| EN-36C E-200 | 0.12 TO 0.18 | 0.10 TO 0.35 | 0.30 TO 0.60 | 0.60 TO 1.10 | – | NI |
| 3.0 TO 3.75 | ||||||
| EN-42 | 0.70 TO 0.85 | 0.10 TO 0.40 | 0.55 TO 0.75 | – | – | – |
| EN-44 | 0.90 TO 1.20 | 0.30 | 0.45 TO 0.70 | – | – | – |
| EN-45 F-110 | 50 TO 0.60 | 1.5 TO 2.0 | 0.70 TO 1.00 | – | – | – |
| EN-351 | 0.10 TO 0.20 | 0.35 | 0.60 TO 1.00 | 0.40 to 0.80 | 0.08 to 0.10 | NI |
| 0.60 TO 1.00 | ||||||
| EN-353 | 0.10 TO 0.20 | 0.35 | 0.50 TO 1.00 | 0.75 TO 1.25 | 0.08 to o.15 | NI |
| 1.00 TO 1.50 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Carbon Steel EN Series Channel offers several advantages, including high strength, durability, and excellent load-bearing capacity, making it ideal for structural applications. Its versatile mechanical properties allow for easy fabrication, welding, and machining, ensuring suitability for a wide range of industries, from construction to manufacturing. The channel’s resistance to wear and corrosion further extends its lifespan, making it a cost-effective solution for long-term projects. Additionally, the EN Series Channel’s availability in various grades ensures it can meet specific strength and performance requirements, offering reliable and efficient solutions in demanding environments.
Yes, we offer custom sizes for Carbon Steel EN Channel to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Grade | HEAT TREATMENT | CORRESPONDING SPECIFICATION | |||||
| Hardening Temperature | Quenching Medium | Tempering Temperature | Brinell Rock well hardness | JAPAN JIS | AISI | POLDI THREAD | |
| EN-1A | – | – | – | – | – | – | – |
| EN-8 | 750-900 | OIL | 150-200 | ||||
| EN-9 | 850-900 | OIL | 200-250 | 55-60 | |||
| EN-19 (V 320) | 900-950 | OIL | 200-225 | 45-55 | SCM 4 | 4140 | |
| EN-24 (V 130) | 830-860 | OIL | 540-680 | 45-55 | SNCM 8 | 4340 | |
| EN-31 R-100 | 820-860 | OIL | 180-225 | 59-65 | |||
| EN-36C E-200 | 780-860 | OIL | 170-210 | 61-63 | SNC 22 | 3415 | |
| EN-42 | 600-700 | DIRECT HARDENING | 40-45 | ||||
| EN-44 | 650-750 | OIL | 150 | 45-50 | |||
| EN-45 | 830-860 | OIL | 470-520 | 50-55 | 9255 | ||
| EN-351 | 850-860 | OIL | 175-200 | 62-64 | |||
| EN-353 | 840-870 | OIL | 150-200 | 62-64 | |||
Carbon Steel EN Series Channel is widely used in structural and industrial applications. It is commonly employed in the construction of buildings, bridges, and heavy machinery, where strength and durability are crucial. The channel is ideal for supporting and reinforcing structures in commercial and residential projects. It is also used in the automotive industry for chassis, beams, and frame components. Additionally, Carbon Steel EN Series Channels are used in the manufacturing of equipment, storage racks, and conveyor systems, offering versatility and reliability in various sectors.
