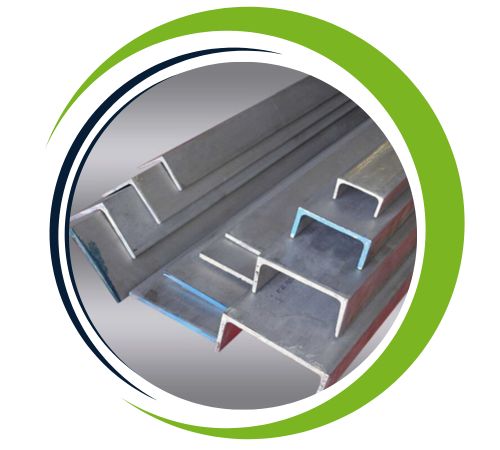

Varun Sheets and Plates, based in Dubai, UAE, is a trusted manufacturer and supplier of premium metal products, specializing in a wide range of applications across industries. One of their top offerings is the Carbon Steel AISI 1045 Channel, known for its excellent strength, hardness, and wear resistance. This channel is ideal for structural, automotive, and industrial applications, providing long-lasting durability and performance. Varun Sheets and Plates ensures that every AISI 1045 Channel is produced to the highest standards of quality, meeting specific customer requirements.
Carbon Steel AISI 1045 Channel is composed of approximately 0.43%–0.50% carbon, 0.60%–0.90% manganese, and small amounts of phosphorus and sulfur. The high carbon content enhances its strength and hardness, making it suitable for demanding applications. Its mechanical properties include a tensile strength of 570 MPa, a yield strength of 310 MPa, and an elongation of 16%–18%. AISI 1045 Channel also exhibits good machinability, hardness, and wear resistance. Its strength and durability make it ideal for structural, automotive, and industrial applications requiring high load-bearing capacity.
| Specifications | : | AISI A1045 |
| Dimensions | : | EN, DIN, JIS, AISI, BS, ASME, AISI |
| Carbon Steel AISI 1045 Angle | : | 5mm to 9mm |
| Carbon Steel AISI 1045 Channel | : | 40mm*20mm~300mm*300mm |
| Carbon Steel AISI 1045 Beam | : | 3″ thru 12.31″ |
| Carbon Steel AISI 1045 Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | Mn | S | C | P | Si | Cr | Ni |
| AISI 1045 | 0.5-0.8 | 0.035 | 0.05-0.42 | 0.035 | 0.17-0.37 | 0.25 | 0.3 |
| Grades | Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min | Hardness |
| AISI1045 | 600 | 40 | 355 | 229 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Carbon Steel AISI 1045 Channel offers several advantages, including high strength, hardness, and wear resistance, making it ideal for heavy-duty applications. Its excellent machinability allows for easy fabrication, enabling precise manufacturing of structural components. The channel’s ability to withstand high loads and resist deformation enhances its performance in demanding environments. With good weldability, AISI 1045 is suitable for various industrial and automotive applications. Its durability and strength make it a cost-effective solution for projects requiring reliable and long-lasting materials, ensuring optimal performance and structural integrity.
Yes, we offer custom sizes for Carbon Steel AISI 1045 Channel to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS |
| AISI 1045 | 1.1191 | G10450 |
Carbon Steel AISI 1045 Channel is widely used in structural and industrial applications requiring high strength and durability. It is commonly employed in the construction of frames, supports, and beams in bridges, buildings, and machinery. In the automotive industry, AISI 1045 channels are used for chassis components, axles, and shafts. Additionally, it is used in manufacturing tools, equipment, and industrial machinery parts, where wear resistance and load-bearing capacity are critical. Its versatility makes it a preferred choice for both heavy-duty and precision applications across various sectors.
