Varun Sheets and Plates stands out as a dependable manufacturer and supplier of Alloy Steel Gr 22 Sheets and Plates in Dubai, UAE. They specialize in high-performance alloy products that are specifically designed for critical industrial applications. These sheets and plates are celebrated for their impressive strength, thermal stability, and resistance to corrosion, making them a go-to choice in sectors like power generation, petrochemicals, and oil & gas. Varun is committed to maintaining top-notch quality by strictly following global standards, ensuring that their products meet the rigorous demands of various operations. With advanced manufacturing capabilities and a focus on client satisfaction, they have earned a reputation as a trusted partner for engineering and industrial supply needs throughout the Middle East.
Alloy Steel Gr 22 Sheets and Plates are crafted from a blend of chromium (2.00–2.50%) and molybdenum (0.87–1.13%) with a foundation of carbon steel, creating a robust combination of strength and oxidation resistance. These alloy plates boast a tensile strength ranging from approximately 415–585 MPa and a yield strength of 205 MPa. Molybdenum enhances their creep resistance and high-temperature strength, while chromium plays a key role in providing corrosion and scaling resistance. Designed for high-temperature service, Alloy Steel Gr 22 is perfect for pressure vessels, heat exchangers, and other structural components that operate in demanding environments.
Alloy Steel Sheets and Plates Specification : ASTM A387 / ASME SA387
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm

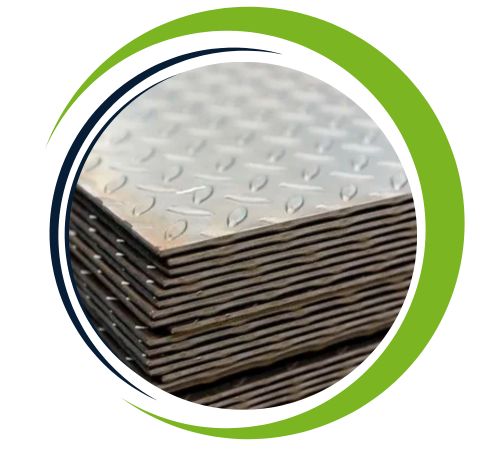

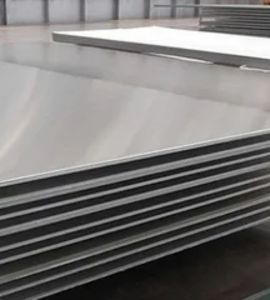

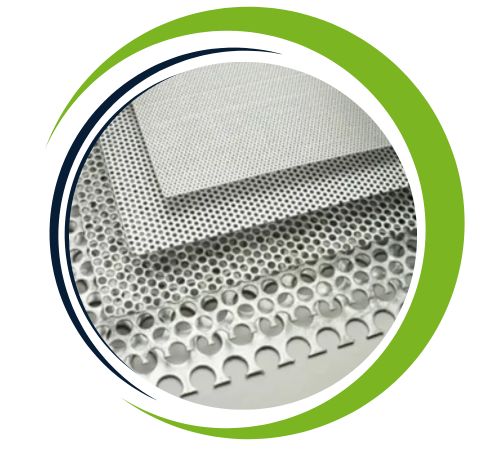

Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| BS | EN | ASTM/ASME | UNS | DIN |
|---|---|---|---|---|
| 621B | – | A387 / SA 387 | K11757 | – |
| C | Mn | P | S | Si | Cr | Mo |
|---|---|---|---|---|---|---|
| 0.04 – 0.15 | 0.25 – 0.66 | 0.035 | 0.035 | 0.5 max | 1.88 – 2.62 | 0.85 – 1.15 |
| A387 / SA387 Grade 22 | Class 1 | Class 2 |
|---|---|---|
| Tensile Strength (ksi) | 60-85 | 75-100 |
| Tensile Strength (MPa) | 415-585 | 515-690 |
| Yield Strength (ksi) | 30 | 45 |
| Yield Strength (MPa) | 205 | 310 |
| Elongation in 200mm (%) | – | – |
| Elongation in 50mm (%) | 18 | 18 |
| Reduction of area in % | 45 | 45 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Alloy Steel Gr 22 Sheets and Plates offer numerous advantages, including excellent resistance to high temperatures, oxidation, and corrosion, making them ideal for harsh environments. Their superior tensile and yield strength ensure durability under heavy loads and pressure. Enhanced creep resistance and toughness allow them to withstand prolonged thermal and mechanical stress, extending their service life in demanding applications. These plates are also versatile, with easy machinability and weldability, facilitating efficient fabrication. Commonly used in power plants, boilers, and pressure vessels, they ensure reliability, safety, and cost-effective performance.
Yes, we offer custom sizes for Alloy Steel Gr 22 Sheets and Plates to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@varunplates.ae
Thanks to their outstanding mechanical and thermal properties, Alloy Steel Gr 22 Sheets and Plates are widely utilized in high-temperature and high-pressure applications. You’ll find them in boiler components, superheaters, heat exchangers, and pressure vessels within power plants. They also play a crucial role in the petrochemical industry, being used in reactors, piping systems, and storage tanks that are exposed to corrosive media and elevated temperatures. Their impressive creep strength and oxidation resistance make them ideal for long-term use in harsh conditions. Additionally, Alloy Gr 22 finds applications in refineries, fertilizer plants, and industrial steam systems.
