One of the top producers and suppliers of high-grade titanium Grade 5 sheets and plates is Varun Sheets and Plates, which has its headquarters in Dubai, United Arab Emirates. We serve the aerospace, medical, marine, and industrial engineering sectors and are renowned for our accuracy, robustness, and customer-focused service. Our Ti-6Al-4V titanium products are prized for their remarkable strength, resistance to corrosion, and portability. We offer materials that adhere to strict international standards, all while maintaining a dedication to quality and performance. Varun Sheets and Plates offers dependable, high-strength solutions designed to withstand demanding operating conditions, whether for crucial structural elements or high-performance machinery.
90% titanium, 6% aluminum, and 4% vanadium make up Titanium Grade 5 (Ti-6Al-4V), which is designed for exceptional performance. This alloy offers solid weldability, high corrosion resistance, and an outstanding strength-to-weight ratio. It has a density of 4.43 g/cm³, a hardness of about 330 Vickers, a tensile strength of 895 MPa, a yield strength of 828 MPa, and an elongation of 10–15%. Titanium Grade 5 is the material of choice for critical applications that demand strength and low weight due to its mechanical properties, particularly in demanding or corrosive environments.
Titanium Sheets and Plates Specification : ASTM B265 / ASME SB265
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm

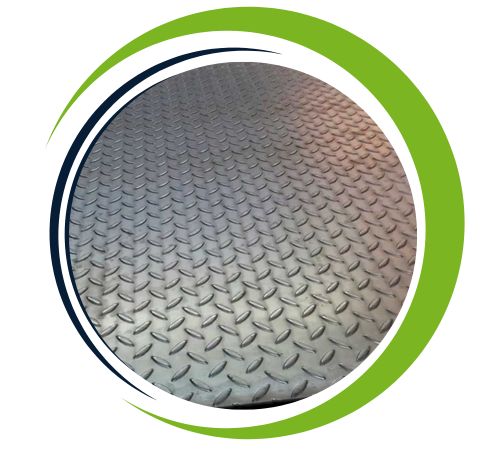

Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | Ti | C | Fe | O | Al | V |
| Titanium Gr 5 | 90 min | – | 0.25 max | 0.2 max | 6 min | 4 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Grade 5 | 3.7165 | N56400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Grade 5 (Ti-6Al-4V) sheets and plates offer exceptional strength-to-weight ratio, making them ideal for aerospace, automotive, and marine applications. They are highly corrosion-resistant, including in seawater and aggressive chemicals, ensuring long-term durability. Their high-temperature resistance allows them to perform in extreme environments. Titanium Grade 5 also boasts excellent fatigue resistance, low thermal expansion, and biocompatibility, making it suitable for medical devices. Additionally, it is lightweight, offering enhanced performance without compromising structural integrity while being easily machinable and weldable for versatile applications.
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in ) |
| .125 | 3.18 |
| .134 | 3.40 |
| .156 | 3.96 |
| .187 | 4.75 |
| .250 | 6.35 |
| .312 | 7.92 |
| .375 | 9.53 |
| .500 | 12.7 |
| .600 | 15.9 |
| .750 | 19.1 |
| .875 | 22.2 |
| 1 | 25.4 |
| 1.125 | 28.6 |
| 1.250 | 31.8 |
| 1.500 | 38.1 |
| 1.750 | 44.5 |
| 2 | 50.8 |
| 2.500 | 63.5 |
| 3 | 76.2 |
Industries that require high strength, low weight, and resistance to corrosion frequently use titanium grade 5 sheets and plates. They are perfect for fasteners, engine parts, and airframes in the aerospace industry. Because of their superior biocompatibility, the medical industry uses them for orthopedic devices, surgical instruments, and implants. They are used in heat exchangers, pressure vessels, and structural elements exposed to corrosive materials in both industrial and marine settings. Their efficiency and durability also benefit the energy, chemical processing, and automotive industries. Performance under both typical and harsh operating conditions is guaranteed by their adaptability.
