Varun Sheets and Plates is a leading manufacturer and distributor of high-performance Rene Foils in Dubai, UAE, catering to industries that require superior heat resistance and toughness under intense conditions. An expert in advanced alloys, Varun offers precision-engineered Rene Foils renowned for their dependability in aerospace, turbine, and high-temperature industrial applications. These foils are manufactured with precision in attention to quality, meeting international standards to provide peak performance. Through a robust supply chain network and dedication to innovation, Varun has emerged as a go-to supplier of superalloy foil solutions in the Middle East and global markets.

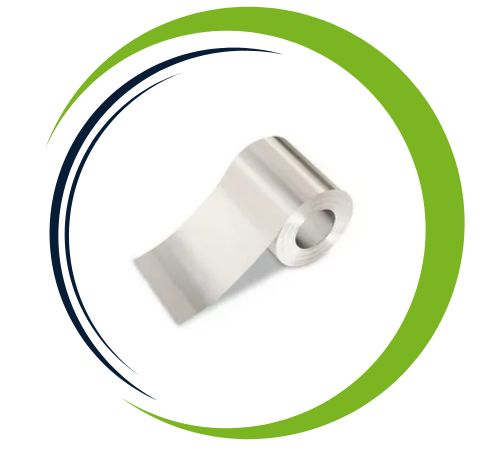

Rene Foil is a nickel-based superalloy with high oxidation resistance at elevated temperatures and is primarily made up of nickel, chromium, cobalt, molybdenum, aluminum, and titanium. It possesses excellent mechanical strength, oxidation resistance, and thermal stability. Standard grades such as Rene 41 or Rene 80 have tensile strengths of over 1000 MPa and possess outstanding creep resistance when used above 980°C (1800°F). These foils have their integrity in hostile environments and hence find applications in demanding structural and sealing purposes in aerospace and gas turbines where thin, hard, and heat-resistant materials are required for high-performance applications.
| Standard Specification : | AMS 5545, AMS 5712, AMS 5713, AMS 5800, EN 2.4973, GE B50T59, GE B50TF109, GE B50TF76, UNS N07041, Werkstoff 2.4973 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | UNS | Workstoff | AMS | GE |
| Rene 41 | N07041 | 2.4973 | AMS 5545, AMS 5712, AMS 5713, AMS 5800 | GE B50TF109, GE B50TF76 |
| Cr | Ni | Mo | Co | Al | Ti | B | C | Fe | Mn | Si | S | Cu | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 18.00 | — | 9.00 | 10.00 | 1.40 | 3.00 | 0.003 | — | — | — | — | — | — |
| MAX | 20.00 | Balance | 10.50 | 12.00 | 1.80 | 3.30 | 0.01 | 0.12 | 5.00 | 0.10 | 0.50 | 0.015 | 0.50 |
| Mechanical & Physical Properties | 21°C | 427°C | 538°C | 649°C | 760°C | 871°C | 982°C |
|---|---|---|---|---|---|---|---|
| Ultimate Tensile Strength /MPa | 1261.7 | – | – | 1117 | 1048 | 710.2 | – |
| 0.2% Yield Strength /MPa | 820.5 | – | – | 765.3 | 751.5 | 579.2 | – |
| Elongation % | 21 | – | – | 14 | 14 | 11 | – |
| Coefficient of Thermal Expansion µm/m⁰C | – | 13.3 | 13.7 | 14.3 | 15.1 | 15.5 | 16.7 |
| Thermal Conductivity /kcal/(hr.m.°C) | – | 14.4 | 16.1 | 17.9 | 19.6 | 21.4 | – |
| Modulus of Elasticity / x105 MPa | – | 2 | 1.93 | 1.79 | 1.72 | 1.65 | 1.52 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Rene 41 foil offers numerous advantages, making it a preferred material for demanding applications. It excels in high-temperature environments, maintaining strength and stability up to 980°C (1800°F). The alloy’s exceptional creep resistance ensures reliability under prolonged stress, while its high tensile strength enhances durability. Rene 41 is also highly resistant to oxidation and corrosion, extending the lifespan of components in harsh conditions. Additionally, its precision and adaptability make it ideal for aerospace, gas turbines, and industrial applications requiring exceptional performance under extreme thermal and mechanical stresses.
Yes, we offer custom sizes for Rene 41 Foil to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
