Phosphorous Bronze Sheets and Plates

Varun Sheets and Plates is a trusted producer and supplier of Phosphor Bronze Sheets and Plates in Dubai, UAE, which offers high-quality, precision-crafted items for various industrial applications. Phosphor Bronze is a copper alloy with tin and trace amounts of phosphorus known for its high strength, corrosion resistance, and fatigue resistance. Varun Sheets and Plates makes sure that all sheets and plates are up to international quality standards so that they can be used for marine, electrical, automotive, and mechanical engineering applications where conductivity and durability are required.

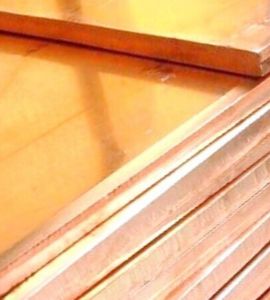

Phosphorous Bronze Plate

Phosphorous Bronze HR Plates

Phosphorous Bronze CR Sheet

ASTM B103 Phosphor Bronze Sheets Dealer in Dubai, Phosphorous Bronze Plates Supplier in Dubai, Phosphorous Bronze Sheets in Ras Al Khaimah, Phosphorous Bronze Plates Size Chart, Phosphorous Bronze Sheet Price in Ajman, Phosphorous Bronze Plates Supplier in Jebel Ali, Phosphorous Bronze Sheet Stockist in Al Ain, Alloy Sheets and Plates Exporter in UAE, Alloy Sheet Stockist in Dubai, Phosphorous Bronze Plates Supplier in Al Ain

Phosphor Bronze usually consists of approximately 88–95% copper, 0.5–11% tin, and up to 0.35% phosphorus. This alloy exhibits superior mechanical characteristics like high tensile strength (up to 550 MPa), elastic behavior, and superior wear and corrosion resistance. The phosphorus improves the strengthening and stiffness of the alloy, and tin enhances corrosion resistance and longevity. Phosphor Bronze is recognized for maintaining its characteristics over a period of time, providing extended service life even in harsh conditions, and is ideally suited for cold working and welding.

Phosphorous Bronze Sheets and Plates Specification

Material	Phosphor Bronze Sheet/Plate
Grade	Alloy 510, Alloy 521, Alloy 519, Alloy 544
Standard	ASTM B103
Size	Thickness 0.1 mm to 50 mm; Width up to 500 mm; Length up to 2000 mm
Surface	Rolling surface, Chemical cleaned, Grinding

Chemical Composition of Phosphorous Bronze Sheets and Plates

Element	Zinc (Zn)	Iron (Fe)	Tin (Sn)	Copper (Cu)	Lead (Pb)	Phosphorous (P)	Nickel (Ni)	Others
%	.00 – .20	.00 – .10	4.50 – 5.50	Balance	.00 – .02	.01 – .40	.00 – .20	.00 – .20

Mechanical Properties Of Phosphorous Bronze Sheets and Plates

Tensile strength	Hardness	Elongation at break	Modulus of elasticity	Izod impact strength	Shear strength
320 – 740 MPa	Brinell : 80 – 225	< 60 %	90 – 120 GPa	62 J m⁻¹	250 – 430 MPa

Electrical Properties of Phosphorous Bronze Sheets and Plates

Electrical resistivity	11-16 µOhmcm
Temperature coefficient	0.00060 – 0.00070 K⁻¹

Phosphorous Bronze Sheets Price in Ajman, Phosphorous Bronze Hot Rolled Weight Chart, Phosphorous Bronze Cold Rolled Supplier in Jebel Ali, Stockist of Phosphorous Bronze Alloy Cold Rolled Sheets in Al Ain, Phosphorous Bronze Perforated Sheet Supplier in UAE, Phosphorous Bronze 2B Finish Plates Price List in Dubai, Alloy Perforated Plates Supplier in Al Ain, Phosphorous Bronze Chequered Plates Exporter in Dubai, Phosphorous Bronze Alloy Polished Plates Exporter in UAE, Phosphorous Bronze Perforated Plates Exporter in Ras Al Khaimah, Phosphorous Bronze Sheet and Plate in Ajman

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Phosphorous Bronze Sheets and Plates Manufacturer and Exporter in Dubai, UAE

Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Thermal Properties of Phosphorous Bronze Sheets and Plates

Melting Point	Thermal Conductivity	Electrical Conductivity 20°C	Coeff. of Thermal Expansion 20-300°C	Specific Heat
1050°C	69 W/m°C	15% IACS	17.8 x 10-6	377 J/Kg°K

Fabrication Properties of Phosphorous Bronze Sheets and Plates

Machinability Rating	Annealing Temperature	Hot formability	Stress Relieving temperature	Cold Formability
20%	675 to 745°C	Limited	200 to 350°C	Excellent

Phosphorous Bronze Sheets and Plates Sizes

Dimensions in mm	Thickness in mm
200 X 150	.2
200 X 150	.25
200 X 150	.3
200 X 150	.4
200 X 150	.5
200 X 150	.8
200 X 150	1

Phosphorous Bronze Sheets and Plates Weight Chart

Size in mm (L * W * T)	Weight in kilogram
2000 * 300 * .5	2.69
2000 * 300 * .6	3.23
2000 * 300 * 1.2	6.46
2000 * 300 * 2	10.75
2000 * 300 * 2.5	13.43
2000 * 300 * 3	16.12

Phosphorous Bronze Clad Sheets Distributor in UAE, Phosphorous Bronze 2B Finish Plates Supplier in Dubai, Phosphorous Bronze Perforated Sheet Weight Chart, Phosphorous Bronze Plate Exporter in Al Ain, Phosphorous Bronze Polished Sheets Manufacturer in Dubai, Phosphorous Bronze Shim Sheet and Plate Price List in Jebel Ali, Phosphorous Bronze Chequered Plates Sizes in mm, Phosphorous Bronze Alloy Hot Rolled Plate Distributor in Ras Al Khaimah, Phosphorous Bronze Sheets and Plates Ajman

Phosphor bronze sheets and plates are made from a small percentage of copper and tin phosphorus, which increases their strength, corrosion resistance and machinability In typical products 90-95% copper, 5-1. 8% tin, 0.01-0 and .35% phosphorus. These alloys exhibit excellent mechanical properties such as high tensile strength (up to 600 MPa), excellent fatigue resistance and low abrasion resistance, especially corrosion resistance in marine and chemical environments, and also high toughness, Because of their high durability and durability, phosphor copper sheets and plates are ideal for precision applications in a variety of industrial applications.

Types of Phosphorous Bronze Sheets and Plates

Phosphorous Bronze Plates Manufacturer in Dubai, Phosphorous Bronze Plates and Sheets Ras Al Khaimah, ASME SB 103 Phosphorous Bronze Plates Supplier in Dubai, Phosphorous Bronze Polished Plates Exporter in Al Ain, Phosphorous Bronze Alloy Chequered Plates Price List in Jebel Ali, Phosphorous Bronze Cold Rolled Plate Distributor in Ras Al Khaimah, Phosphorous Bronze Clad Plates and Sheets Supplier in Dubai, Phosphorous Bronze Sheet and Plate Distributor in UAE, Phosphorous Bronze Perforated Plate Sizes in mm

Are Custom Sizes Available for Phosphorous Bronze Sheets and Plates?

Yes, we offer custom sizes for Phosphorous Bronze Sheets and Plates to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@varunplates.ae

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Phosphorous Bronze Sheets and Plates

Phosphor Bronze Sheets and Plates are extensively applied in applications calling for higher strength, corrosion resistance, and conductivity. In the electrical and electronics sector, they are applied to contacts, connectors, terminals, and springs because of their superior fatigue resistance and conductivity. In marine applications, they are applied to shipbuilding components and underwater fasteners owing to their seawater corrosion resistance. The alloy is utilized in the automotive sector for clutch disks and bearings, as well as in the production of precision instruments, industrial machinery components, and architectural hardware that require a blend of durability, formability, and reliability.
