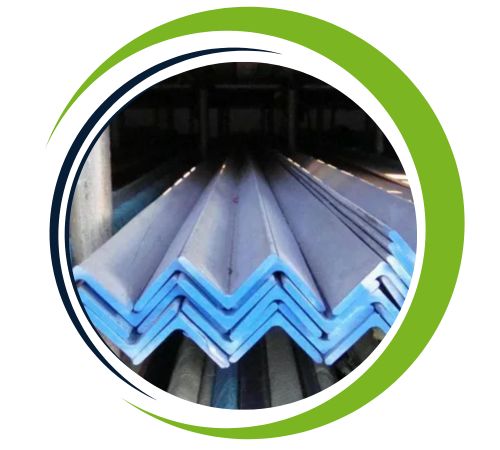

Varun Sheets and Plates is a reliable manufacturer and exporter of premium-quality Inconel 718 Angles in Dubai, UAE. Renowned for providing precision-engineered nickel alloy products, Varun ensures that all materials conform to strict international standards. Our Inconel 718 angles are manufactured through cutting-edge manufacturing processes that ensure superior strength, durability, and corrosion resistance in harsh environments. Servicing multiple industries, Varun supplies sure-fire and high-performance Inconel 718 angles well-suited for exigent structural and mechanical purposes throughout the Middle East and globally.
Inconel 718 Angles consist mainly of nickel (50-55%), chromium (17-21%), iron, niobium, molybdenum, and trace amounts of aluminum and titanium. The unique composition confers high mechanical strength, resistance to creep, and corrosion resistance at high temperatures. Mechanically, Inconel 718 has tensile strength up to 1,270 MPa and yield strength close to 1,040 MPa, along with high toughness and fatigue life. These are ideal for high-stress applications under thermal and corrosive environments.
Specifications : ASTM B637 / ASME SB637
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 718 | 2.4668 | N07718 |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 718 angle offers several advantages, making it highly sought after in demanding industries. Its exceptional high-temperature strength and resistance to oxidation and corrosion make it ideal for use in aerospace, nuclear, and chemical processing applications. The alloy maintains its mechanical properties even in extreme environments, with excellent fatigue and thermal-fatigue resistance. Inconel 718 also exhibits outstanding weldability and formability, allowing for versatile manufacturing processes. Its ability to withstand high-stress conditions and retain structural integrity at elevated temperatures makes it a reliable material for critical components.
Yes, we offer custom sizes for Inconel 718 Angle to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@varunplates.ae
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel 718 Angle Bar (kilogram/meter) | Inconel 718 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel 718 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Inconel 718 Angles are employed extensively in aerospace, power generation, nuclear reactors, and chemical processing applications. They are most suitable for producing structural supports, engine parts, turbine components, and other demanding high-performance engineering applications involving exceptional strength and resistance to corrosion and oxidation. Their superior weldability and formability also contribute to their usability, making Inconel 718 angles crucial for mission-critical components exposed to harsh environments.
