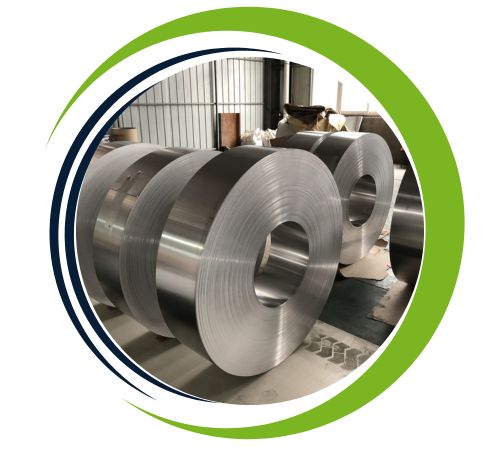

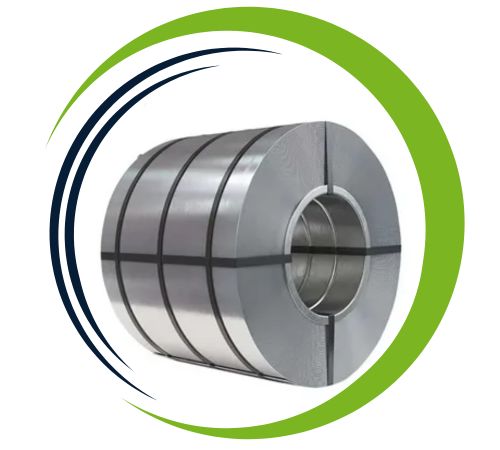

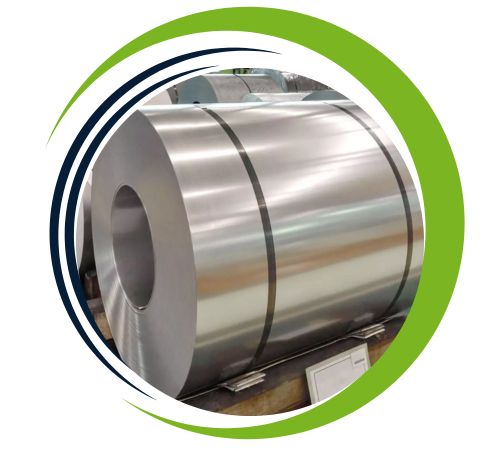

Varun Sheets and Plates is a well-respected manufacturer and supplier of Duplex Steel S32205 Coil and Slitting Coil, proudly based in Dubai, UAE. We specialize in high-quality coils crafted from UNS S32205 duplex stainless steel, which is renowned for its remarkable strength and outstanding resistance to corrosion, particularly against stress corrosion cracking and pitting in environments rich in chlorides. Our coils find extensive applications in the chemical, petrochemical, marine, and desalination sectors. Adhering to standards like ASTM A240, our Duplex S32205 coils come in a variety of sizes and tempers, with precise slitting capabilities tailored to meet the specific needs of our customers both in the UAE and around the globe.
The Duplex Steel S32205 Coil/Slitting Coil features a unique dual-phase microstructure, consisting of roughly equal parts austenite and ferrite. It typically includes 22% chromium, 5–6% nickel, 3% molybdenum, and nitrogen. This specific composition provides it with exceptional yield strength—twice that of conventional austenitic stainless steels—and remarkable resistance to pitting, crevice corrosion, and stress corrosion cracking. The alloy is reliable across a broad temperature range, making it ideal for both structural and corrosive applications.
| Specifications | ASTM A240 / ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 4mm-100mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, hairline, sand blast, Brush, etching, Hot rolled coil (HR), Cold rolled coil (CR), SATIN (Met with Plastic Coated) etc |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form | Coils, Foils, Rolls, Plain Coil, Shim Coil, Strip |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| S32205 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
| TANDARD | WERKSTOFF NR. | UNS |
| S32205 | 1.4462 | S32205 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stocked Sizes | |
|---|---|
Size (in inches) | Size (in mm) |
.125″ | 3.18mm |
.134″ | 3.40mm |
.156″ | 3.96mm |
.187″ | 4.75mm |
.250″ | 6.35mm |
.312″ | 7.92mm |
.375″ | 9.53mm |
.500″ | 12.7mm |
.625″ | 15.9mm |
.750″ | 19.1mm |
.875″ | 22.2mm |
1″ | 25.4mm |
1.125″ | 28.6mm |
1.250″ | 31.8mm |
1.500″ | 38.1mm |
1.750″ | 44.5mm |
2″ | 50.8mm |
2.500″ | 63.5mm |
3″ | 76.2mm |
Duplex steel S32205 coils and slitting coils offers many advantages, including excellent corrosion resistance, especially in high-chloride environments, making it ideal for the marine, chemical, and oil and gas industries Its ferritic and austenitic structure special combination provides high strength, excellent corrosion resistance to cracking and provides improved weldability S32205 boasts improved hardness and resistance to pitting and crevice corrosion compared to standard stainless steel. In addition, it has low thermal expansion and excellent fatigue strength, making it cost-effective for applications requiring high performance and durability under harsh conditions.
Yes, we offer custom sizes for Duplex Steel S32205 Coil/Slitting Coil to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Duplex Steel S32205 Coils and Slitting Coils are essential in scenarios where high strength and corrosion resistance are paramount. They are commonly utilized in pressure vessels, heat exchangers, chemical tanks, piping systems, offshore platforms, and marine components. In the oil and gas sector, these coils excel at managing corrosive fluids in pipelines and processing equipment. Slitted to exact widths, they are also employed in fabrication, structural supports, and welded assemblies. Their impressive mechanical performance, cost-effectiveness, and excellent resistance to aggressive media make them a top choice in challenging industrial environments.
