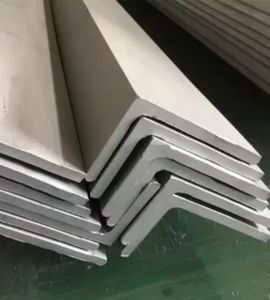

Varun Sheets and Plates is an established Dubai, UAE-based manufacturer and supplier of Duplex Steel S32205 Angles. The company has a reputation for providing long-lasting and corrosion-resistant structural parts, which cater to the requirements of various industrial applications like oil and gas, marine, chemical, and construction. Duplex Steel S32205 Angles are manufactured through modern manufacturing techniques under strict quality inspection, which delivers repetitive performance and extended service life. With an emphasis on strength, reliability, and resistance, Varun Sheets and Plates provides top-notch S32205 Angles for demanding and aggressive structural applications in the UAE and worldwide.
S32205 Duplex Steel Angles consist of around 22% chromium, 5-6% nickel, 3% molybdenum, and nitrogen and have impressive corrosion resistance and high mechanical strength. The duplex microstructure of austenite and ferrite improves stress corrosion cracking resistance and durability. The angles generally provide tensile strength of 620 MPa, yield strength of 450 MPa, and elongation of 25%. Duplex Steel S32205 Angle product is famous for excellent weldability, pitting resistance, and fatigue strength, thus suitable for structural applications under chlorides, acids, and high-pressure exposure.
Specifications : ASTM A182 / ASME SA182
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS |
| Duplex 2205 | 1.4462 | S31803 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Varun Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Duplex Steel S32205 Angles offer several key advantages, including excellent corrosion resistance, particularly against pitting, crevice, and stress corrosion cracking, making them ideal for harsh environments like chemical, marine, and oil industries. With a higher strength-to-weight ratio than standard stainless steels, S32205 provides superior durability while being cost-effective. Its high tensile and yield strength ensures robust performance under pressure, reducing the need for frequent replacements. Additionally, the alloy’s enhanced resistance to oxidation and general corrosion extends its lifespan, offering long-term reliability and reduced maintenance costs in critical applications.
Yes, we offer custom sizes for Duplex Steel S32205 Angle to meet specific project needs. Our team at Varun Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@varunplates.ae
