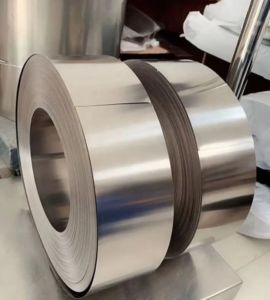

Varun Sheets and Plates is a reputable manufacturer and supplier of Alloy C263 Foil based in Dubai, UAE. They’re well-known for providing high-performance, heat-resistant alloys that are essential for various industrial applications. Focusing on top-quality materials, Varun offers Alloy C263 foils that boast impressive thermal stability, corrosion resistance, and strength even at high temperatures. These foils are meticulously processed to comply with international standards and find extensive use in sectors like aerospace, gas turbines, and power generation. With cutting-edge manufacturing capabilities and a strong dedication to quality and customer satisfaction, Varun has established itself as a reliable source for specialized alloy solutions throughout the Middle East.
Alloy C263 foil is a precipitation-resistant nickel-based superalloy known for its high strength at high temperatures and resistance to oxidation. It includes nickel (balance), cobalt (20%), chromium (20%), molybdenum (6%), aluminum (0.6%), and titanium (2%), with minor amounts of manganese, silicon, and boron – The light-assembly alloy exhibits impressive mechanical properties, with about 790 MPa tensile strength, 485 MPa including yield strength f, with a melting range of 1354°C to 1404°C Widely used in aerospace and industrial applications due to its durability under extreme conditions.
| Standard Specification : | AMS 5872 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | Ni | Co | Cr | Mo | Ti | Fe | Mn | Al | Si | Cu | C | B | S |
| Alloy C263 | 49 | 19-21 | 19-21 | 5.60-6.10 | 1.90-2.40 | 0.70 | 0.60 | 0.60 | 0.40 | 0.20 | 0.040 – 0.080 | 0.0050 | 0.0070 |
| Material | Temp °C | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation % | Hardness HRC |
|---|---|---|---|---|---|
| Alloy C263 Solution Treated (AMS 5872 / BS HR206) | RT | – | – | – | 22.5 max |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | RT | 580 (typical) | 973 (typical) | 39 – | |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | 780 | 403 (min) | 541 (min) | 9 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.359 g/cm3 | 0.302 lb/in3 |
| Melting point | 1300-1335°C | 2372-2471°F |
Alloy C263 foil provides excellent advantages for high temperature applications. It provides outstanding resistance to oxidation and creep, making it ideal for aerospace and industrial applications. The high weldability and formability of the alloy ensures easy fabrication in complex shapes. Its excellent thermal stability and resistance to cracking under thermal cycling enhances reliability in extreme conditions. Additionally, alloy C263 exhibits corrosion and oxidation resistance up to 980°C (1800°F), providing long durability. Its combination of strength, ductility and thermal performance makes it desirable in gas turbines and heat treatment equipment.
You’ll find Alloy C263 Foil in various applications that demand high-temperature resistance and mechanical strength, such as components for aerospace engines, combustion chambers, and turbine hot-section parts. It’s also used in gas turbines for land-based power generation, exhaust ducting, and industrial furnace linings. Thanks to its oxidation resistance and thermal fatigue performance, Alloy C263 is ideal for fabricated rings, sealing elements, and expansion bellows. Its thin and flexible nature makes it suitable for thermal shielding, gaskets, and precision insulation applications where reliability in extreme conditions is crucial.
